Exfo X-Cite 120Q Fluorescence Lamp Illuminator

The X-Cite 120Q delivers rich spectral excitation and uniform wide-field fluorescence illumination to the sample plane. Designed with our proprietary Intelli-Lamp technology for maintaining optimum lamp temperature and automatically accumulating lamp hours, the X-Cite 120Q provides more than 2000 hours of life. Its 120 Watt lamp is pre-aligned allowing a simple, one-step process for replacements. The optional adjustable iris allows the user to set the intensity level of illumination with a built-in 5-step iris to optimize specimen illumination and help minimize photobleaching of fluorophores. The X-Cite 120Q illumination system is ideally suited for routine assays and use in multi-user facilities.

Lamp: Proprietary 120 W Mercury Vapor Short Arc
Lamp Life: 2000 hours guaranteed; 2500 hours typical
Warm-Up Period: 90 seconds (typical)

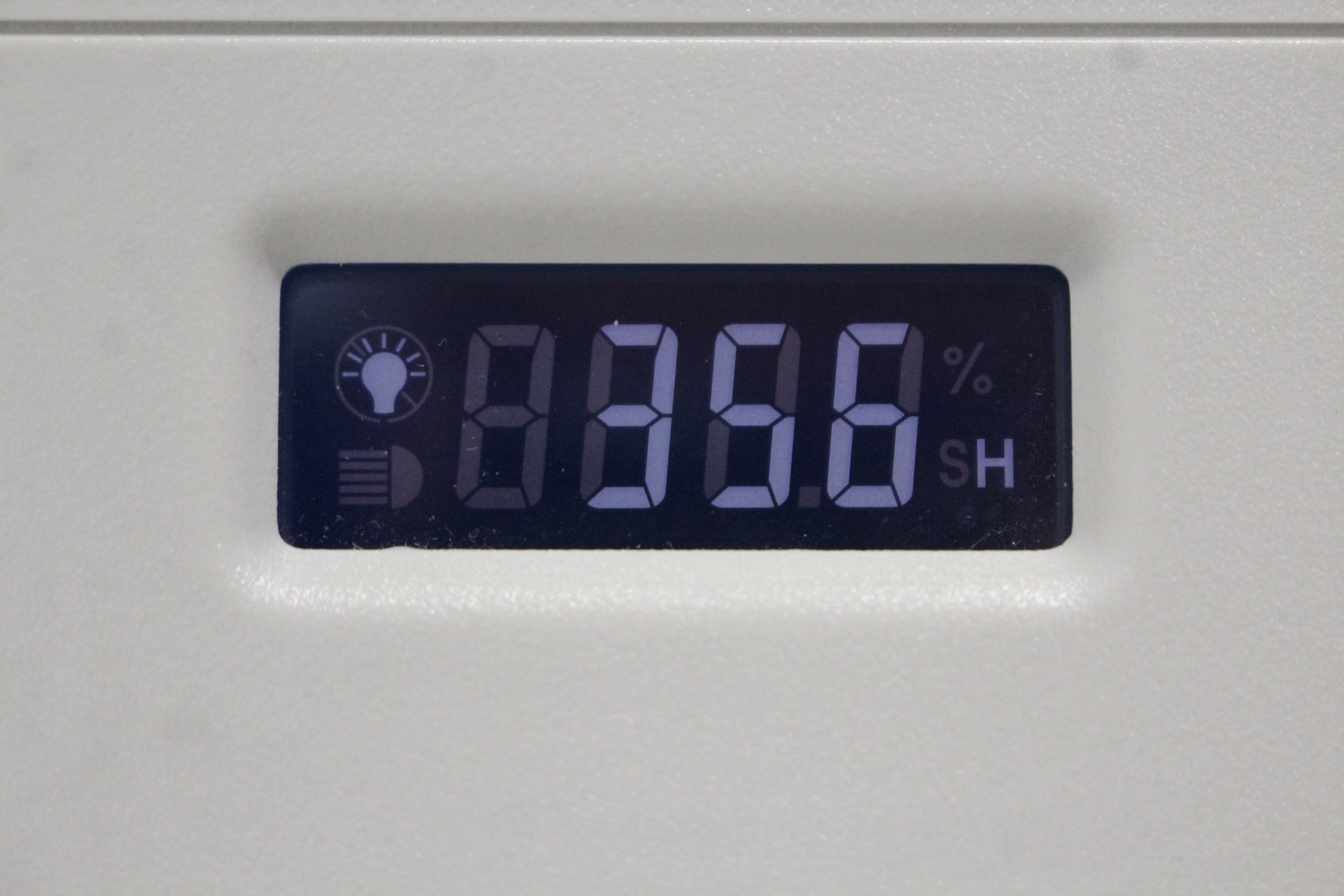

Panel Displays: Accumulated lamp hours, lamp status messages
Dimensions (LxWxH): 345 x 140 x 165 mm
Weight: 3.04 kg
