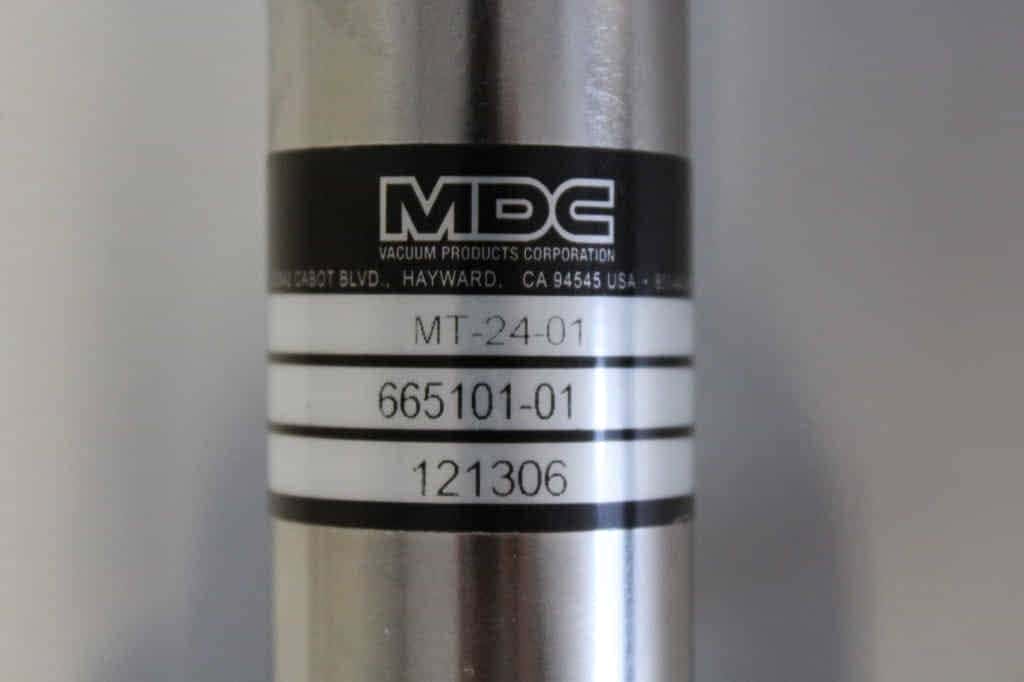

MDC MT-24 Magnetic Transporter

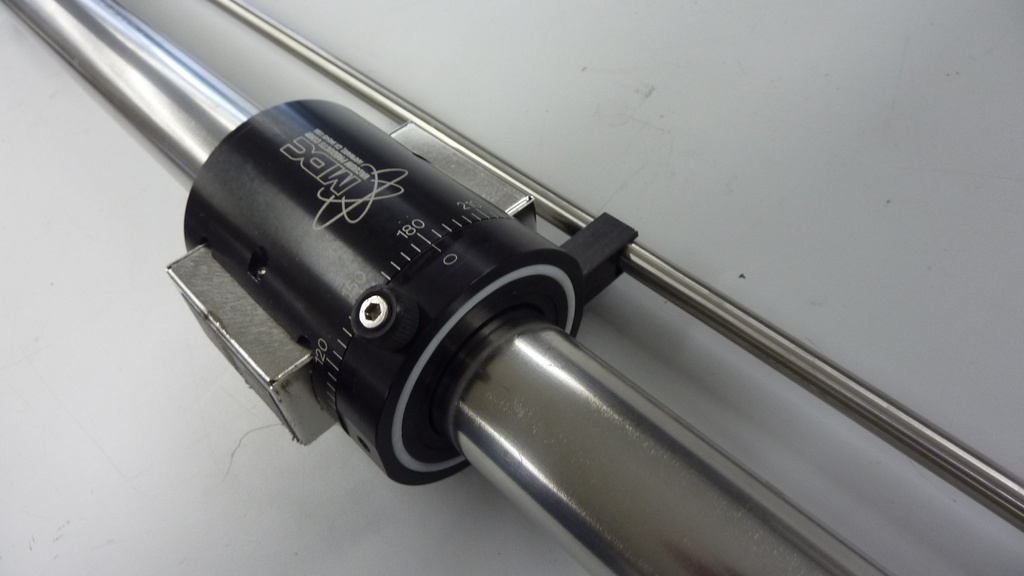

Sample transporters provide manually actuated linear travel and full 360º sample rotation, ideal for transporting samples between vacuum chambers. Linear positioning is controlled by sliding an external sleeve which is magnetically coupled with the transporter’s rod and sample holder inside the system. The shaft is supported with Vespel linear bearings. Linear guide rod is added to this transporter to prevent sample rotation during linear travel. Magnetic transporters accept a complete range of Cab-Fast and Auto- Dock in-vacuum sample handling accessories. Cab-Fast and Auto-Dock sample handlers are specifically designed for use with the transporter.

Vacuum Range 1×10-9 mmHg

Continuous rotary motion when unguided

600mm linear travel

Manual or Motorized linear travel actuator

Rotary position lock when guided

HV compatible materials

Del-Seal CF port mounts
