Agilent 1200 HPLC system

This Agilent 1200 HPLC system is a high-quality and modular chromatography system designed for accurate and reproducible liquid analysis in research, quality control, and analytical laboratories. Thanks to the combination of a quaternary pump, Diode Array Detector (DAD), and a thermostatic column compartment with a switching valve, the system is suitable for a wide range of HPLC methods, from routine quality control to advanced research applications.

The system is well-maintained. Annual preventive maintenance has been performed by certified Agilent Service Engineers. The final maintenance and qualification were performed in July 2026, during which the system successfully passed the inspection (PASS). Configuration

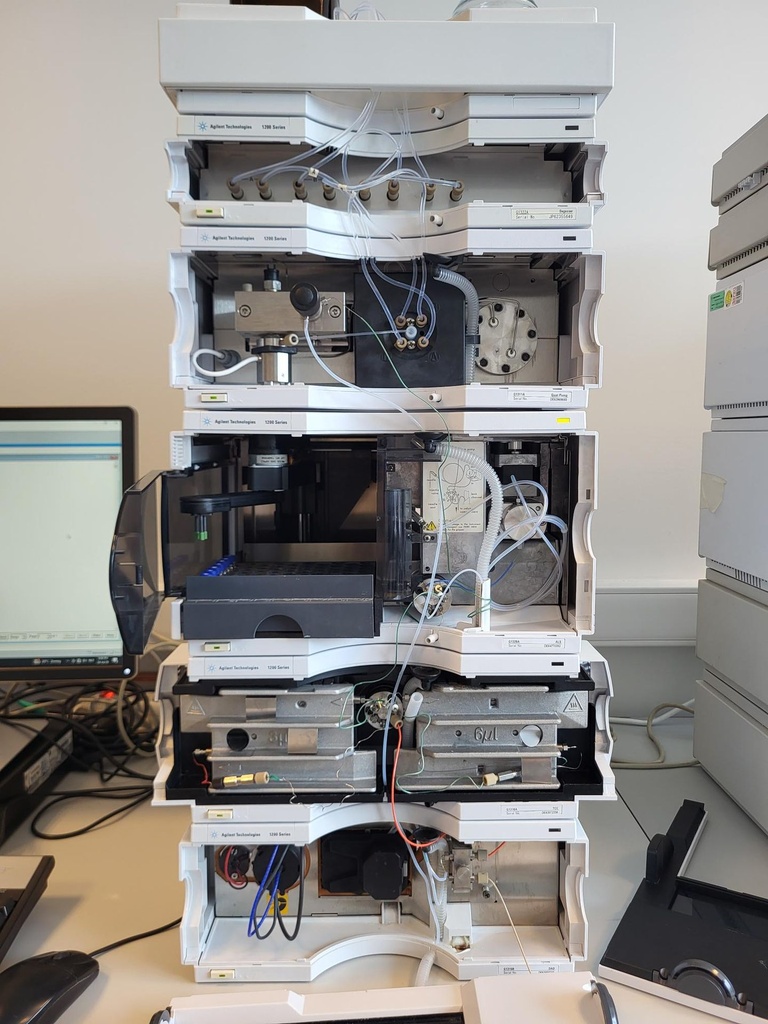

Agilent 1200 Solvent Tray

Agilent 1200 Vacuum Degasser G1322A

Agilent 1200 Quaternary Pump G1311A

Agilent 1200 Series Standard Autosampler G1329A

Agilent 1200 Thermostatted Column Compartment G1316A with integrated switching valve

Agilent 1200 Series Diode Array Detector (DAD) G1315B

PC with Windows 10

Agilent ChemStation CDS software included

Technical specifications

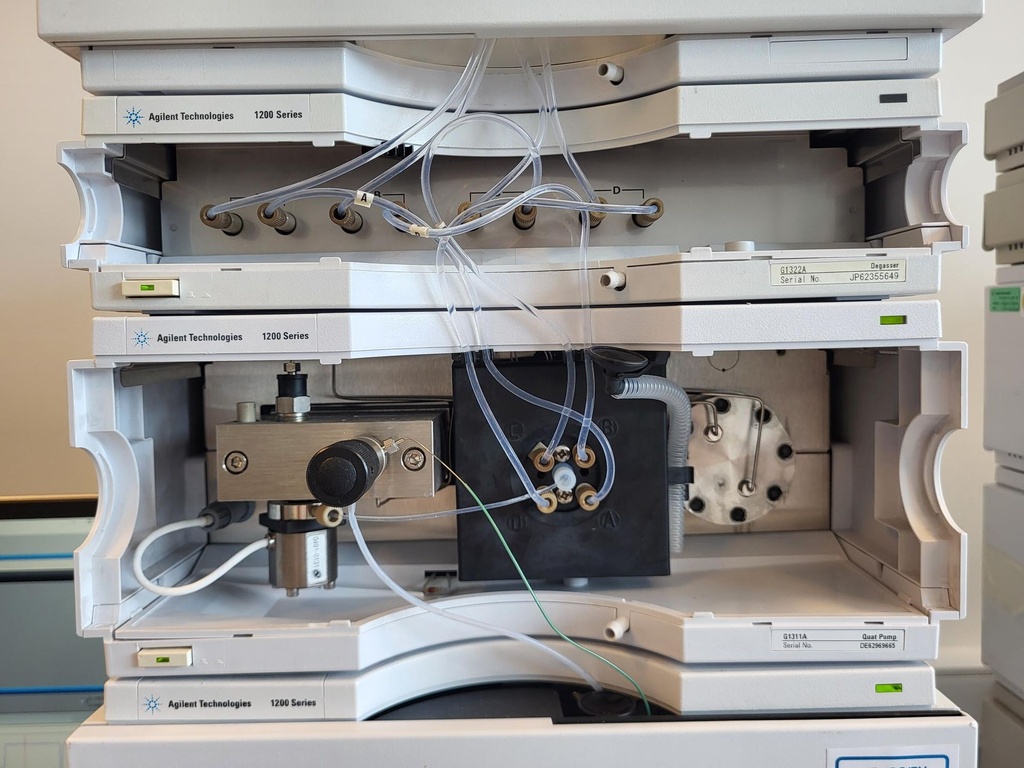

Agilent 1200 Vacuum Degasser G1322A

4-channel vacuum degasser

Removes dissolved gases from the mobile phase

Reduces air bubbles and improves the reproducibility of analyses

Agilent 1200 Quaternary Pump G1311A

Quaternary high-pressure pump

Mixes up to four eluents online

Flow rate range: 0.001 – 10.0 mL/min

Maximum operating pressure: 400 bar

High flow rate accuracy and gradient precision

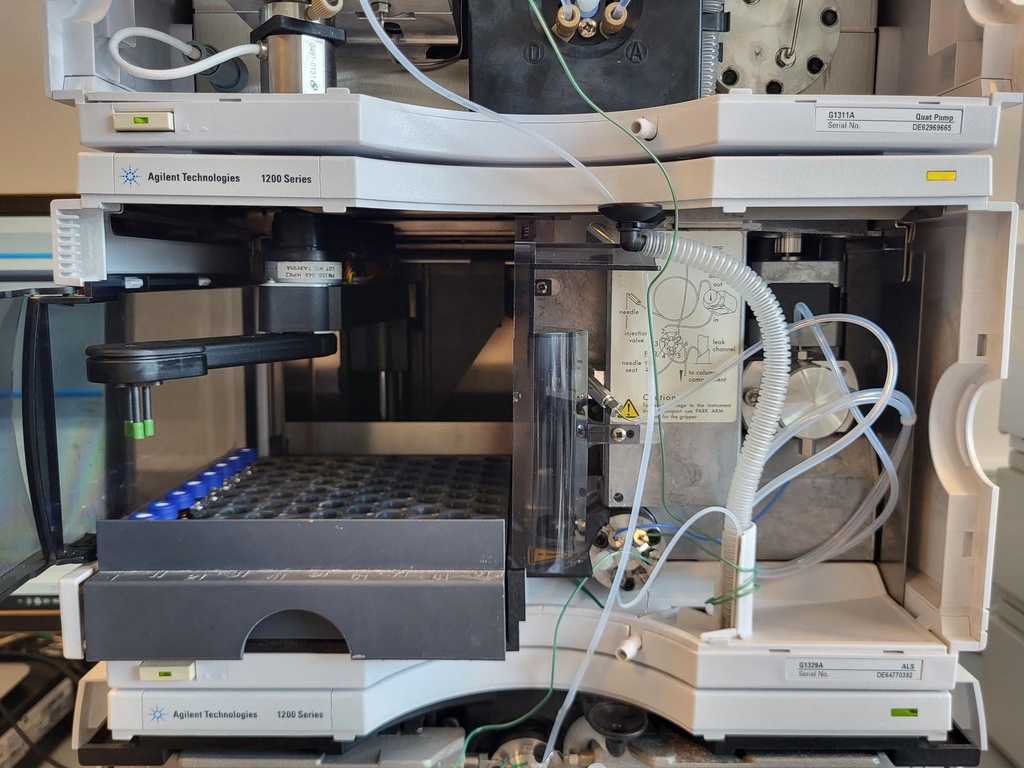

Agilent 1200 Standard Autosampler G1329A

Automatic sample injection

High injection accuracy and reproducibility

Supports standard HPLC vials and various plate sizes (depending on configuration)

Programmable injection volumes

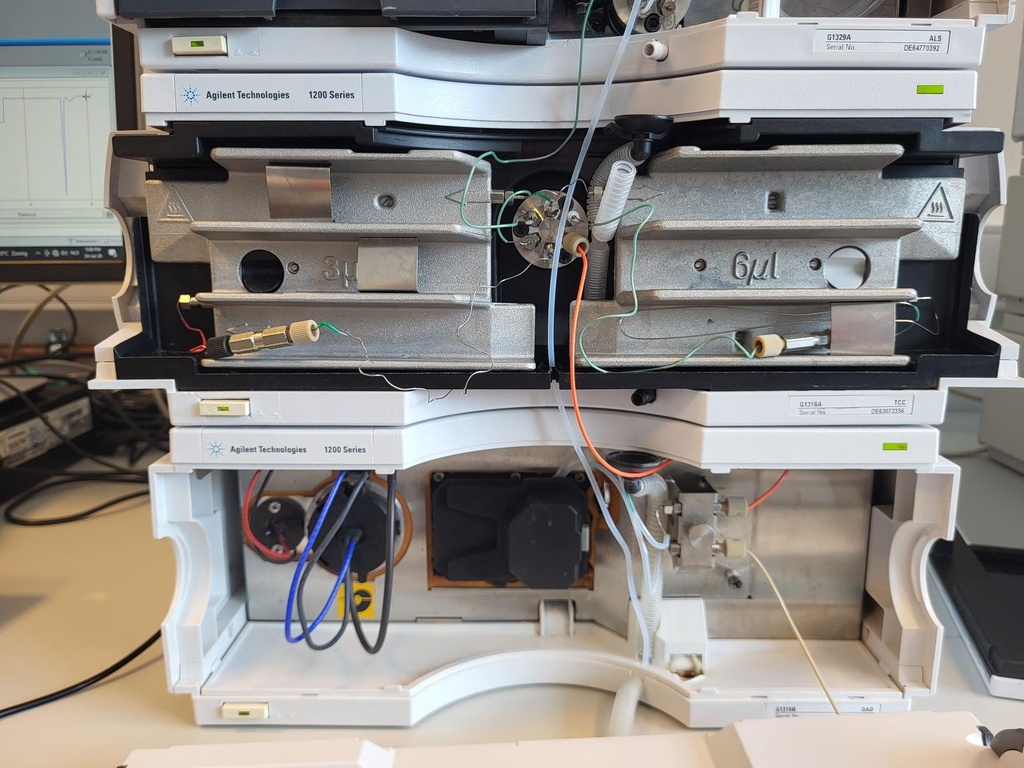

Agilent 1200 Thermostated Column Compartment G1316A

Active temperature control for chromatographic columns

Temperature range: approx. 10 °C above ambient temperature up to 80 °C

Integrated switching valve for advanced chromatographic applications, such as column selection or heart-cutting

Agilent 1200 Diode Array Detector G1315B

UV/VIS Diode Array Detector (DAD)

Spectral range: 190 – 950 nm

Simultaneous detection at multiple wavelengths

Full spectral recording for peak identification and peak purity analysis

High sensitivity and excellent signal stability

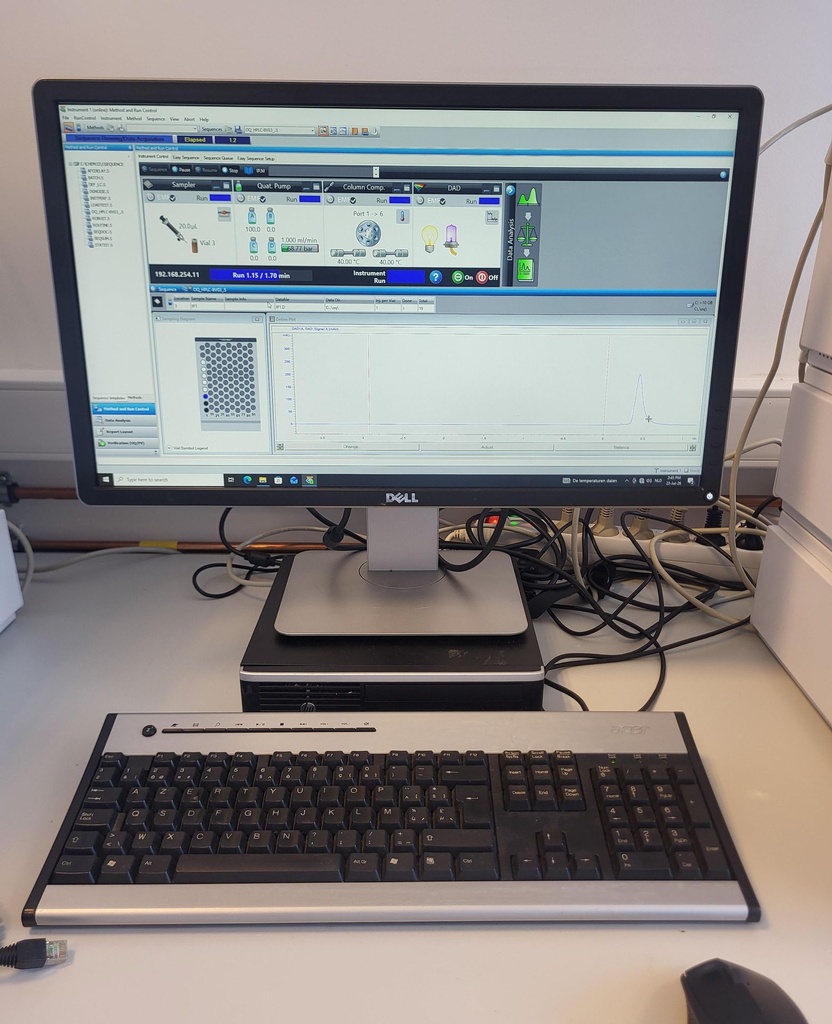

Software

The system is supplied including:

Windows 10 PC

Agilent ChemStation Chromatography Data System (CDS)

This allows methods to be developed, samples to be controlled, chromatograms to be processed, and reports to be generated. General features

Modular Agilent 1200 platform

Suitable for isocratic and gradient analyses

Flexibly expandable with additional Agilent 1200 modules

High reproducibility and reliability

Ideal for pharmaceutical, chemical, food, environmental, and research laboratories

Maintenance

Annually maintained by Agilent Service Engineers

Last maintenance and qualification: July 2026

Status: PASS

This excellently maintained Agilent 1200 HPLC system is ready for immediate use and provides a reliable solution for both routine and advanced chromatographic analyses.
