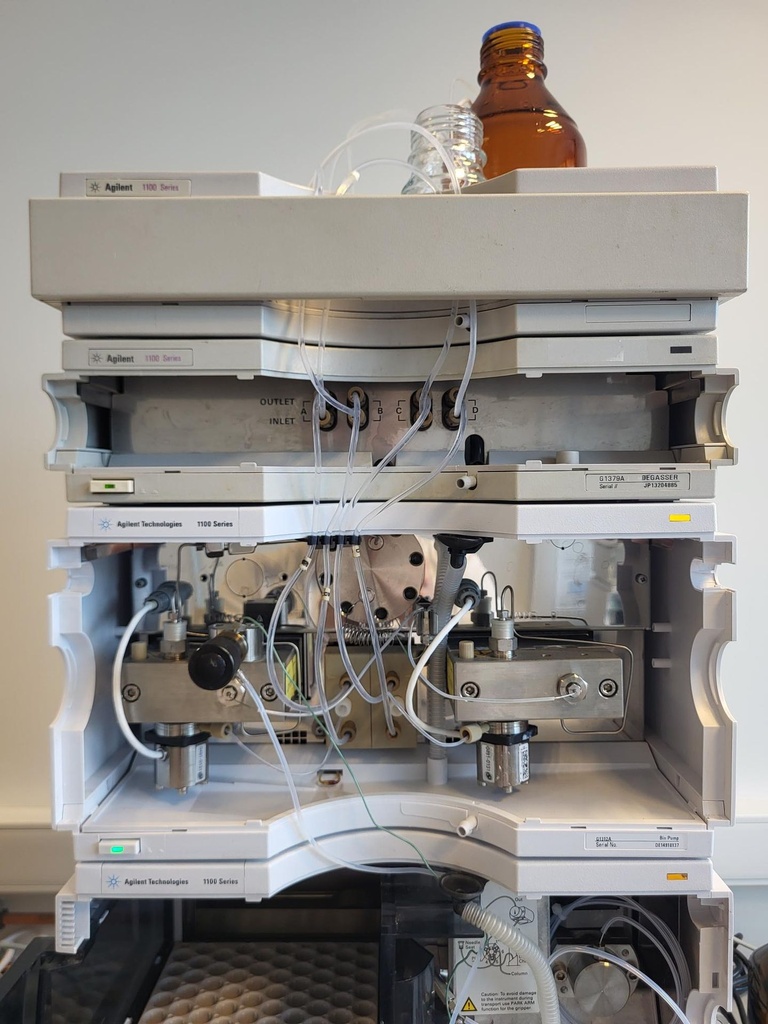

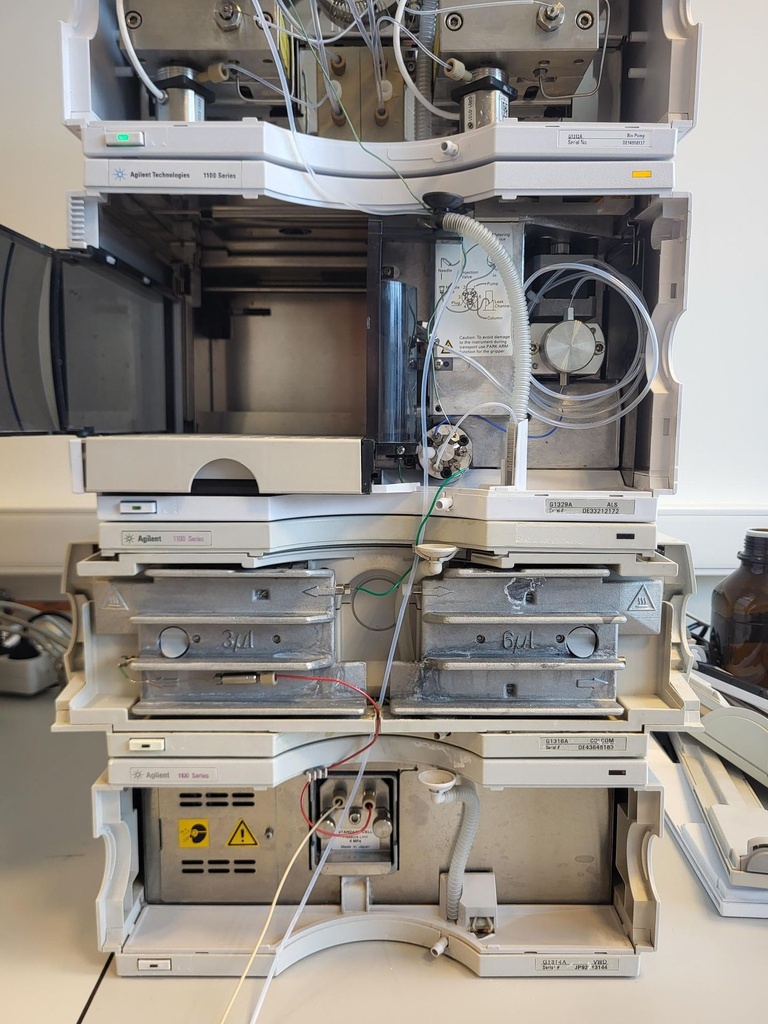

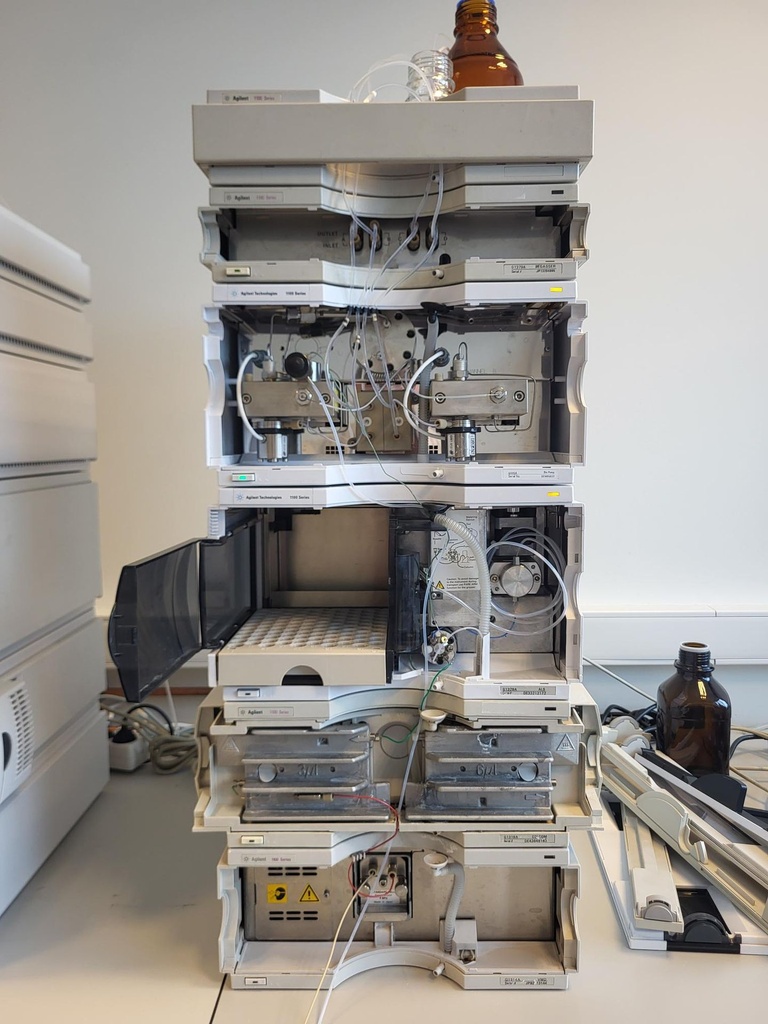

Agilent 1100 HPLC System

This Agilent 1100 HPLC system is a reliable and widely used chromatography system for accurate liquid analysis in research, quality control, and analytical laboratories. Thanks to its modular design, the system is suitable for a wide range of HPLC applications, including pharmaceutical analyses, chemical analyses, environmental research, and food analysis.

The system has been carefully maintained and undergoes annual preventive maintenance by certified Agilent Service Engineers. The last maintenance was performed in July 2026, during which the system successfully passed the service inspection (PASSED). Configuration

Agilent 1100 Solvent Tray

Agilent 1100 Vacuum Degasser G1379A

Agilent 1100 Binary Pump G1312A

Agilent 1100 Standard Autosampler G1329A

Agilent 1100 Thermostated Column Compartment G1316A

Agilent 1100 Variable Wavelength Detector (VWD) G1314A

Technical specifications

Vacuum Degasser G1379A

4-channel vacuum degasser

Reduces dissolved gases and air bubbles in mobile phases

Improves the reproducibility of analyses

Binary Pump G1312A

Binary high-pressure pump

Flow rate range: 0.001 – 10.0 mL/min

Maximum operating pressure: 400 bar

High accuracy and reproducibility for gradient elution

Standard Autosampler G1329A

Automatic sample injection

Programmable injection volume

High injection accuracy and reproducibility

Suitable for standard HPLC vials and microtiter plates (depending on configuration)

Thermostatted Column Compartment G1316A

Active temperature control for chromatographic columns

Temperature range: approx. 10 °C above ambient temperature up to 80 °C

Improves analyte stability and reproducibility

Variable Wavelength Detector G1314A

UV/VIS Variable Wavelength Detector

Wavelength range: 190 – 600 nm

High sensitivity

Suitable for a wide range of analytical applications

General features

Modular Agilent 1100 platform

Reliable and robust HPLC system

Suitable for isocratic and gradient analyses

Expandable with additional Agilent 1100 modules

Compatible with Agilent ChemStation software (depending on the existing license)

Maintenance

Annually maintained by Agilent Service Engineers

Last maintenance: July 2026

Status: PASSED

An excellently maintained Agilent 1100 HPLC system that is ready for immediate use for routine analyses and research applications.
