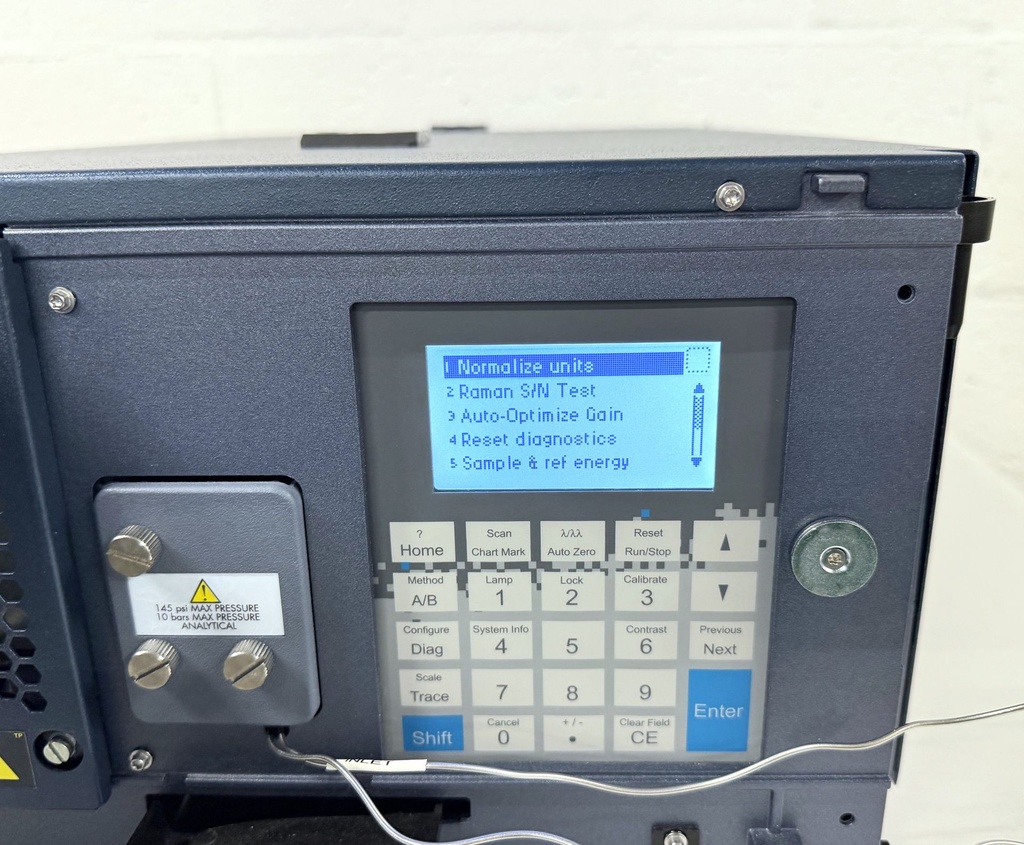

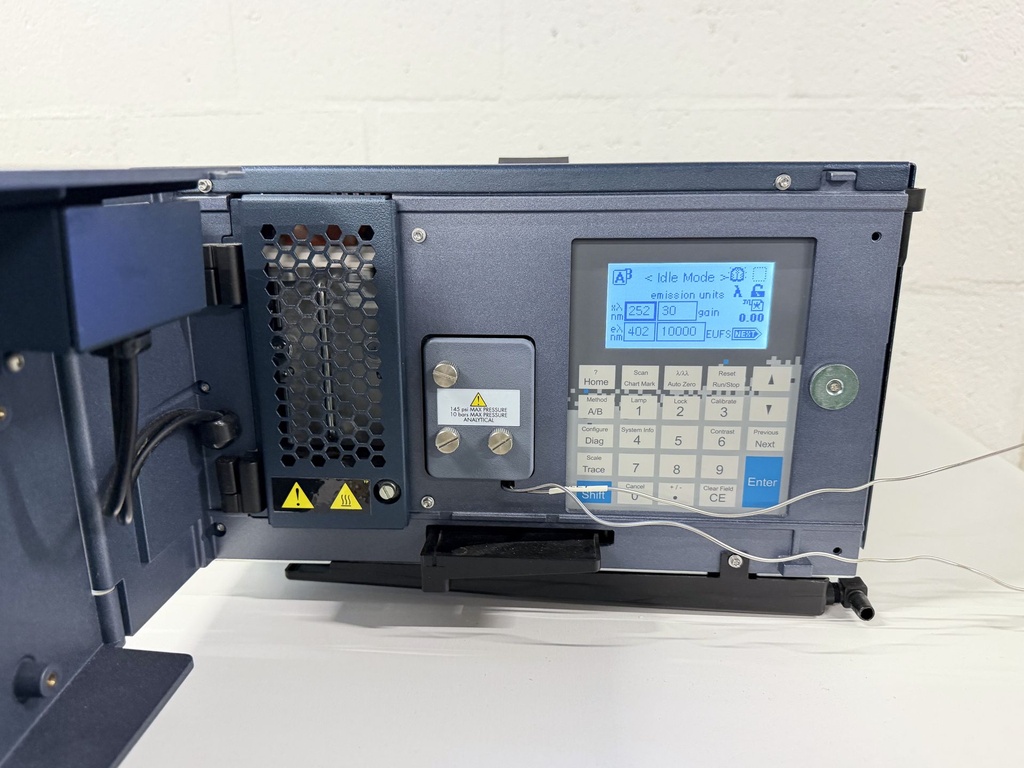

Waters 2475 FLR Fluorescence Detector

Waters 2475 FLR Fluorescence Detector

The Waters 2475 Multi-Wavelength Fluorescence (FLR) Detector is a highly sensitive fluorescence detector for HPLC applications where high sensitivity and selectivity are required. The detector is suitable for quantifying very low concentrations of both naturally fluorescent compounds and compounds equipped with a fluorescent derivatization group.

The 2475 FLR offers various detection capabilities, including 2D, 3D, and on-the-fly spectral scanning. Up to four independent excitation/emission wavelength pairs can be monitored. This makes the detector highly suitable for method development and for complex analytical applications.

An important feature is the axially illuminated flow cell. This design reduces unwanted scattering and dispersion and ensures a high light output. The standard analytical flow cell has a volume of only 13 µL and a maximum pressure of 10 bar (145 psi).

The Waters 2475 is suitable for applications in pharmaceutical research, quality control, food analysis, environmental research, and trace analysis, among others. Technical specifications

Specification Value

Brand Waters

Model 2475 Multi-Wavelength Fluorescence Detector

Type Fluorescence detector (FLR)

Application HPLC

Excitation wavelength 200–890 nm

Emission wavelength 210–900 nm

Bandwidth 20 nm

Wavelength accuracy ±3 nm

Wavelength repeatability ±0.25 nm

Sensitivity S/N water-Raman peak ≥ 1000

Measurement range 0.001–100,000,000 emission units

Data channels Max. 4 × 2D or 1 × 3D

Sampling rate Max. 20 points/s in single-wavelength mode

Sampling rate 3D 1 point/s

Light source 150 W xenon lamp

Flow cell design Axially illuminated

Flow cell volume 13 µL

Maximum flow cell pressure 10 bar / 145 psi

Wetted materials Stainless steel 316, fused silica, Teflon

Power supply 100–240 VAC

Frequency 50–60 Hz

Power 280 VA nominal

Event inputs 4

Outputs 4 (2 analog, 2 event)

Noise level <58 dBA

Operating temperature 4–40 °C

Humidity 20–80%, non-condensing

Weight: 18.1 kg

Dimensions are W × H × D: 34.3 × 20.8 × 61.0 cm.
