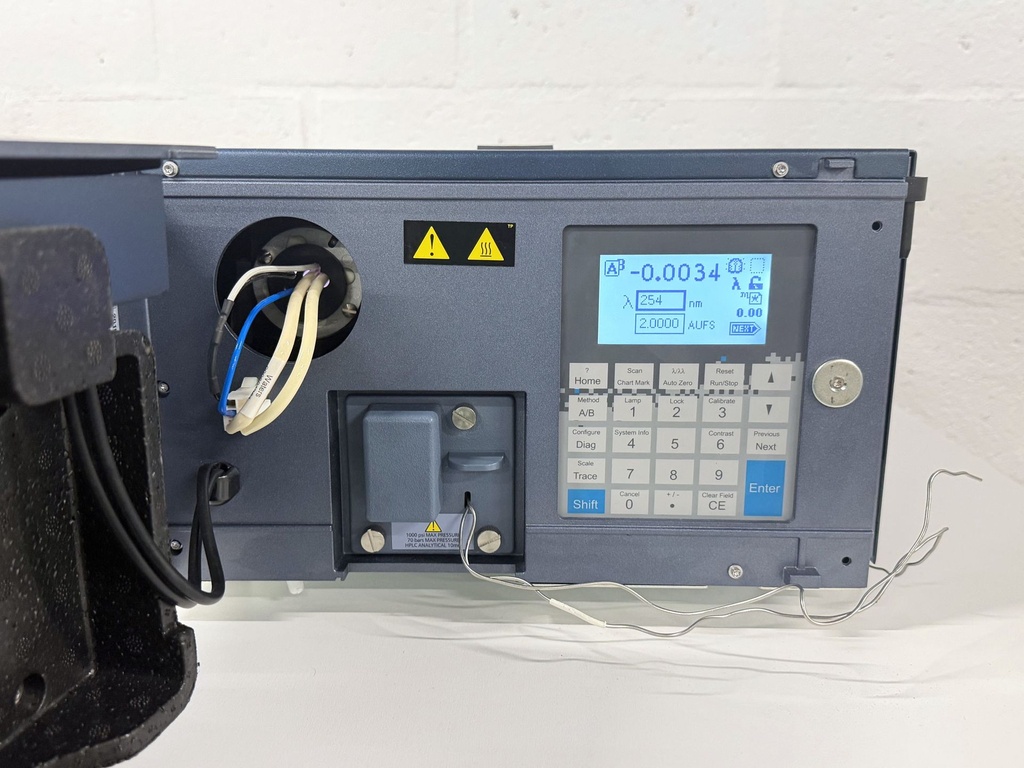

Waters 2489 UV/Visible Detector

Waters 2489 UV/Visible Detector

The Waters 2489 UV/Visible (UV/Vis) Detector is a sensitive and versatile UV/Vis absorption detector for HPLC and UHPLC systems. The detector combines a powerful deuterium lamp with an optimized optical system, low noise, and high data rates for reliable and reproducible chromatographic analyses.

The 2489 can measure simultaneously at two user-selected wavelengths. This allows multiple analytes to be monitored during a single analysis and enables the acquisition of both qualitative and quantitative information. The detector is suitable for both routine HPLC analyses and applications where low detection limits and high sensitivity are important.

The patented TaperSlit™ flow cell ensures efficient light transmission through the flow cell and contributes to low background noise. The standard analytical flow cell has an optical path length of 10 mm, a cell volume of 16.3 µL, and a maximum pressure of 1000 psi. Technical specifications

Specification Value

Brand Waters

Model 2489 UV/Visible Detector

Type UV/Vis absorption detector

Application HPLC / UHPLC

Wavelength range 190–700 nm

Wavelength bandwidth ≤5 nm

Wavelength accuracy ±1 nm

Wavelength repeatability ±0.1 nm

Measuring range 0.0001–4.0000 AU

Linear range ≤5% at 2.5 AU

Sampling rate Up to 80 points/s

Deuterium lamp High-energy deuterium arc lamp

Flowcel TaperSlit™

Optical path length 10 mm

Flow cell volume 16.3 µL

Maximum flow cell pressure 1000 psi

Baseline noise, single wavelength ≤5 × 10⁻⁶ AU peak-to-peak

Baseline noise, dual wavelength ≤35 × 10⁻⁶ AU peak-to-peak

Drift ≤1 × 10⁻⁴ AU/hour

Measurement mode Single and dual wavelength

Data rate 1–80 Hz, depending on measurement mode

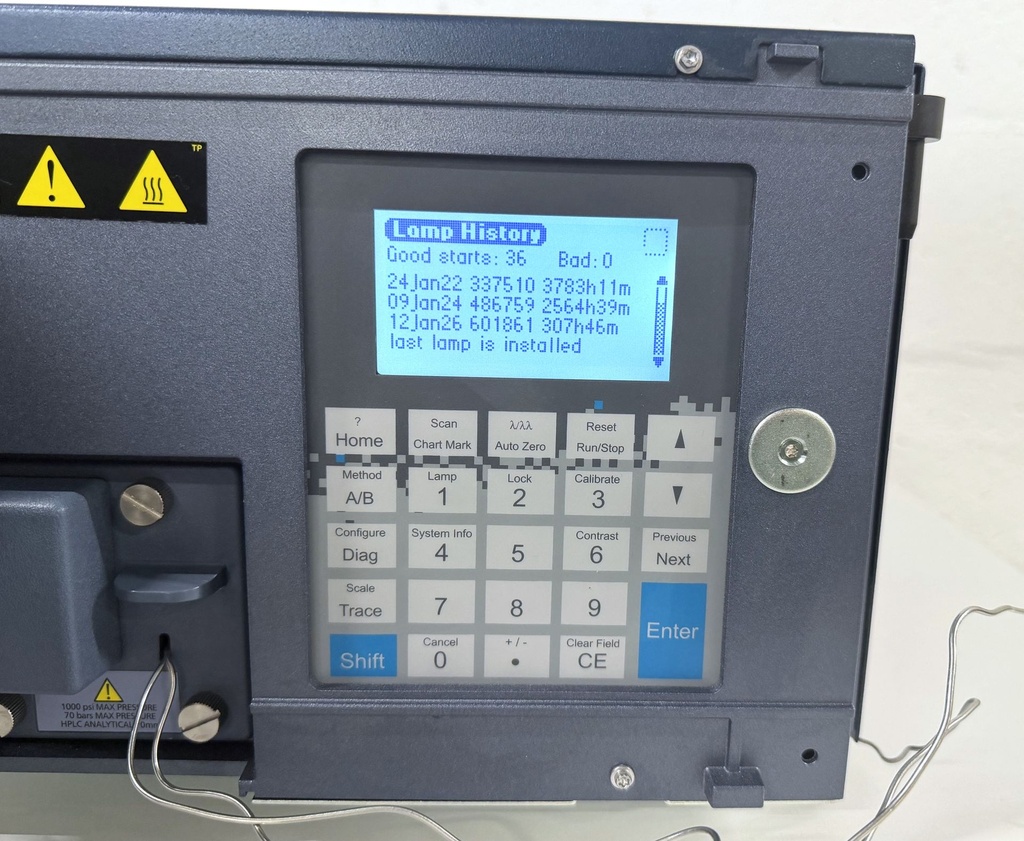

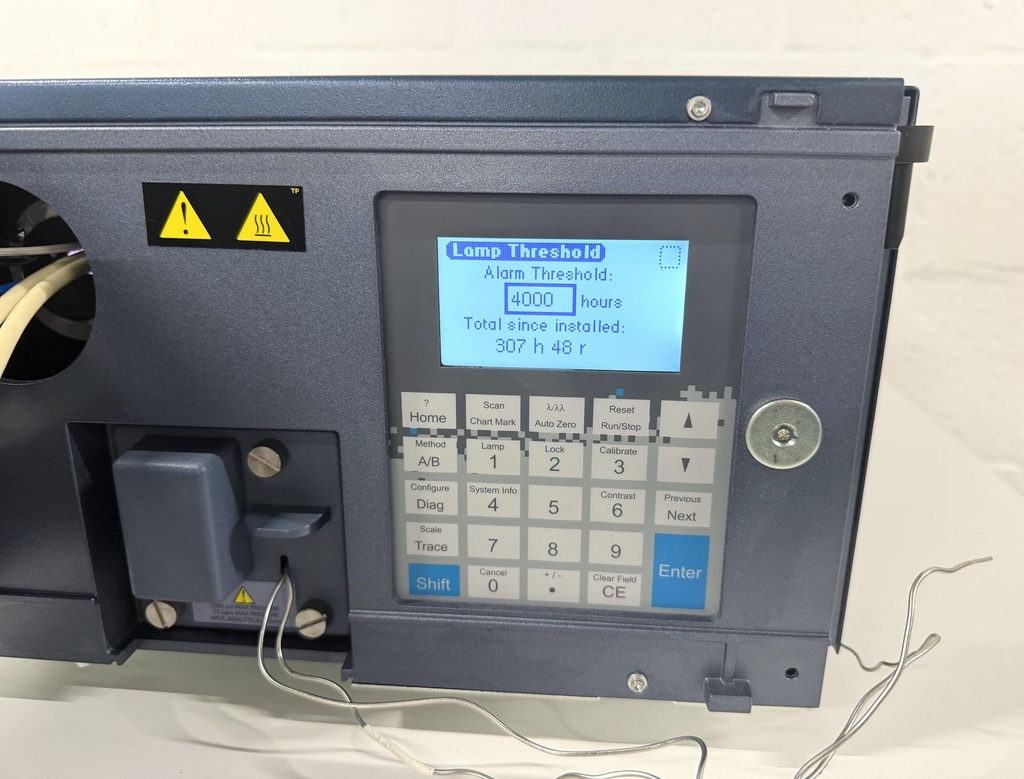

Lamp lifespan 2000 hours or 1 year warranty*

Width: 34.3 cm x Height: 20.8 cm x Depth: 61.0 cm

Weight: approx. 13.8 kg
