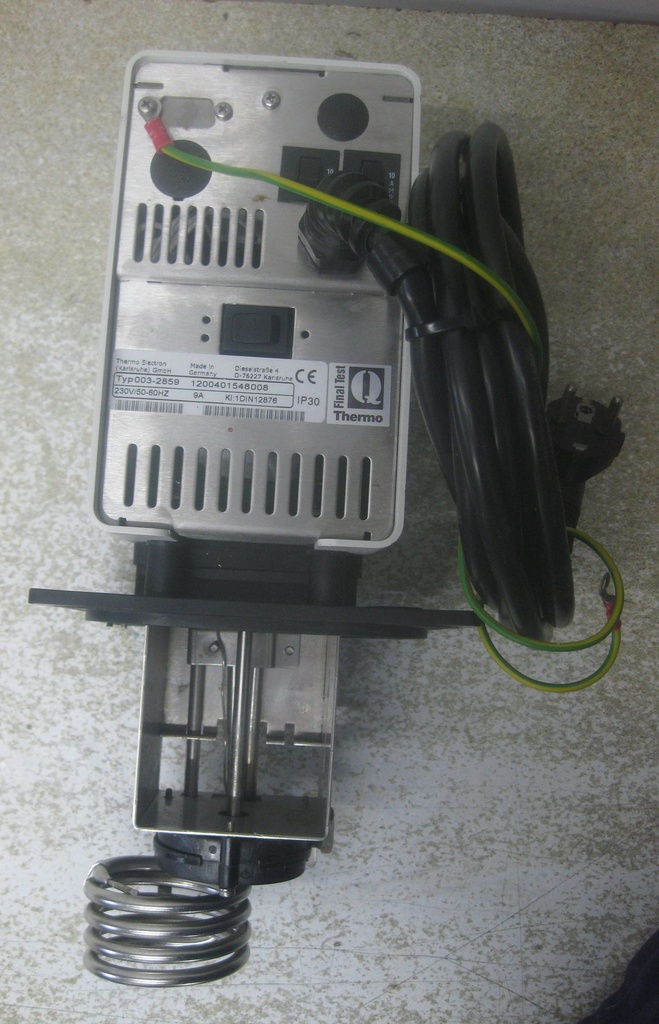

Thermo Haake DC10 Immersion Thermostat

Thermo Haake DC10 Immersion Thermostat 9A

The Thermo Haake DC10 is a high-quality digital immersion thermostat (immersion circulator) for precise temperature control of open water and oil baths in laboratories and industrial applications. The system combines a powerful circulation pump with precise PID temperature control and is suitable for daily laboratory processes where stable temperatures are essential.

The DC10 can be easily mounted on existing baths thanks to the adjustable mounting clamp. The powerful pump ensures excellent temperature uniformity within the bath. Thanks to its robust stainless steel construction and user-friendly operation, the DC10 is popular in research, pharmaceutical, and quality control laboratories. Key features

Digital PID temperature control

Compact immersion thermostat

Suitable for open water and oil baths

Powerful circulation pump

High temperature stability

RTA (Real Temperature Adjustment) function

Over-temperature and dry-running protection

Easy operation via digital display

Robust stainless steel construction

Technical specifications

Specification Value

Model Thermo Haake DC10

Type Immersion Thermostat / Immersion Circulator

Temperature range +25 °C to +100 °C

With external cooling -30 °C to +100 °C

Temperature stability ±0.02 °C

Heating capacity 2.0 kW (230 V)

Pump capacity 17 L/min

Pump pressure 300 mbar

Immersion depth 75 – 145 mm

Display resolution 0.1 / 0.01 °C

Power supply 230 V

Frequency 50/60 Hz

Total power 2050 VA

Dimensions (W × D × H) approx. 100 × 165 × 320 mm

Weight approx. 3 kg
