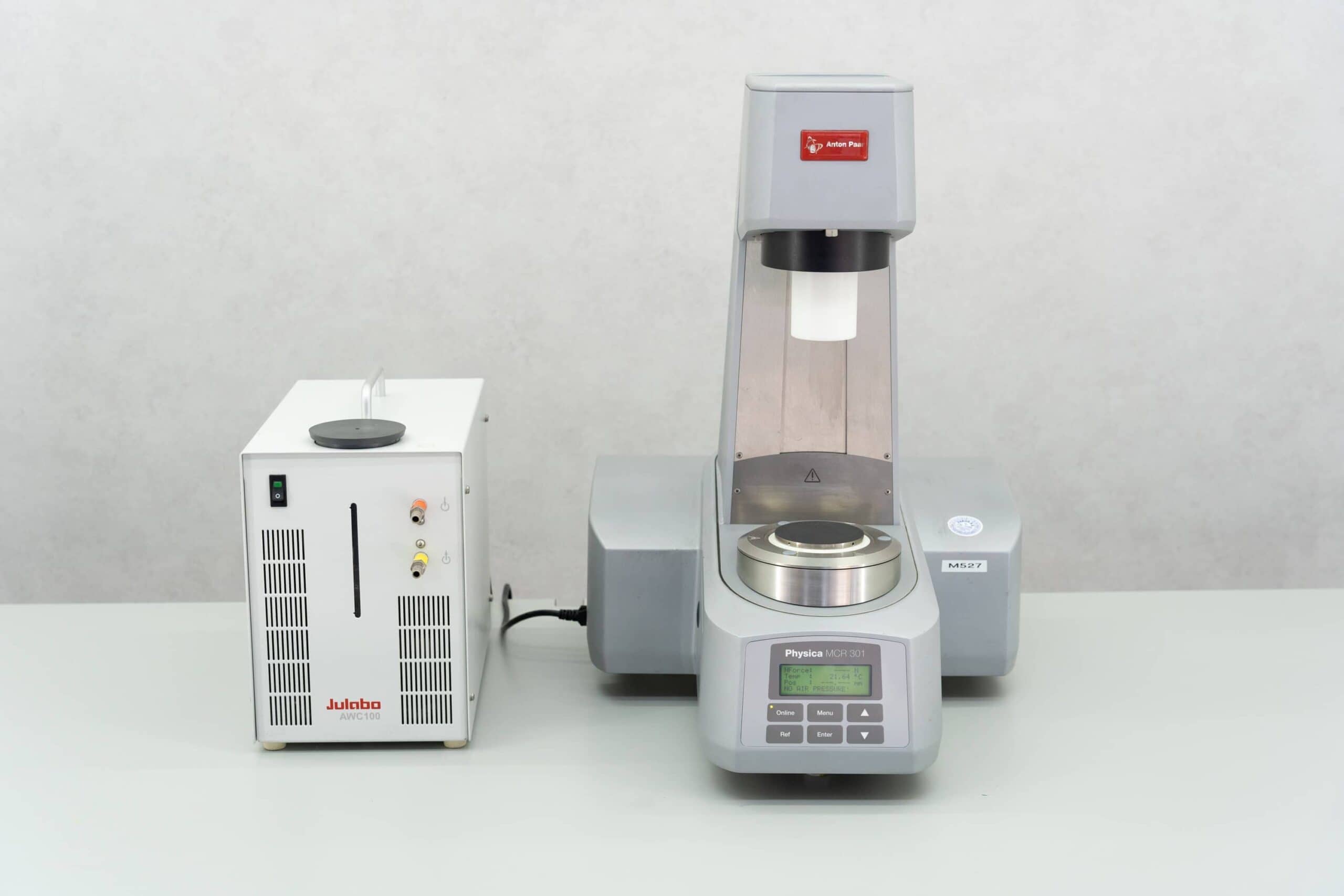

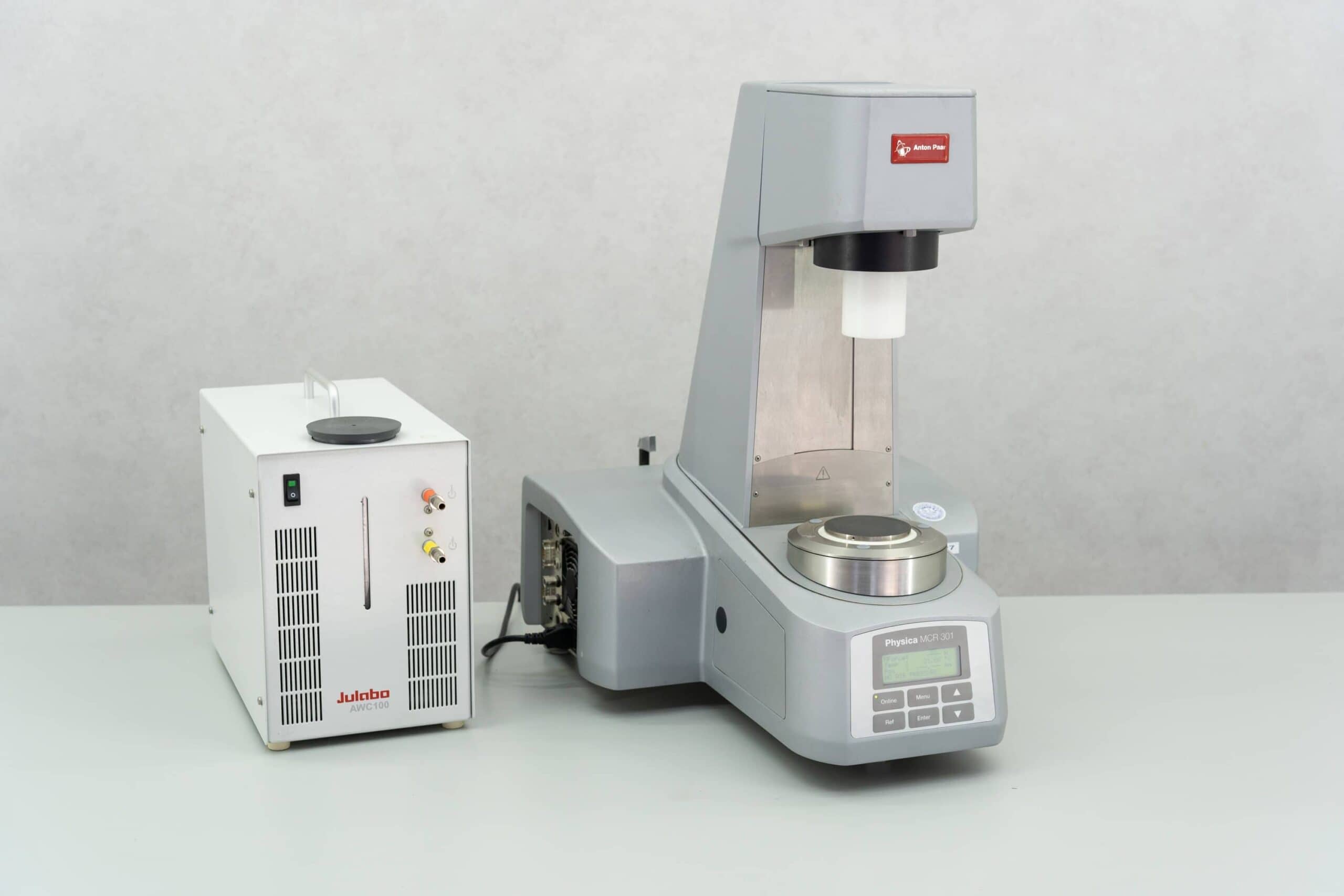

Anton Paar Physica MCR 301 Rheometer

The Anton Paar Physica MCR 301 is a voltage-controlled rotary rheometer, which can also operate via a feedback controller. It is equipped with a permanent magnet synchronous drive (minimum torque = 0.1 µNm, torque resolution <0.1 µNm) and an optical incremental encoder for measuring the shear stress (resolution < 1 µrad). Including computer.

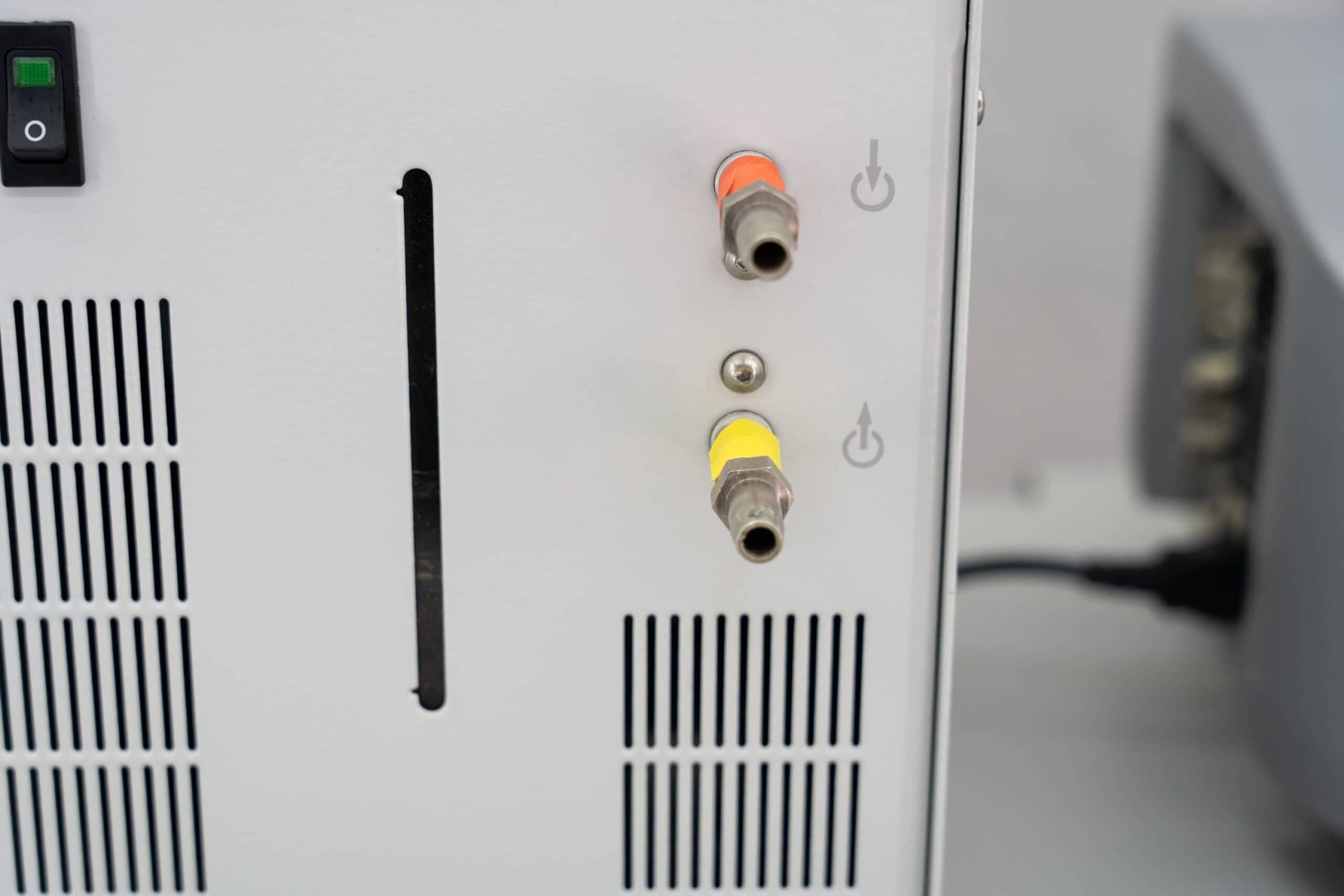

The Julabo AWC100 air-to-water recirculation cooler is a perfect solution
for dissipating smaller amounts of heat in external systems, such as those
generated by Peltier elements. The AWC100 is used where the cooling water
temperature can be above the ambient temperature and the temperature stability
plays a minor role.

Equipped with a Julabo AWC100 air-water circulation cooler

Rheometer Technical Specifications:

Voltage: 230 V

Power: 850W

Frequency range: 10-5 – 102 Hz

Temperature range: -40 – 200°C

Accuracy: ± 0.01°C (Peltier control)

External dimensions (W) x (D) x (H): 60 x 50 x 60 cm

Weight: 40 kg

Julabo Technical Specifications:

Cooling capacity: 0.55kW

Content: 9 litres

Temperature range: +20°C to +40°C

Pump capacity flow rate: 3.5 (l/min)

Pump capacity discharge pressure: 0.49 bar

External dimensions (W) x (D) x (H): 30 x 35 x 20 cm

Weight: 9.7 kg
