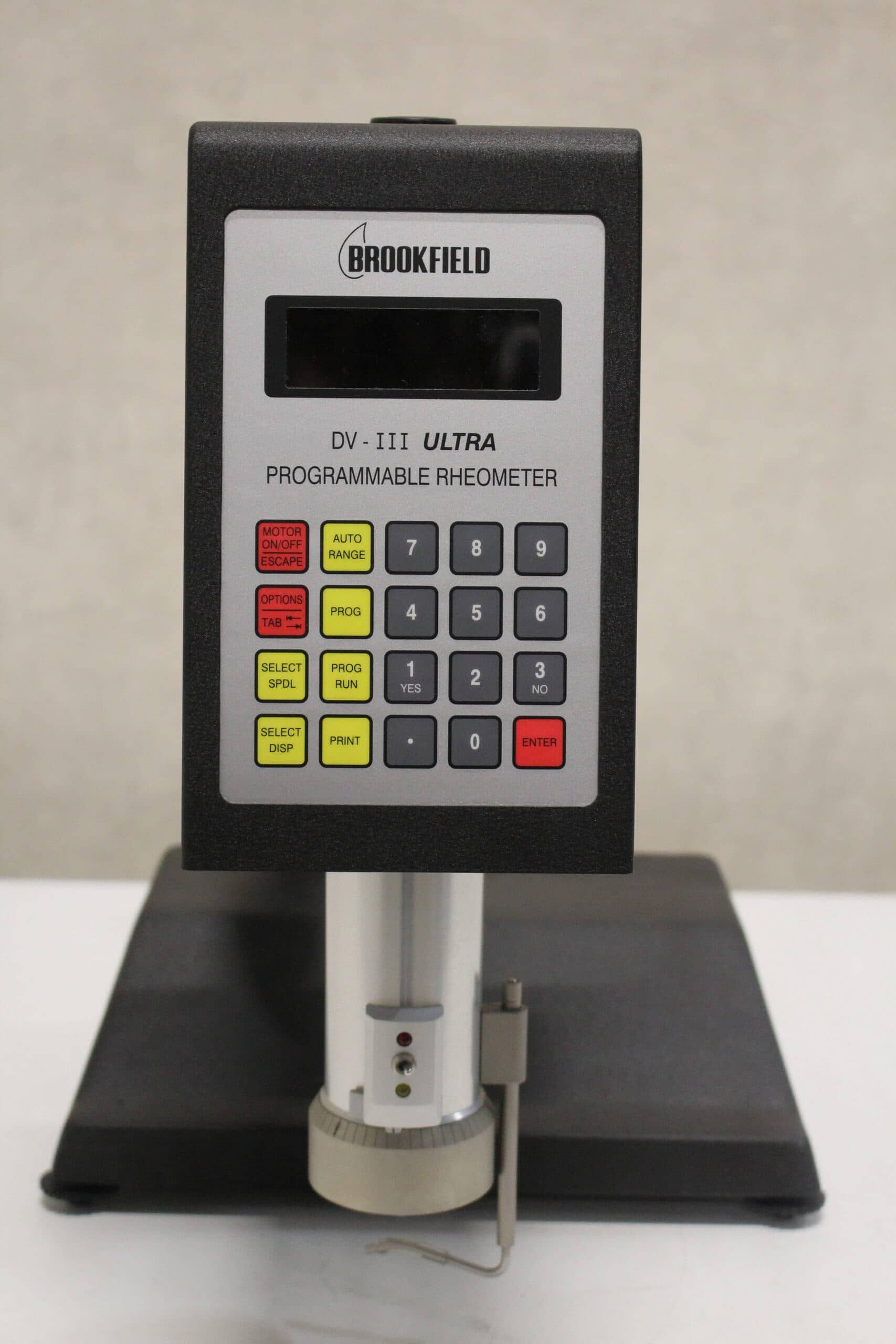

Brookfield LVDV-III Ultra Cone Plate Rheometer

Speed range: 0.01 RPM increments from 0.01 to 0.99 RPM, 0.1 RPM increments from 1.0 to 250 RPM.

Temperature accuracy: ± 1.0°C from -100°C to 150°C
± 2.0°C from +150°C to 300°C.

Sample Volume: 5 mL

Shear Rate: 7.5N (sec-1)

Viscosity Range: 1 – 3K cP

Viscosity Accuracy: ± 1.0% of full scale range.

Viscosity repeatability: ±0.2% of full scale range.
Dimensions(H x W x D): 588 (max) x 300 x 400 mm.
