Optek C4000 Multi Channel Photometric Converter

The C4000 converter is a multi channel controller capable of operating all optek photometric sensors. The C4000 converter allows for easy programming and operation, and can supply up to four real time configurable 4-20 mA output values correlated to any units of measure. The C4000 offers configurable relay alarms, can record and download process data, and can operate up to four sensors simultaneously.

Used For

For UV, VIS, NIR Absorption sensors

Color scales:

APHA / HAZEN / Pt/Co color

AOCS (Method Cc 13b-45) color

ASTM (D1500) color

EBC color

ASBC color

Gardner (ASTM D1544) color

ICUMSA color

KLETT color

Reference Base Unit (RBU, color)

Saybolt (ASTM D 156, D 6045) color

Turbidity scales:

CU (concentration units)

ppm (DE)

FTU

NTU

FAU

EBC

Optical sensors: 1 – 4

Communications

mA-outputs (0/4 – 20 mA): 2 / 4

mA-inputs (4 – 20 mA): 0 / 2

Relay-outputs: 3

Dimensions (WxHxD): 213 x 128 x 230 mm

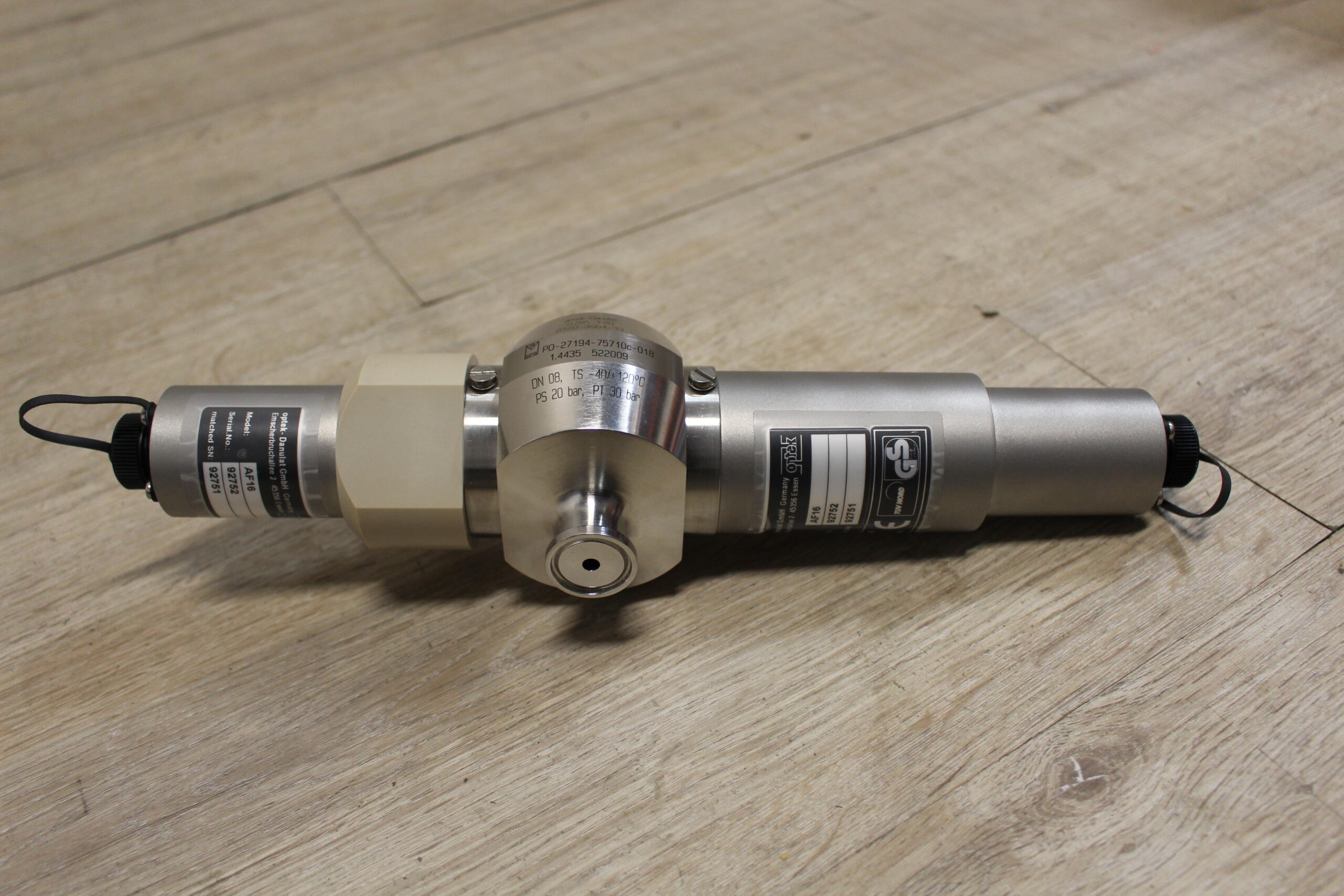

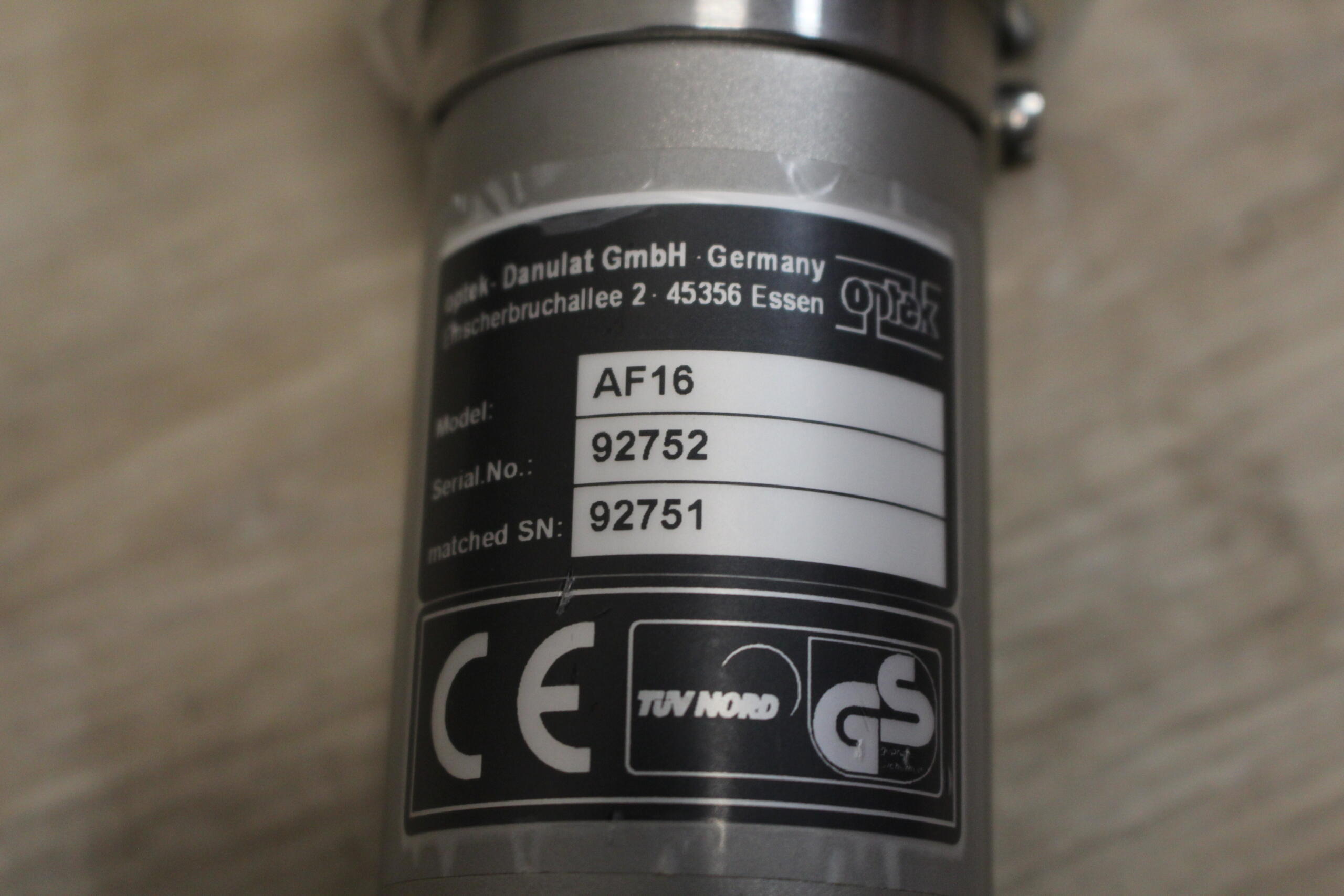

Including AF16 Turbidity Sensor
