Pessimetro S2 hardness tester + flat table
Roll over image to zoom in
Click to open expanded view
€ 760,00 excl. tax

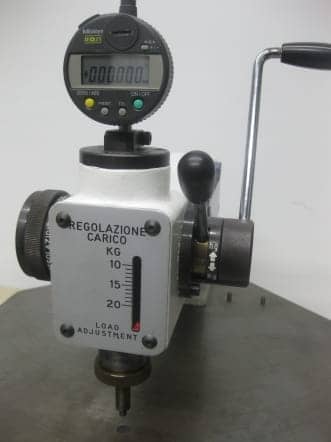

A hardness tester according to the principle of “Brinell”, type Pessimetro S2, in combination with a large surface table.
The hardness of materials with a thickness of max. 10 mm. can be tested by means of 5 different (in size) pressure bodies with a fine adjustment of 100 gr – 20 kg. force can be applied.

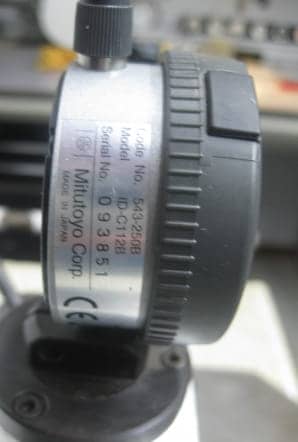

The size of the impression is measured digitally using a Mitutoyo 543-250B (in 0.001 mm.).
The hardness of the material is then calculated in (kgf) and the area of the indentation.
Compression bodies: 1.5 mm. / 11 mm. / 30 mm.
Dimensions table (WxHxD): 40 x 8 x 55 cm.
Weight: 40 kg.
Used, in good condition
