Infusion Preparation unit
Roll over image to zoom in
€ 60.758,00 excl. tax
Description
ZPL 2862

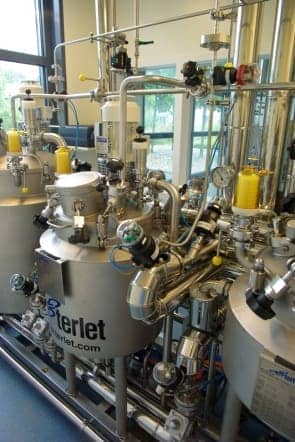

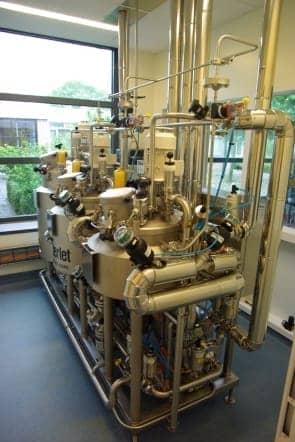

Infusion preparation plant
Maker is the Company Terlet eg
The installation consists of three lots preparation vessels jacketed stainless steel 316, working pressure 3 bar steam / 4 bar h2o: 20 L (Ø350 mm h 310 mm), 50 L (Ø450 mm h 420 mm) and 200 L (Ø750 mm h 580 mm)
Each barrel has an agitator top (Jongia, 750 rpm, 4 ply), heating by steam, cooling process, sight glass, hand hole, temperature PT 100, spray ball (cleaning), aeration through filter.
Infusion KPA 1.5 m3 / h at 3 barg
Filter Kit (preliminary and final filter) Pall 2 x 20 candle “sartorius. (Incl forward flow tester Palltronic [separately])
Couplings with Tri-clamp
Cabinet (SS 304) with Siemens S7 PLC control.
Specifications
| Weight | 0,0 kg |
|---|---|
| Condition | Used, in good condition |
