Euromex Oxion Microscope

Euromex Oxion Microscope Magnification Factor 5x – 100x Incl. camera

The Euromex Oxion is a high-quality laboratory microscope for professional use in research, medical, and educational laboratories. Thanks to the high-quality plan objectives, bright LED lighting, and ergonomic controls, the microscope delivers sharp images over a magnification range of 50× to 1000× (with 5×, 10×, 40×, and 100× objectives and 10× eyepiece). The trinocular design allows for the connection of a digital camera for capturing photos and videos, documentation, and image analysis. The Oxion is suitable for routine laboratory work, microbiology, histology, cytology, and research purposes. Technical specifications

Specification Value

Type Trinocular biological laboratory microscope

Magnification factor 50× – 1000× (5×, 10×, 40× and 100× objectives)

Eyepiece HWF 10×/22 mm wide-angle

Objectives Plan IOS Infinity Corrected 5×, 10×, 40× and 100× (oil immersion)

Revolver Inverted 5-fold objective turret

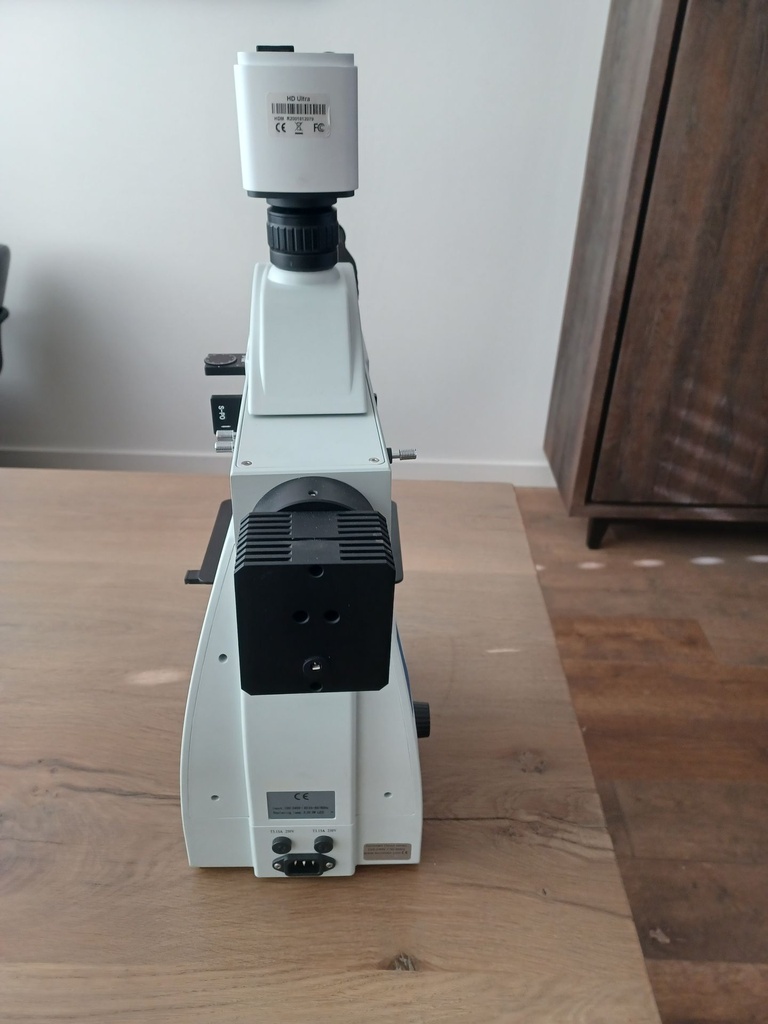

Microscope head Trinocular, 30° inclination, 360° rotatable

Interpupillary distance 50–75 mm

Focusing Coaxial coarse and fine focusing with friction control

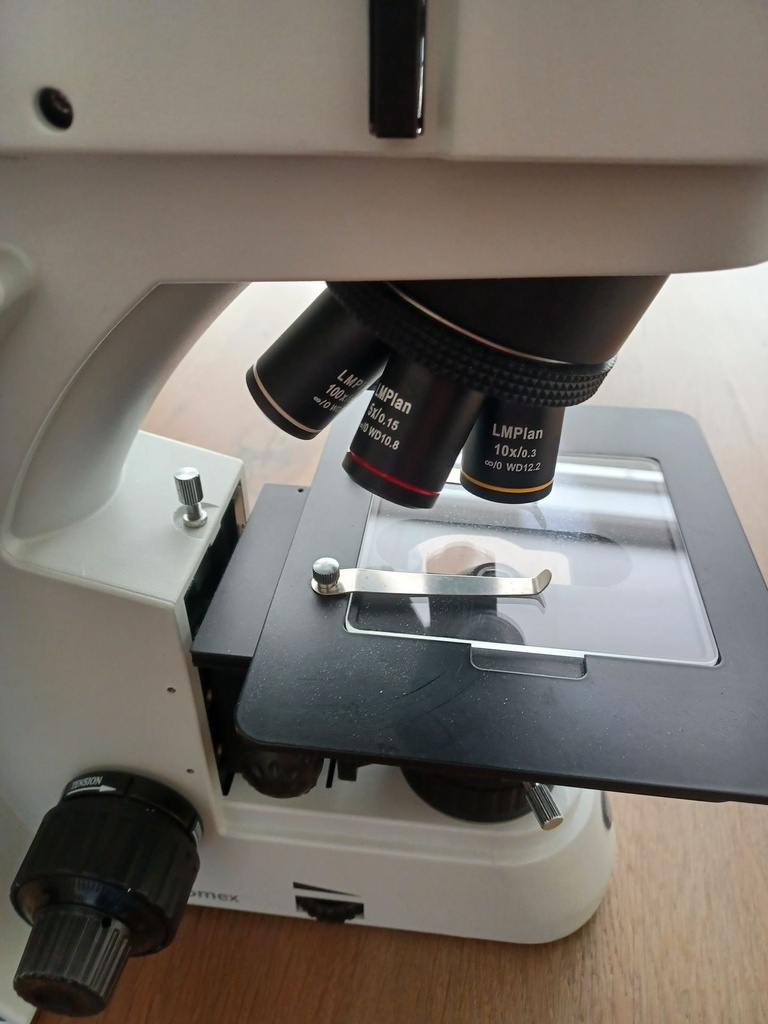

Object stage Mechanical XY stage, 150 × 140 mm

Condenser Abbe N.A. 1.25 with iris diaphragm

Illumination 3 W NeoLED, adjustable brightness

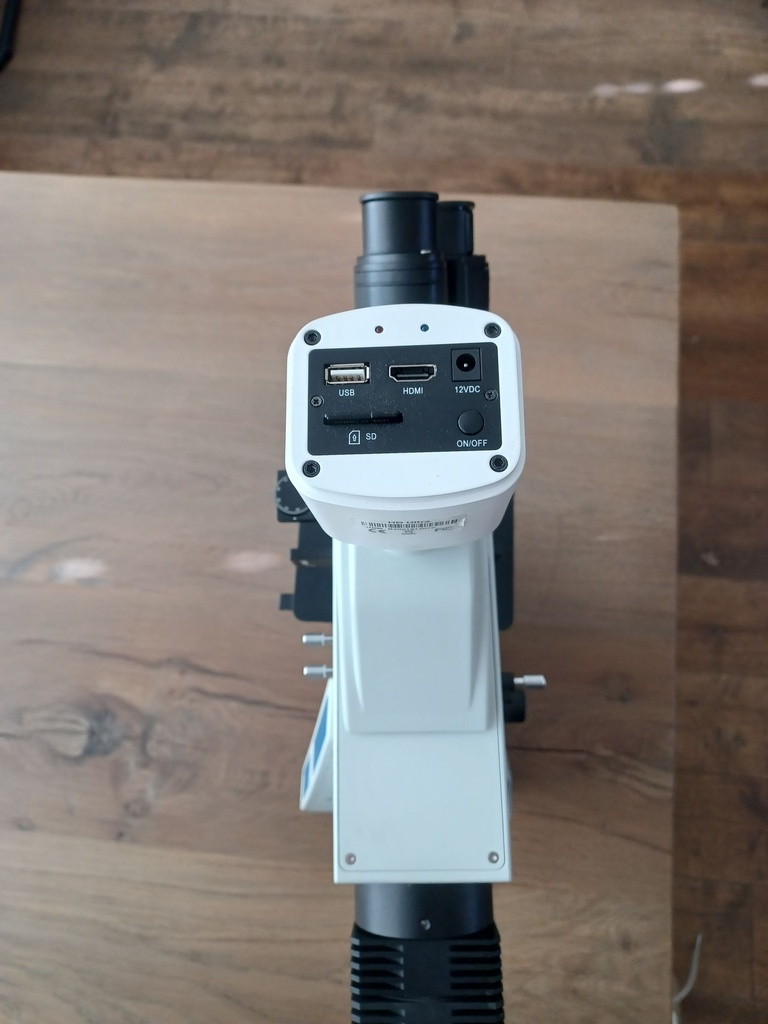

Camera Digital microscope camera included (USB, suitable for image and video recording; type depends on configuration)

Applications Biology, microbiology, histology, pathology, education and research.
