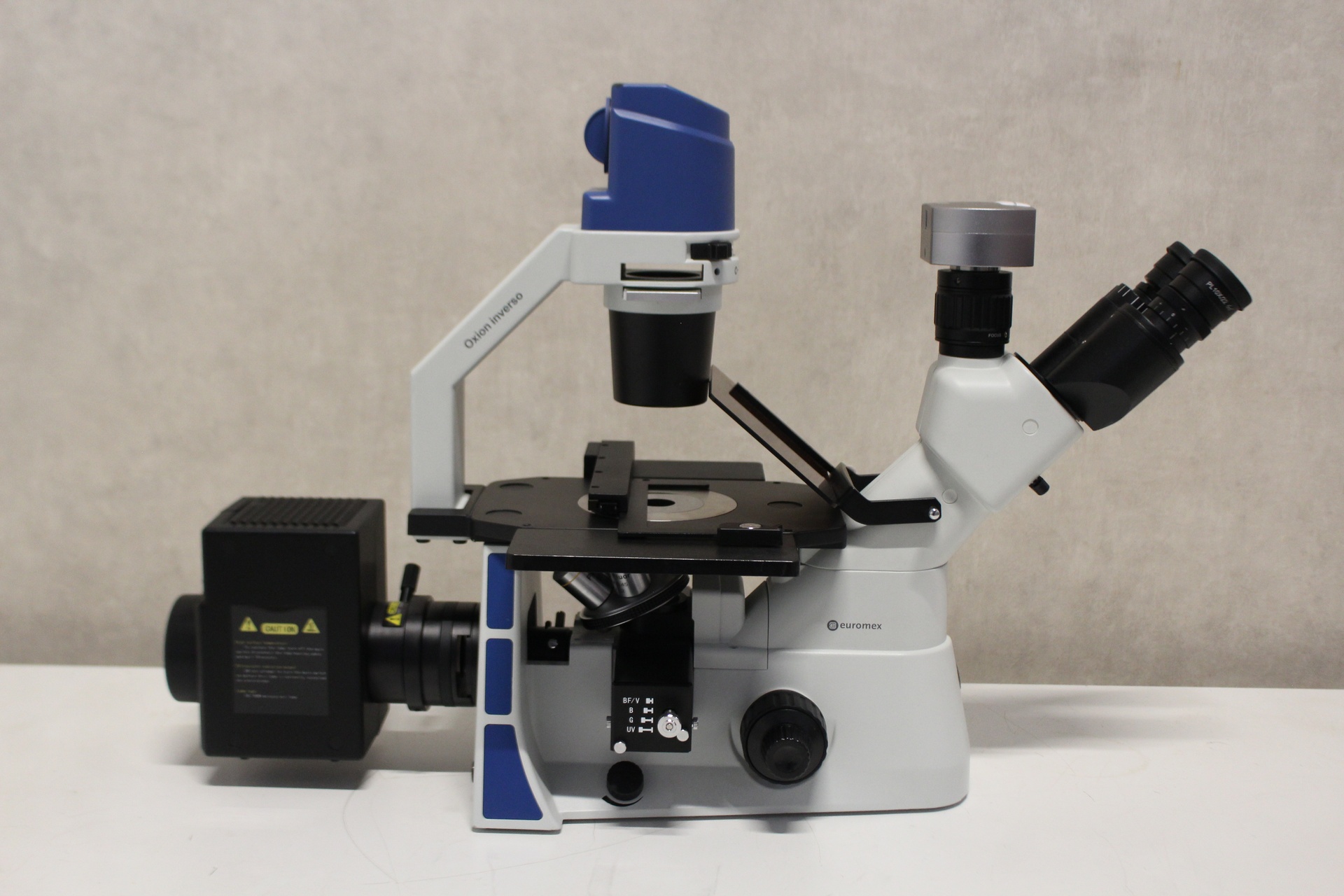

Euromex Oxion Inverso OX.2453-PLF Trinocular Inverted Fluorescence Microscope

 6.499,00 excl. tax

1 in stock

SKU: LM 18972 Category:

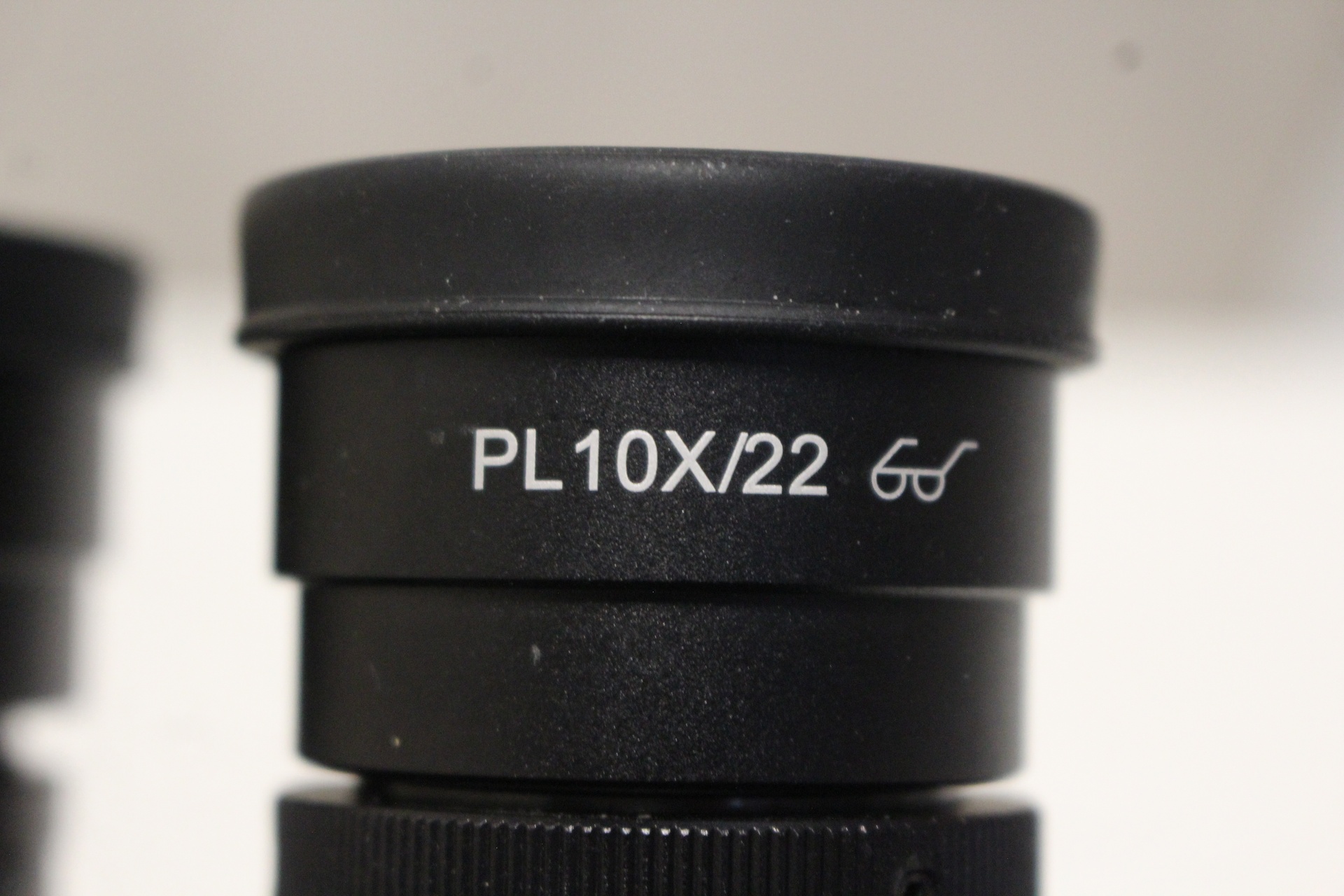

Eyepieces: DIN HWF plan 10x/22 mm

Head: Trinocular 45° inclined tubes with interpupillary distance of 54 to 75 mm

Nosepiece: Quintuple

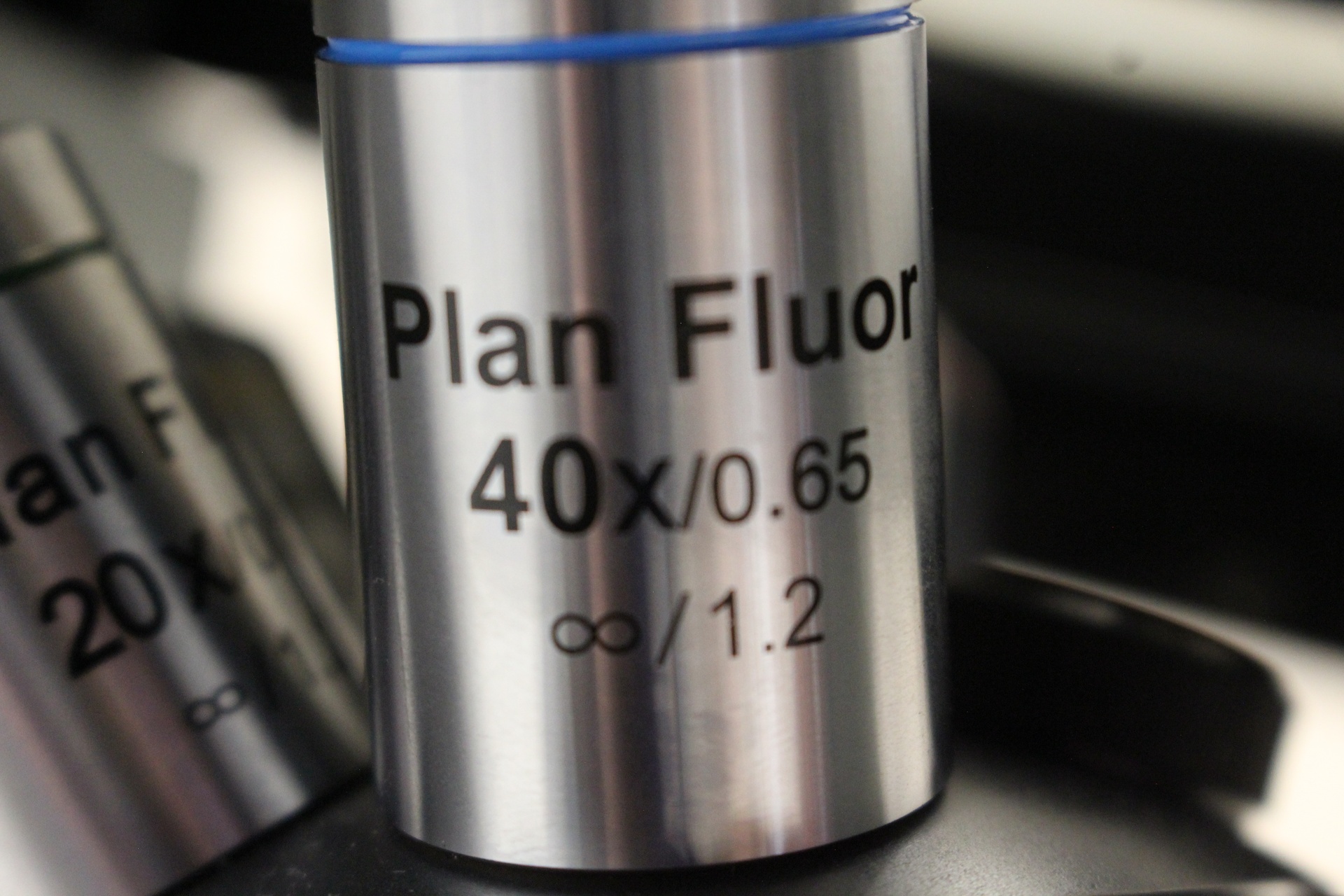

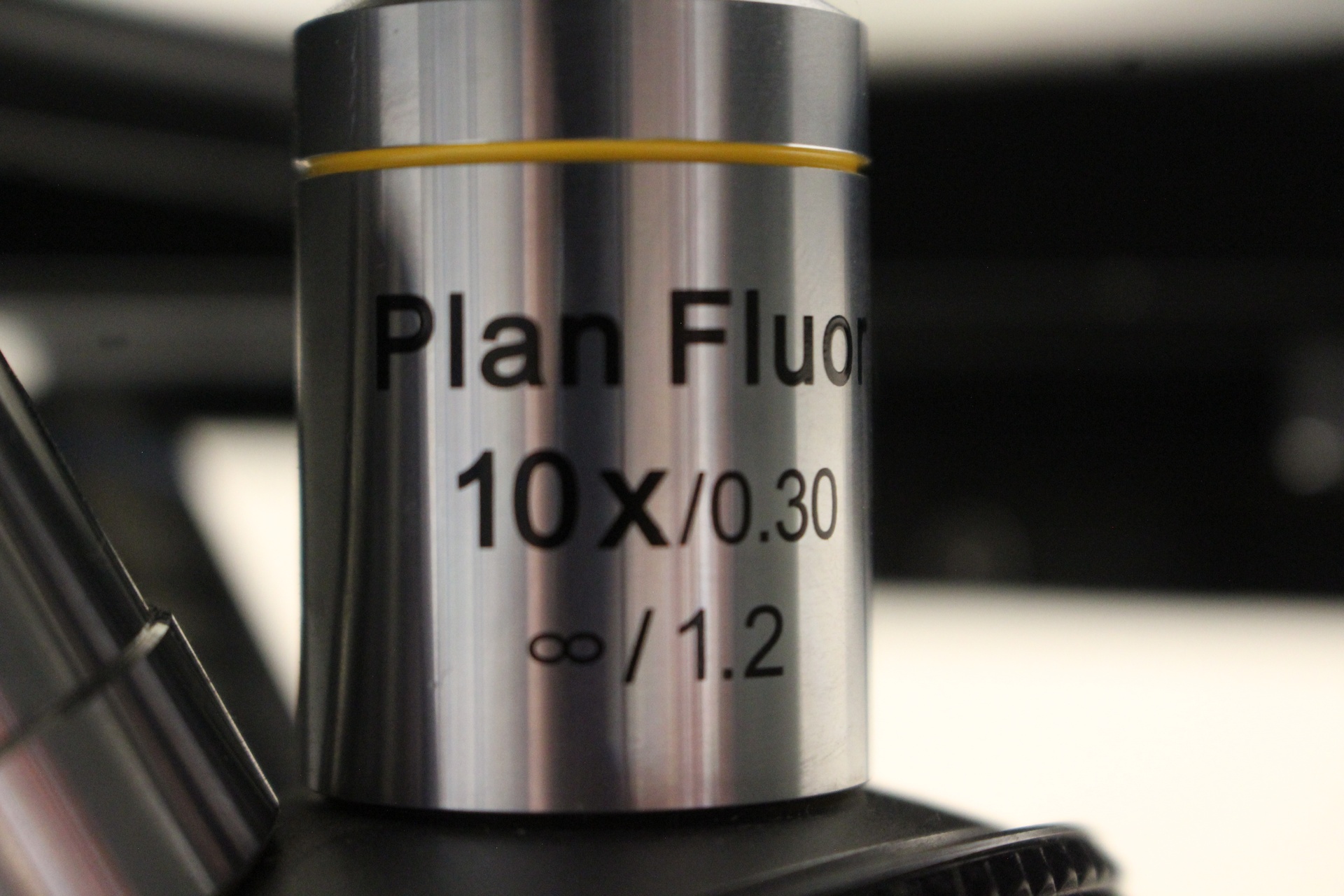

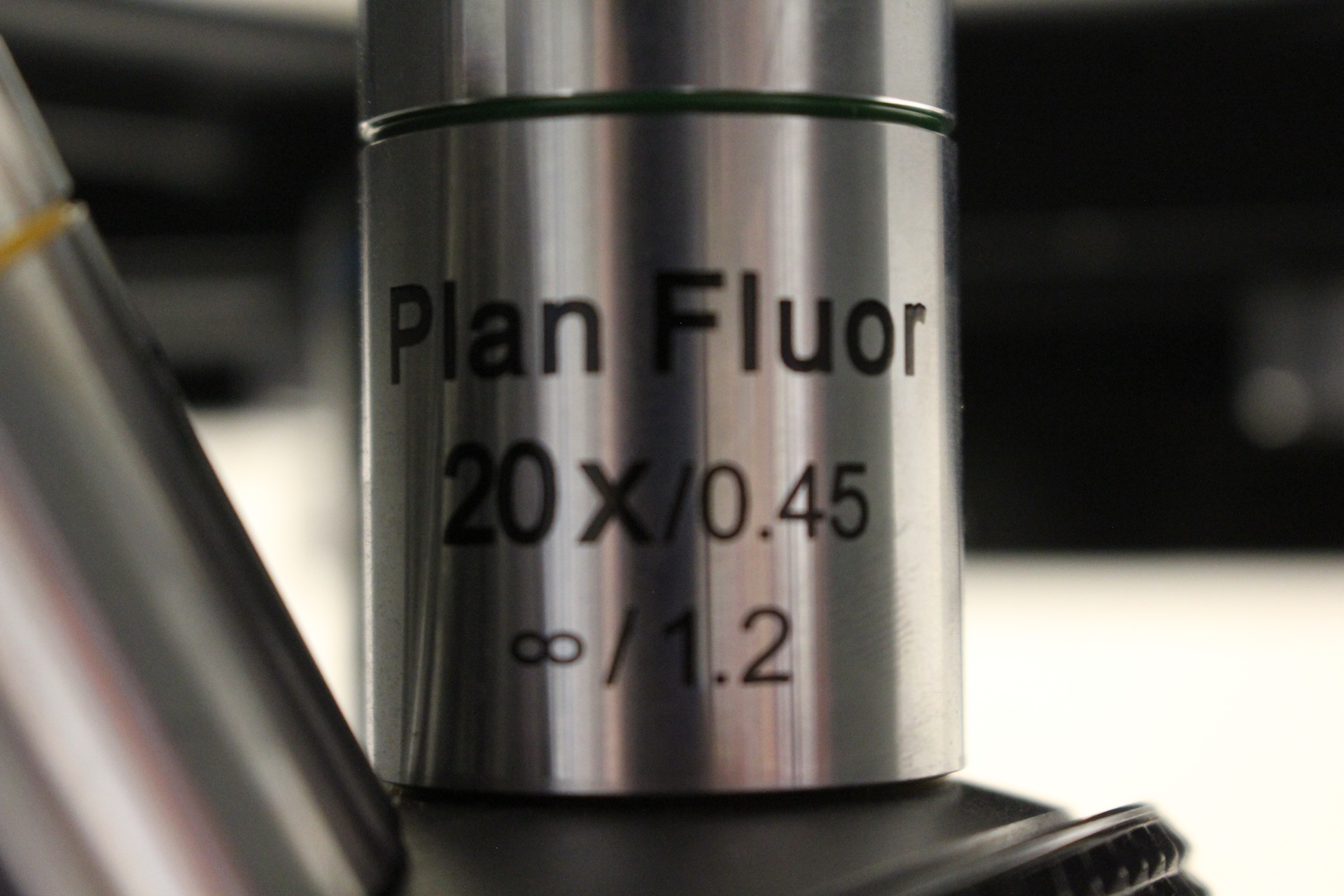

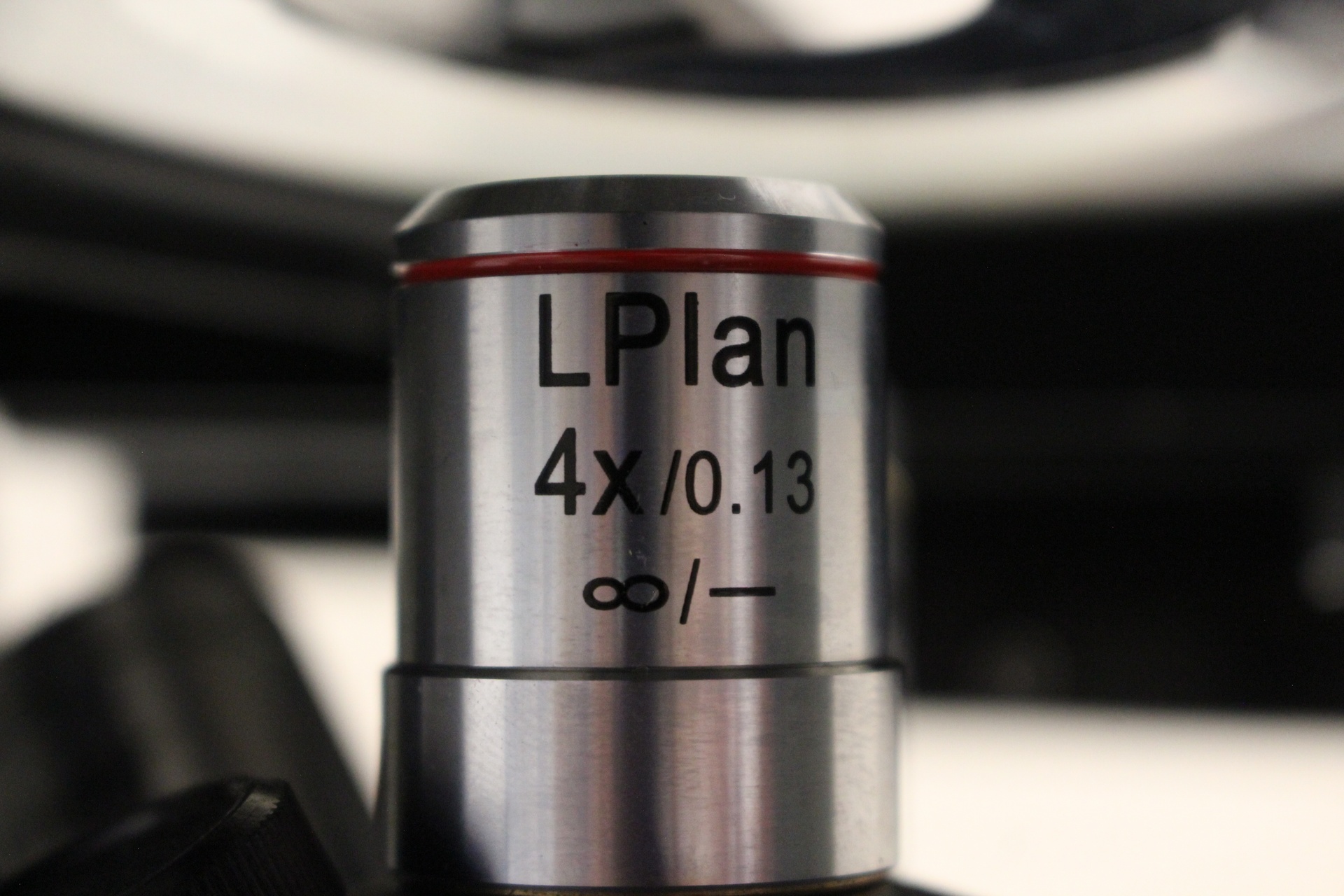

Objectives: LPlan 4x/0.13, Plan Fluor 10x/0.30, Plan Fluor 20x/0.45, Plan Fluor 40x/0.65

Stage: 50 x 230 mm equipped with a coaxial mechanical 120 x 78 mm X-Y stage

Condenser: N.A. 0.30 condenser with iris diaphragm. Working distance 72 mm

Focusing adjustment: Coaxial 25 mm coarse and fine adjustments, 2 μm precision and with friction adjustment

Illumination: Transmitted 5 W LED Intensity adjustable with internal 100-240 V power supply and a reflected 100 W HBO mercury vapor light source with external 100-240 V power supply with UV protection shield.

Fluorescence filters: Blue spectrum, OX.9745, Green spectrum, OX.9746, UV spectrum, OX.9747

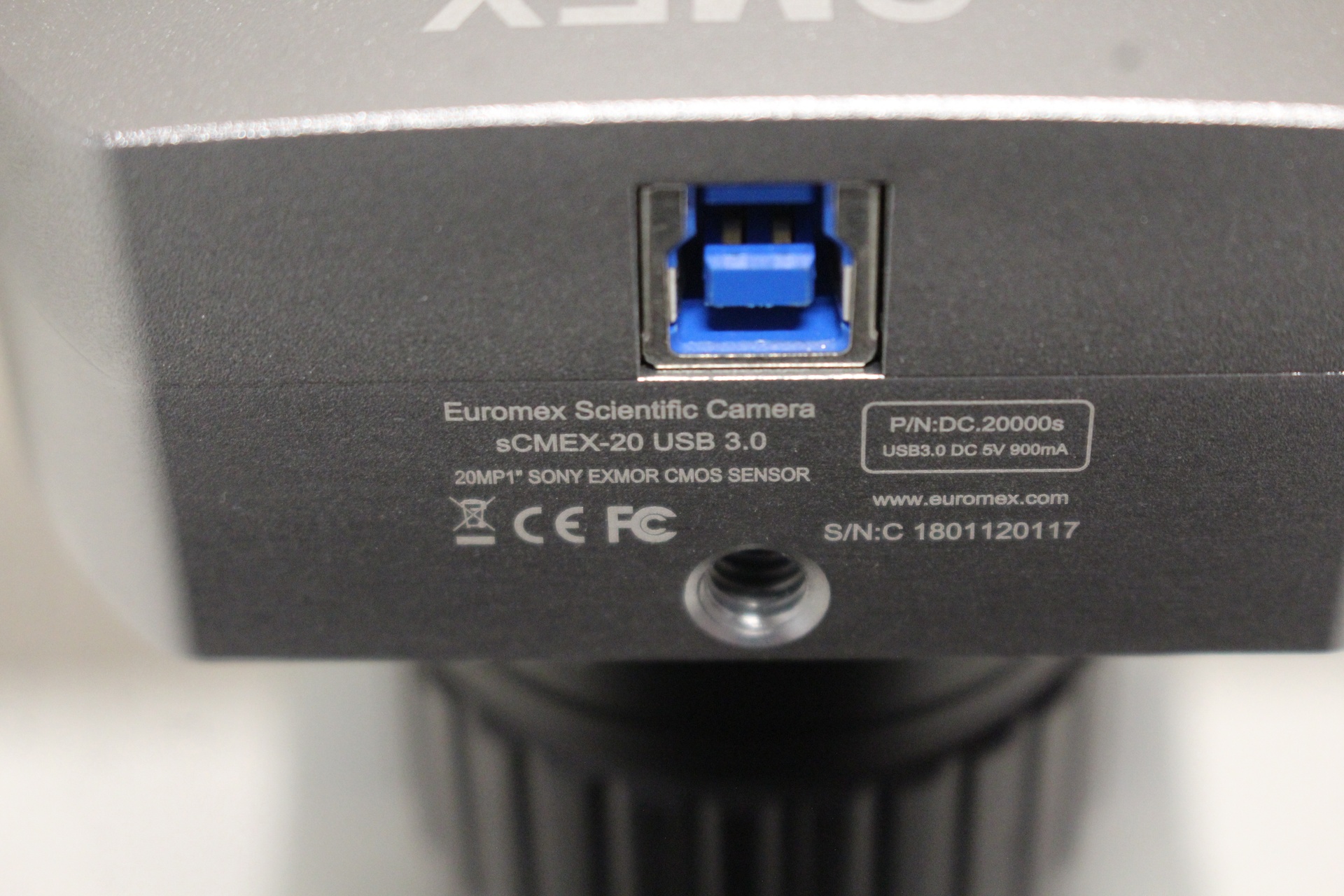

Camera: sCMEX-20

Number of pixels: 20 MP

Sensor size: 1 Inch

Pixel size: 2.4 x 2.4 µm

Resolutions: 5440 x 3648, 2736 x 1824, 1824 x 1246

Exposure time: 0.264 ~ 15000 ms

Maximum frames: 15, 50, 60 p/sec

Grayscale conversion: 16 bits

Dynamic range: 66.3 db

S/N Ratio: 41.74 db

Color rendering: 36 bits

Sensitivity: 0.21 V/lux-sec

Quote notes

Weight 0,0 kg
Warranty

6 months

Condition

Used, in good condition

Brand

Euromex
