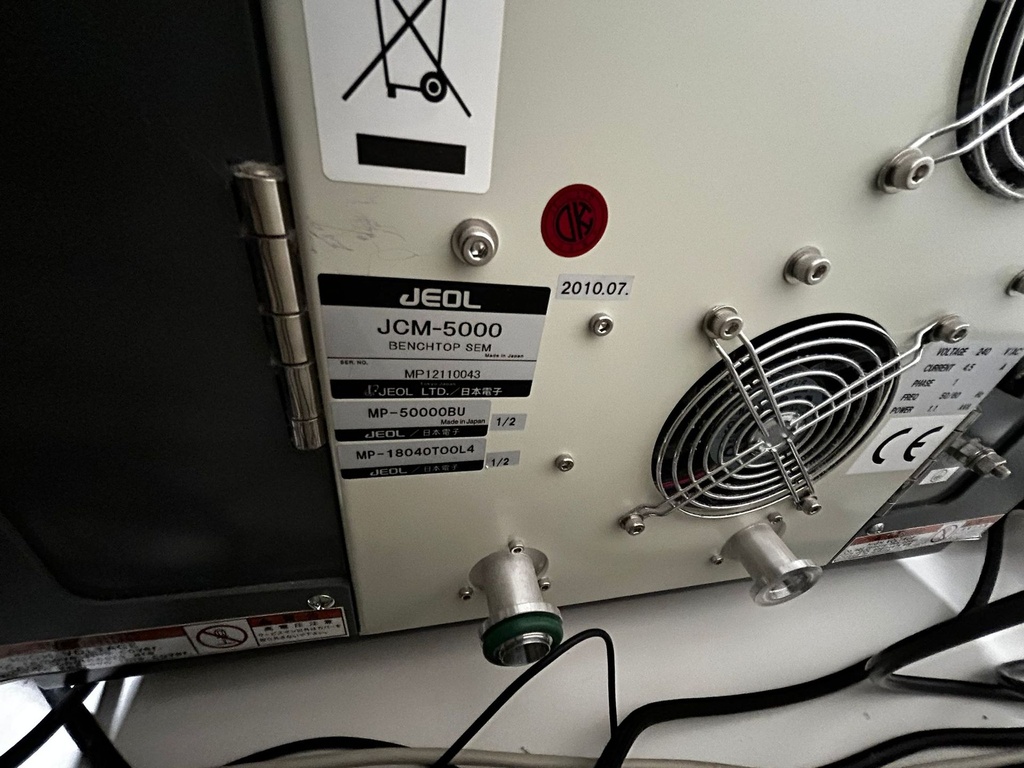

JCM-5000 NeoScope, inclusive GLD-040 pump, computer with software

The JCM-5000 NeoScope economically complements both optical microscopes and traditional SEMs. The NeoScope makes it easy to obtain high magnification images with high resolution and large depth of field using a microscope that is as simple to operate as a digital camera, but has the powerful electron optics of an SEM.
Whether used by trained electron microscopists as a simple screening instrument, or by lab technicians as a higher resolution alternative to the light microscope, the NeoScope will help accelerate the pace of research in the life sciences, forensics, and failure analysis of manufacturing materials.
Basic operation of the NeoScope is simple with auto focus, auto contrast and auto brightness controls. No special sample preparation, such as coating or drying, is required. The NeoScope operates in both low and high vacuum modes and has three settings for accelerating voltage suitable for a variety of applications, all of which can be programmed in special pre-stored recipe files.
NeoScope™ Benchtop SEM Highlights
• Compact Benchtop SEM with automated settings for biological and materials samples
• High resolution and large depth of field complement optical microscopes or SEM instruments in the lab
• X10 — 20,000 magnification without lens change
• Automatic and manual control with pre-stored recipes
• High and low vacuum modes
• No special sample preparation, such as coating and drying, for conductive and non-conductive samples
• Secondary electron and backscattered electron imaging
• Three selectable accelerating voltages
• Sample loading to imaging in less than three minutes
• Easy to learn and operate
Specifications
Magnification ×10 to ×40,000
Observation mode High vacuum mode, Low vacuum mode
Electron source Tungsten filament
Accelerating voltage 15kV, 10kV, 5kV
Specimen stage Manual, X 35mm, Y 35mm
Maximum specimen size 70mm Diameter 50mm Height
Detector Secondary electron detector, Backscattered electron detector
Data display Accelerating voltage, magnification, micron bar, micron value
Digital image 1,280ｘ1,024 pixels, bmp, tif, jpg
OS Windows® VISTA、Windows® 7
Automatic operation Electron source, focus, brightness, contrast, and astigmatism
Composition Main console + RP (20L/min)

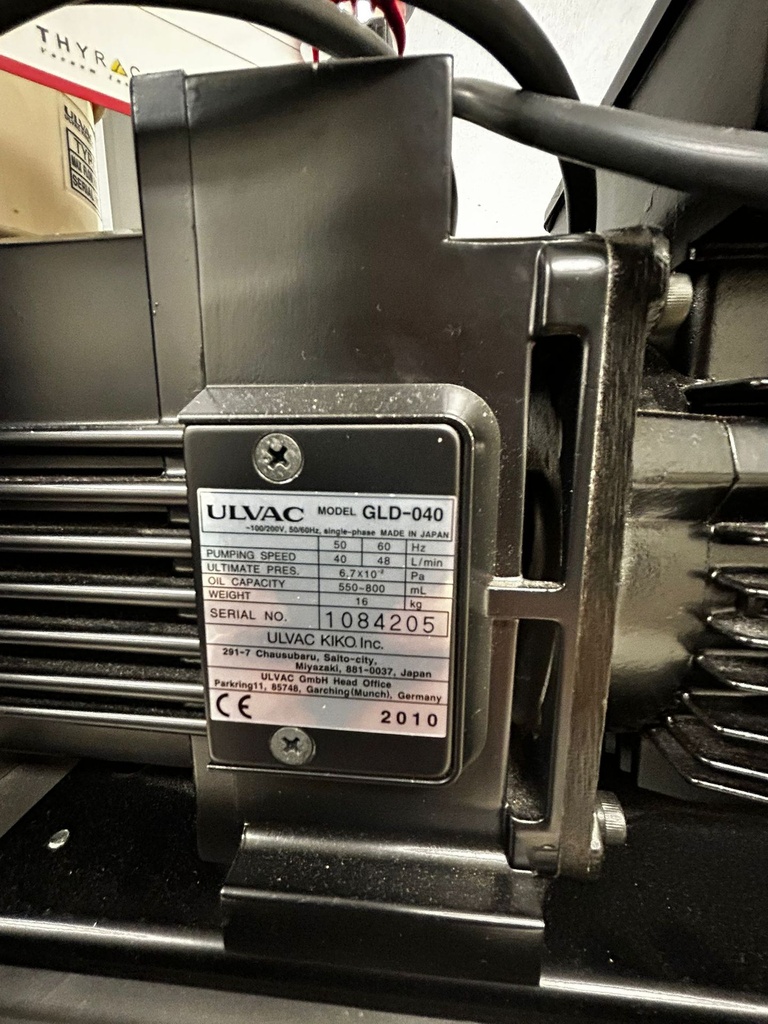

info of the GLD-040 pump

Rotary blade type vacuum pump that uses lubricating oil. GLD series features high performance, low vibration and noise and several functions such as gas ballast valve, oil-back-flow prevention mechanism, and large sized oil level gauge. This series equips multi-voltage motor and correspondent to international standard.

Specification

Actual Pumping Speed: 50Hz: 40 60Hz: 48L/min
Ultimate Pressure 0.67Pa
Ultimate Pressure (G.V. open) 6.7Pa

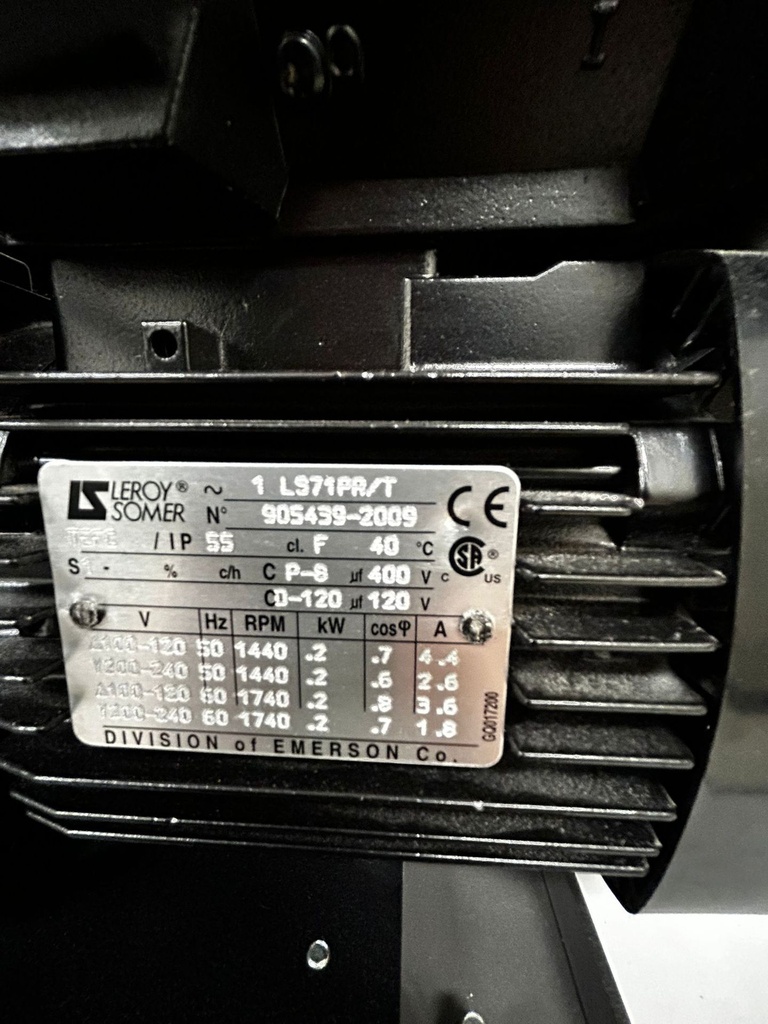

Motor Output 200W
Recommended oil R-2
Oil capacity 550～800mL
Weight 16kg
Inlet, Outlet port diameter KF-25, G3/4mm
Ambient temperature 7～40℃
Overall dimensions in mm: 150(W) × 427(L) × 227.5(H)

Ultimate pressure is the value measured by Pirani gauge. When measured with a Mcleod vacuum gauge, the value will be an order of magnitude lower for vacuum pumps with an ultimate pressure of 1.3Pa or less.
