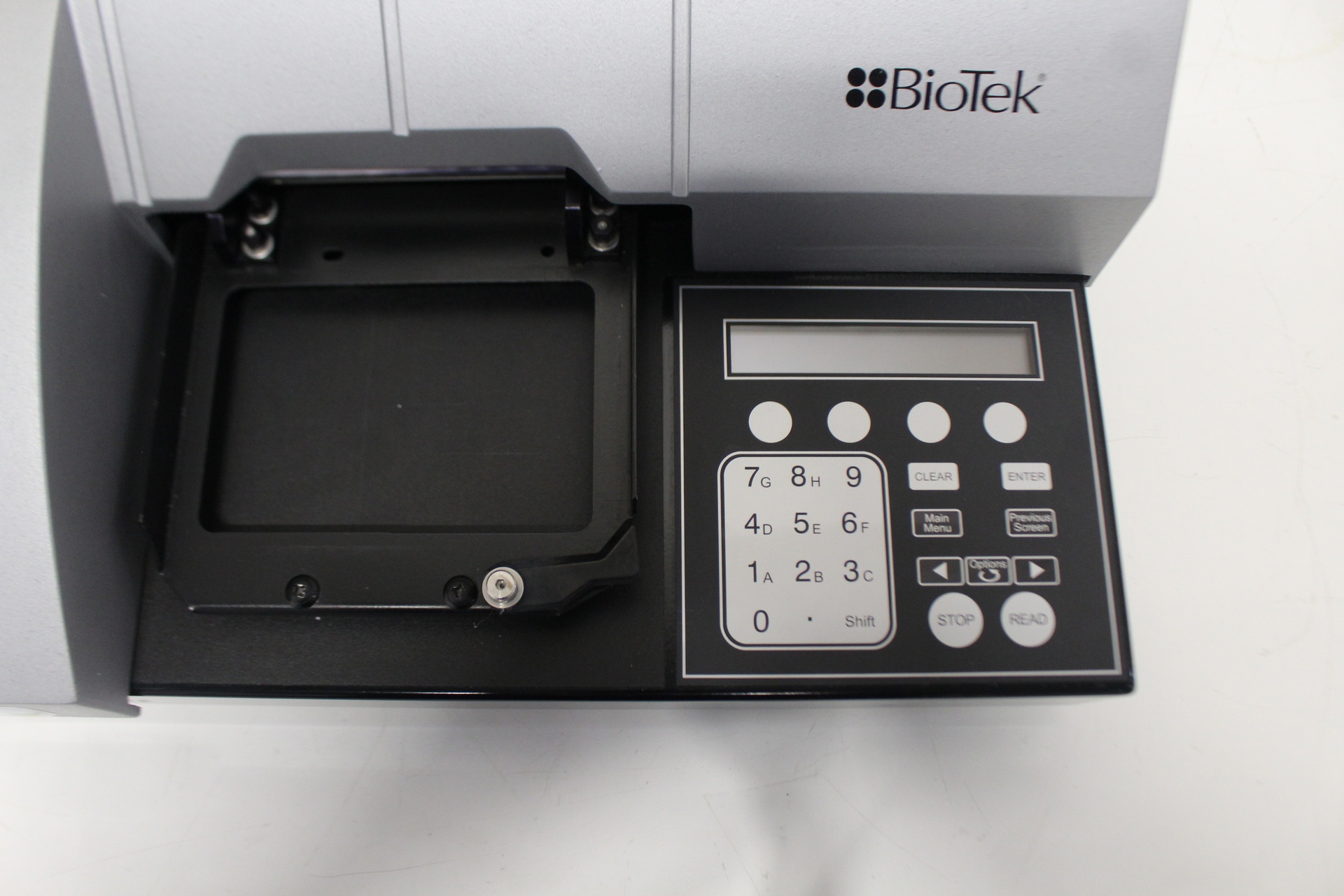

The ELx800 Absorbance Microplate Reader is a single-channel reader-assay system, designed to automatically perform endpoint analysis for a variety of ELISA-based applications. The reader can measure the optical density of solutions in 6-, 12-, 24-, 48-, or 96-well microplates.
Wavelength range: 400 to 750 nm
Filters: 10 nm half-bandwidth interference filters

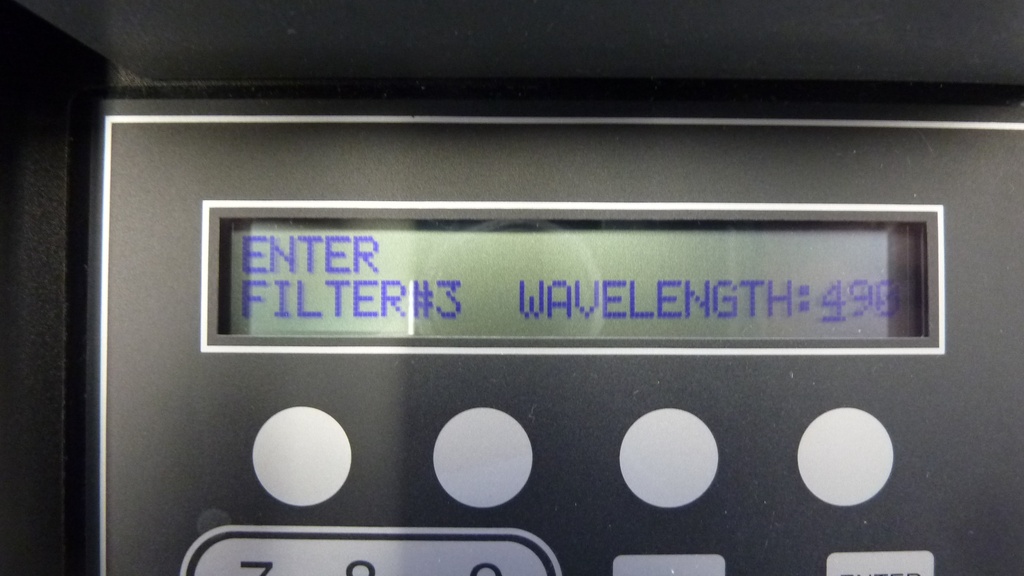

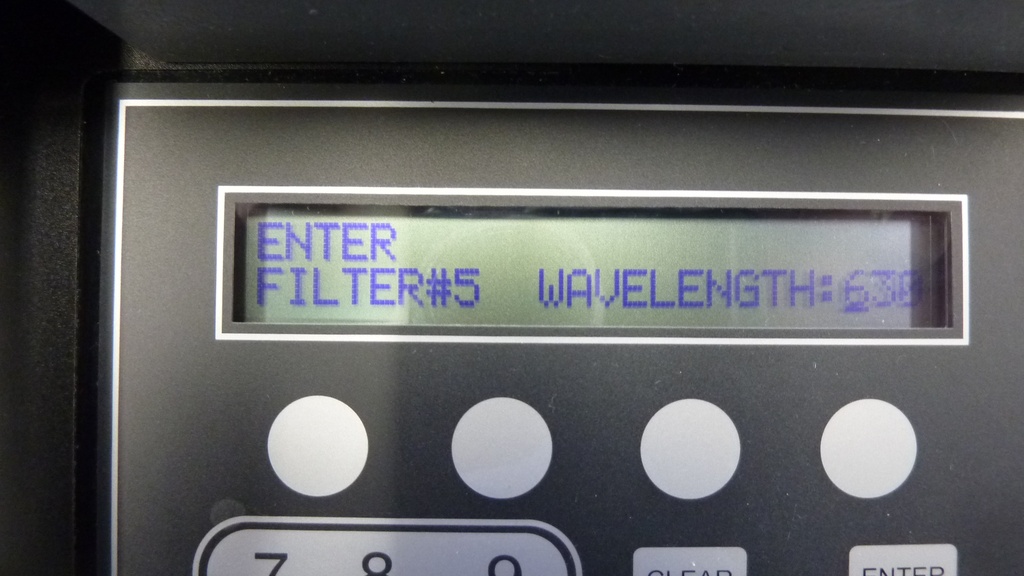

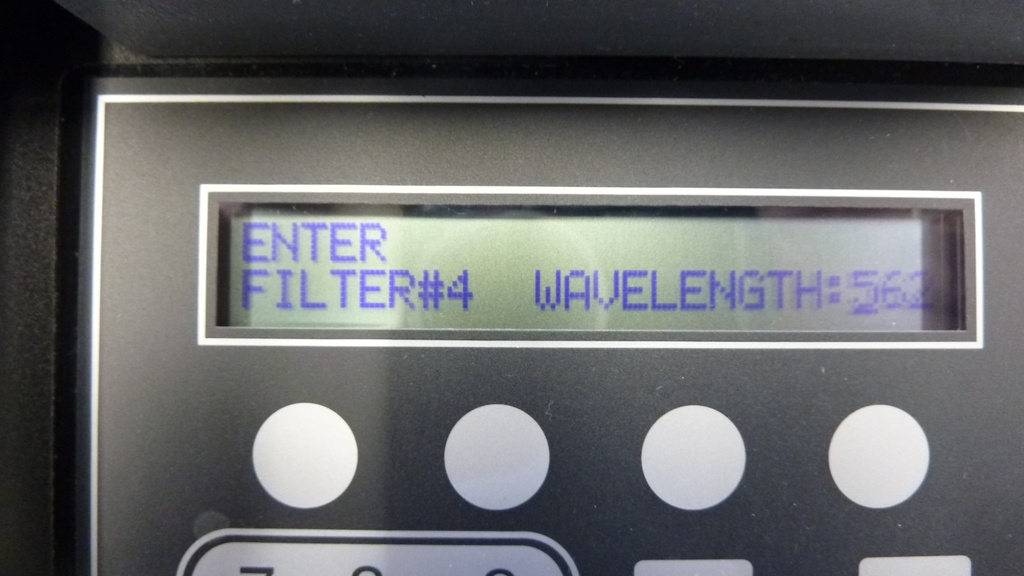

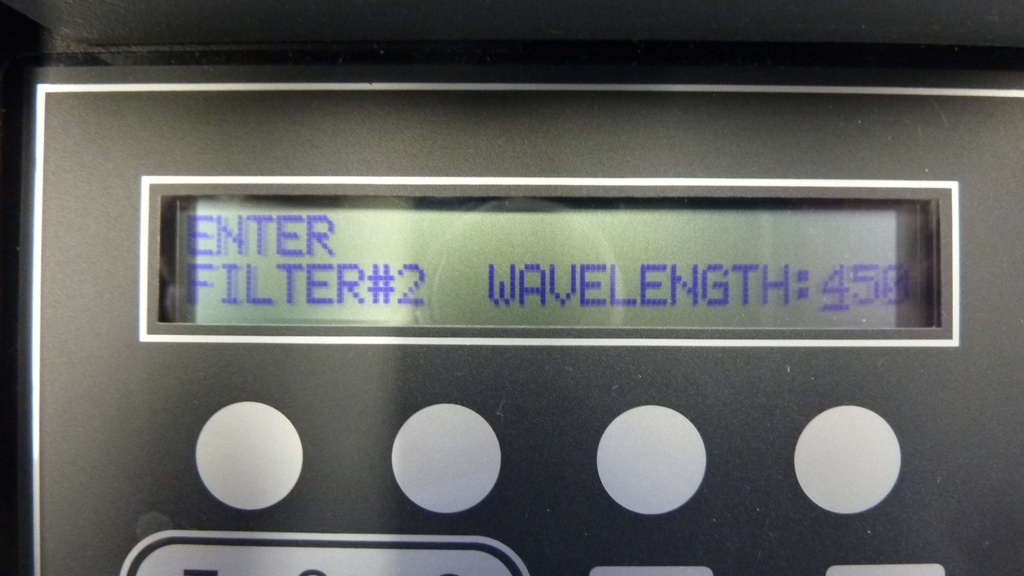

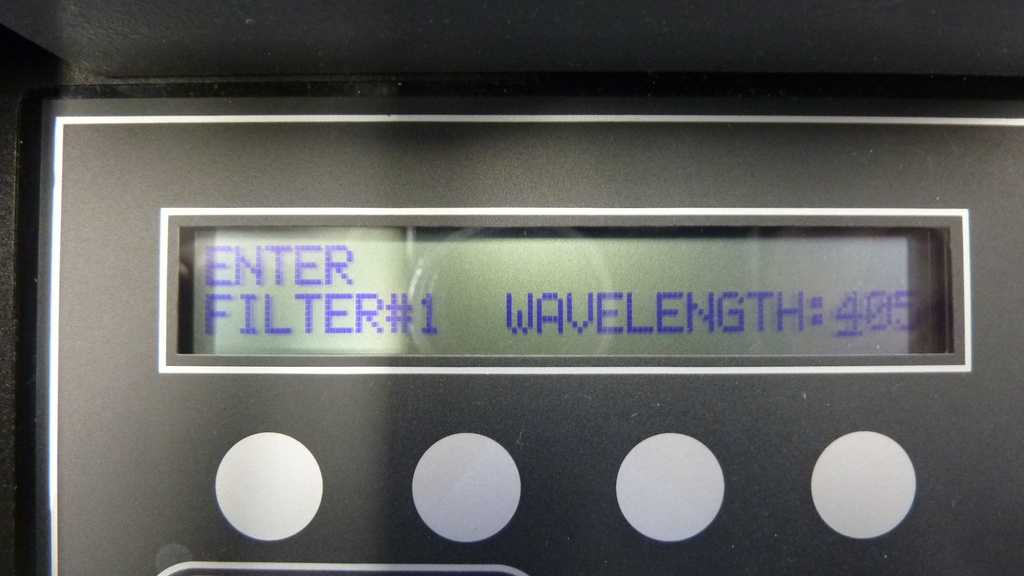

Filters supplied: 405, 450, 490, 562 and 630 nm
Light source: Tungsten gas filled bulb
Absorbance measurement range: 0.000 to 3.000 OD
Accuracy (at 405 nm): ± 1.0% ± 0.010 OD from 0.000 to 2.000 OD (normal read mode), ± 2.0% ± 0.020 OD from 0.000 to 2.000 OD (rapid read mode)
Linearity (at 405 nm): ± 1.0% from 0.000 to 2.000 OD, ± 3.0% from 2.000 OD to 3.000 OD (normal read mode), ± 2.0% from 0.000 to 2.000 OD (rapid read mode)
Repeatability (at 405 nm): ± 0.5% ± 0.005 OD from 0.000 to 2.000 OD (normal read mode), ± 1.0% ± 0.010 OD from 0.000 to 2.000 OD (rapid read mode)
Dimensions (DxWxH): 420 x 380 x 180 mm
Weight: 8 kg
