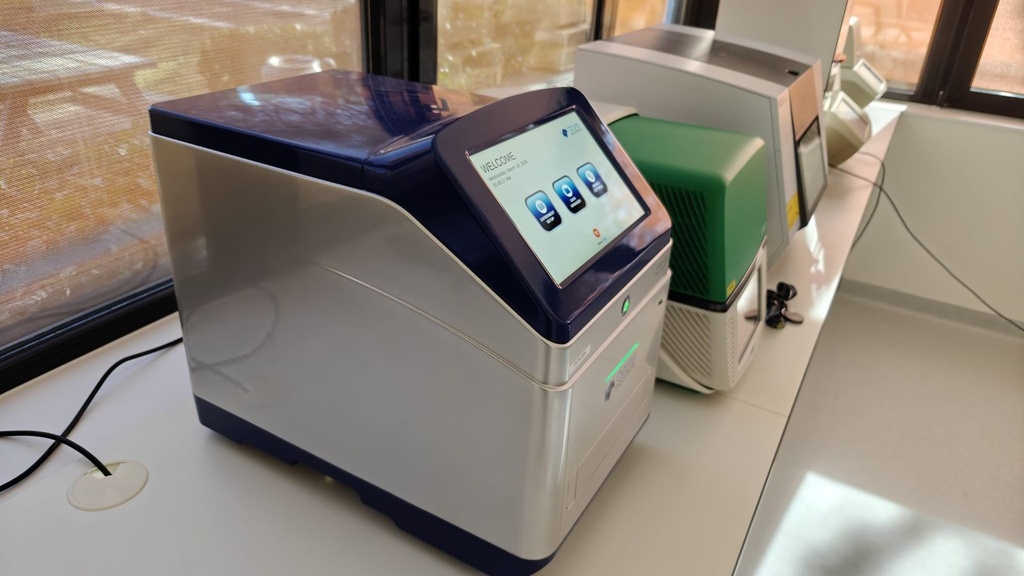

Azure Cielo 6 PCR Cycler

Parameter Cielo 6 (AIQ060)

Sample capacity (wells): 96 wells

Compatible plates/tubes: 96-well plates and tubes, 8- or 12-well strips and individual tubes

Reaction volume: 1-50 µL (10-50 µL recommended)

Dynamic range: 10 logs

Excitation source: LED, excitation range: 450-730 nm

Detection channels: 6

Multiplexing: Up to 6 targets

Reaction temperature: 4 °C to 99.9 °C

Maximum block temperature rise rate: 6 °C/sec

Average sample temperature rise rate: 4 °C/sec

Temperature uniformity: ±0.2 °C

Temperature accuracy: ±0.1 °C

Custom dye/chemistry: ✓

Internal memory: 32 GB, equivalent to 20,000 experiments

Dimensions (W x H x D): 30.5 cm x 50.8 cm x 43.2 cm / 12” x 20” x 17”

Weight: 22.7 kg / 50 lbs

Power requirements: 100-240 VAC, 8A; Power consumption: 0.8 kW (800 Watts)

Connectivity: USB, Wi-Fi, Ethernet

Certifications: CE certified, TUV certified
