Ystral 20D/F Dispersion Tool

Ystral Shaft 20D/F for drives from X10-series

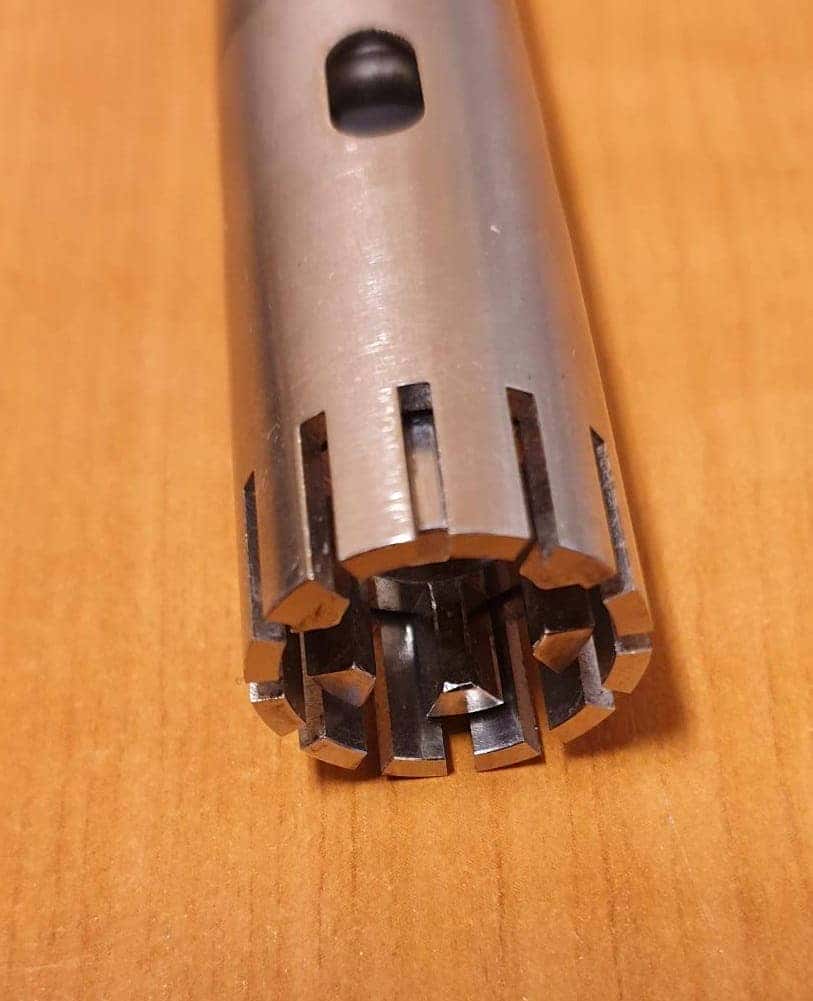

Dispersing-generator “fine”

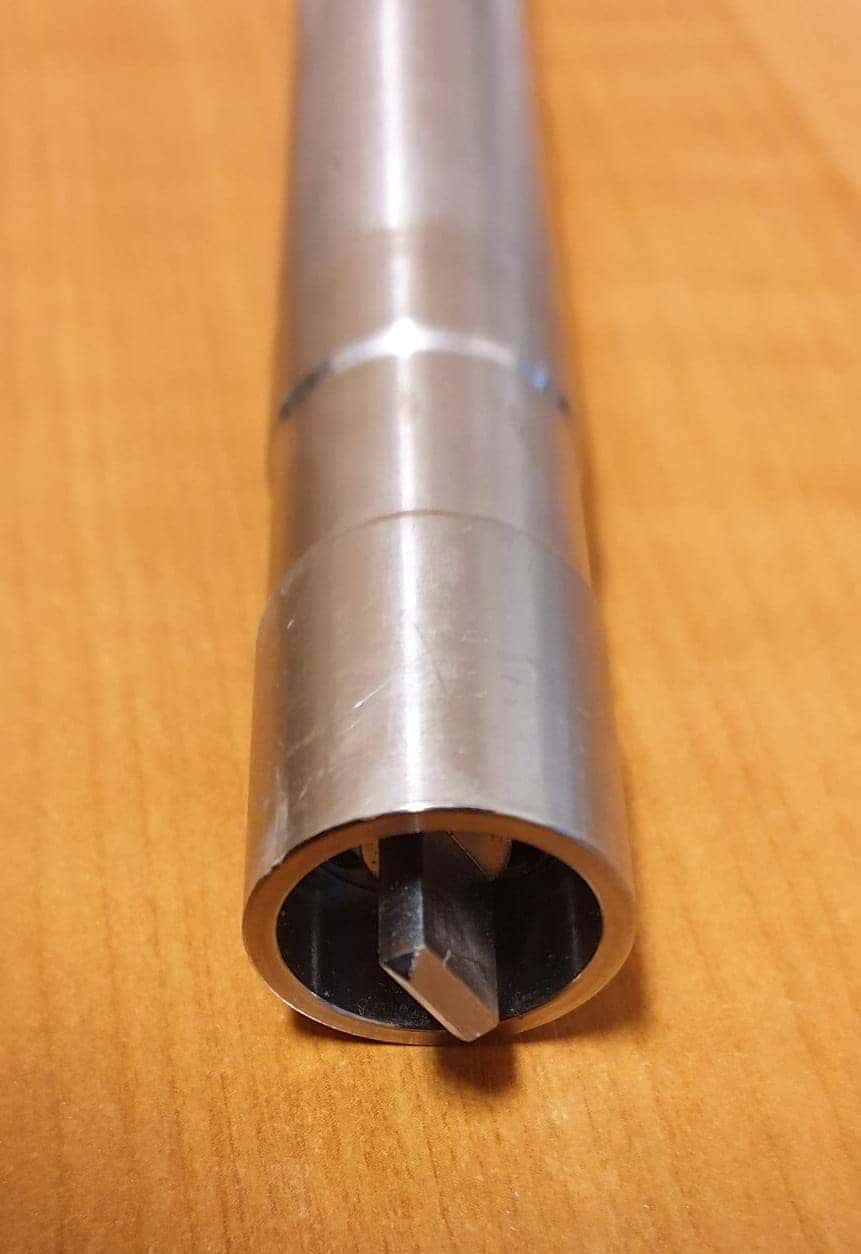

Fast detachable plug connection to the drive X10

Bearing and sealing located in immersed part

Dispersing-generator diameter: 20 mm

Consisting of stator and rotor

Stator slots width: 1,5 mm

Sealing/Elastomers: – Single acting mechanical seal in immersed part, lubricated by the processed product

Material: ceramic/carbon

Pressure resistant up to 6 bar

Vacuum tight up to 50% vacuum

Elastomeres: FKM (Viton), FDA (conform)

Immersion depth with generator max. 190mm

Parts in contact with product: stainless steel AISI316L/Ti (1.4404/1.4571)

Stainless steel bearings

Please note: The shaft is not suitable for dry running resp.
