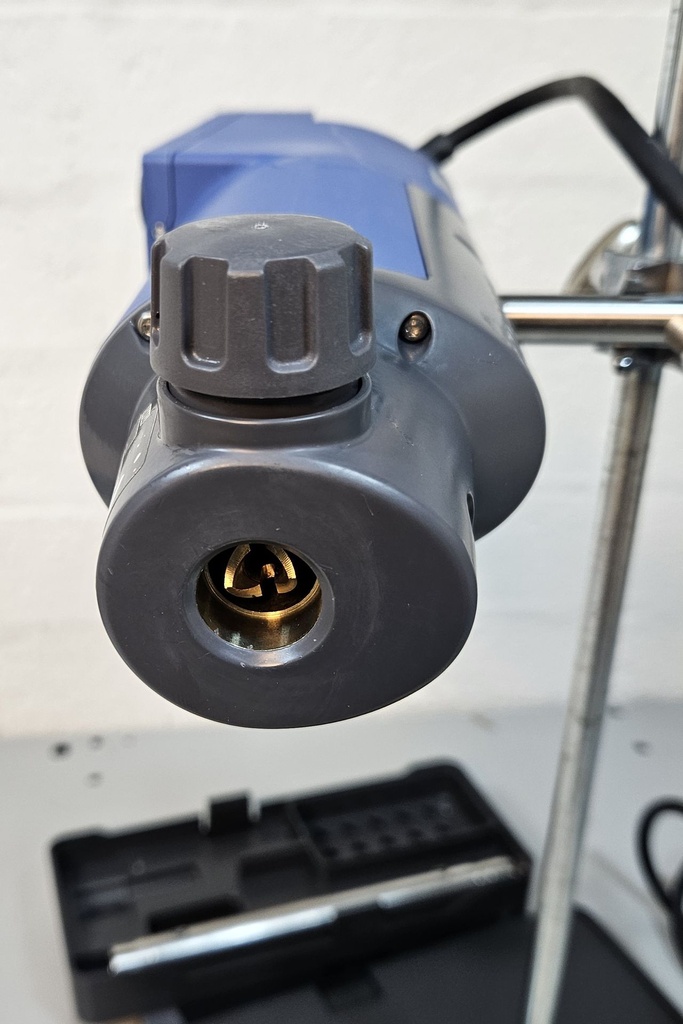

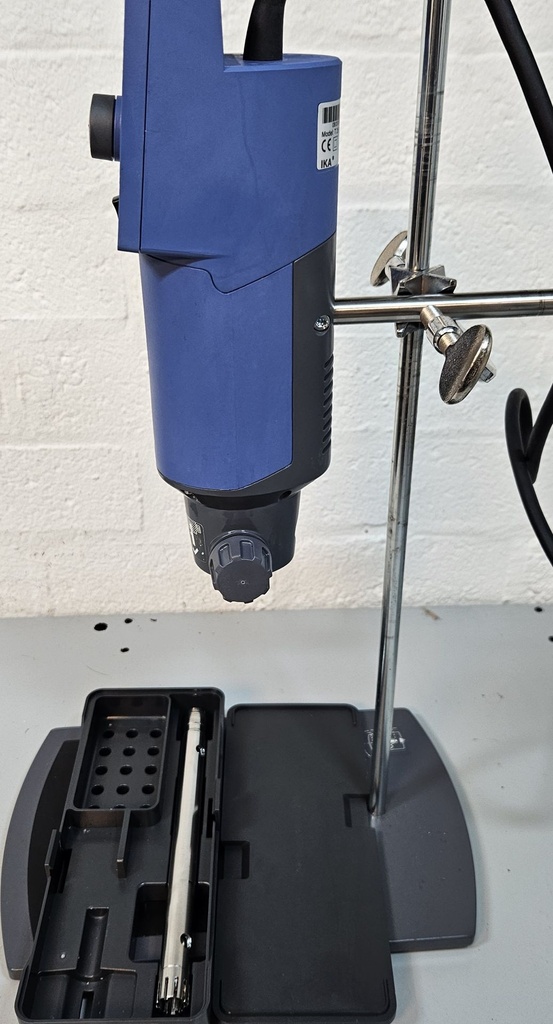

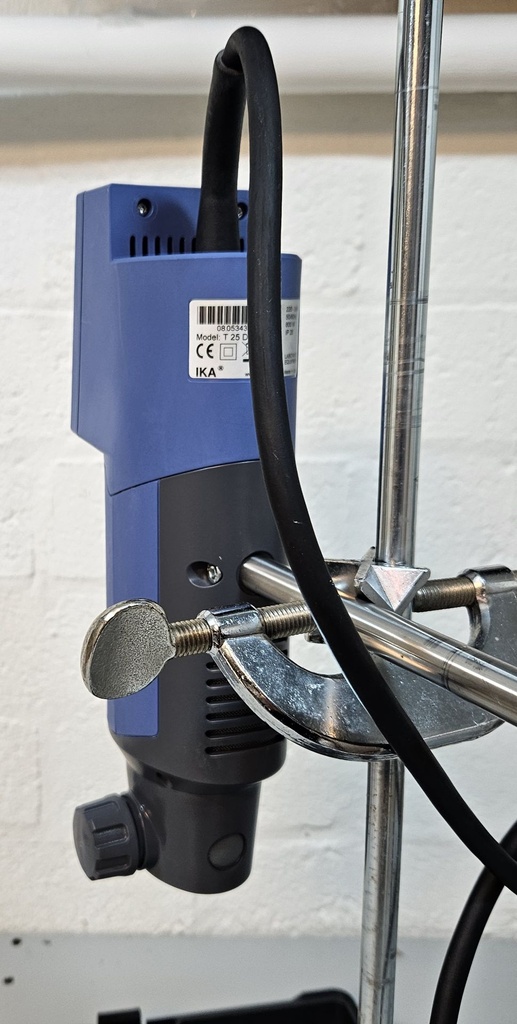

IKA T25 Digital met S25N-18G Dispersion Element

Ika T25D S2 digital ultra turrax with S25N-25F KG stainless steel 316 new dispersion instrument, motor with signs of use.

T 25 digital ULTRA-TURRAX High-quality dispersion instrument for volumes of 1 – 2000 ml (H2O) with digital speed display. It offers a wide speed range of 3000 – 25,000 rpm, allowing users to work at high peripheral speeds, even with small rotor diameters. A wide choice of dispersion elements adds versatility. Applications range from homogenizing wastewater samples, use in laboratory reactors, dispersion tasks under vacuum / pressure, and sample preparation in medical research.

Digital speed display

Electronic speed control

Electronic overload protection

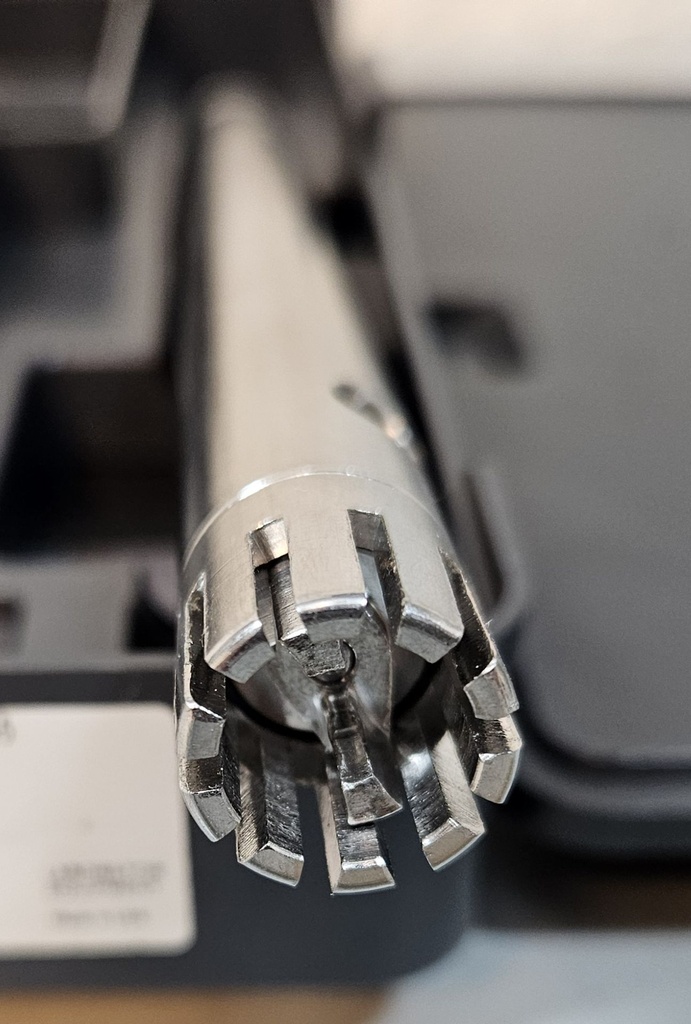

IKA S25N-18G dispensing element

Volume range min. (H2O) 0.01 l

Volume range max. (H2O) 1.5 l

Stator diameter 18 mm

Rotor diameter 13.4 mm

Gap between rotor and stator 0.25 mm

allowable Speed max. 25000 rpm

Circumferential speed max. 17.5 m/s

Immersion depth min. 40 mm

Immersion depth max. 165 mm

Shaft length 194 mm

Material in contact with medium PTFE, AISI 316L

pH min. 2

pH max. 13

Suitable for solvents yes

Suitable for abrasive substances yes

Working temperature max. 180 °C

Sterilization methods all methods

Ultimate fineness, suspensions min. 10 µm

Ultimate fineness, suspensions max. 50 µm

Ultimate fineness, emulsions min. 1 µm

Ultimate fineness, emulsions max. 10 µm
