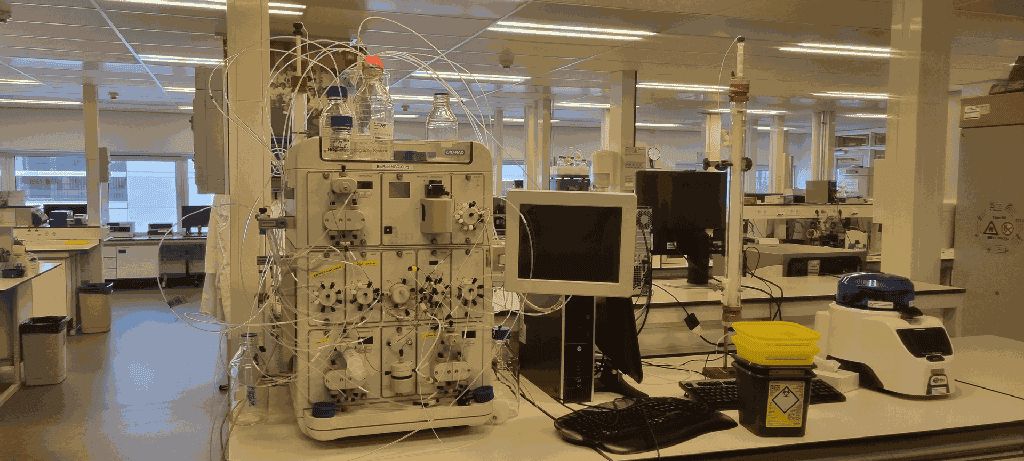

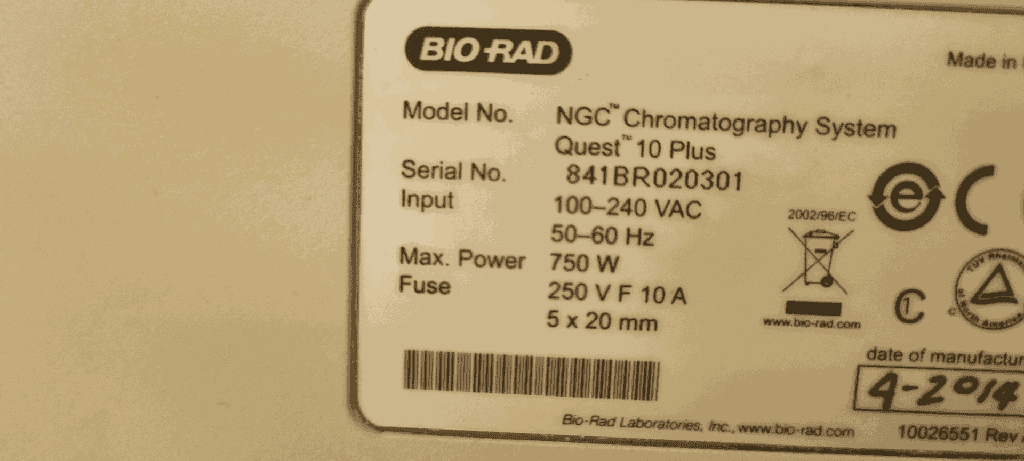

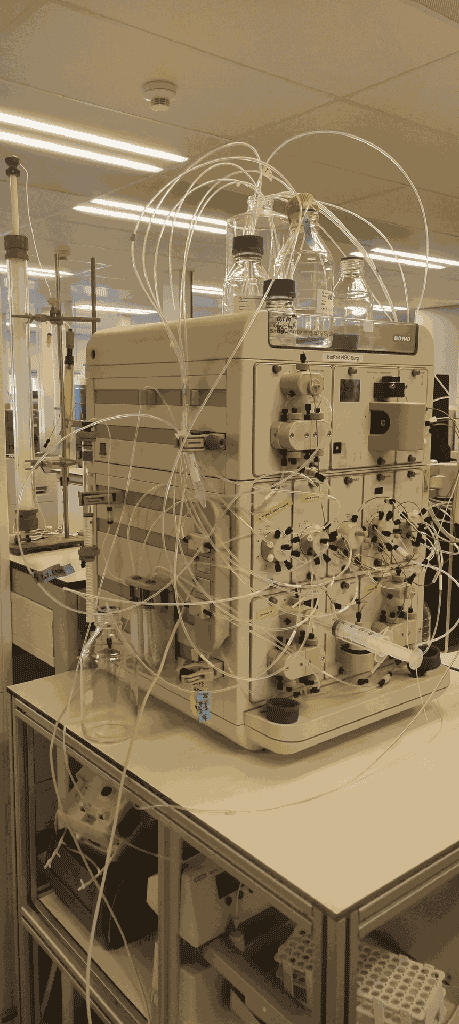

NGC Chromatography System Quest 10 Plus

788-0003 NGC Quest 10 Plus System
Includes:
– Two-tier base frame
– Two F10 pump modules
– Small 263 µL mixer module
including extension mixer barrel (750 µL)
– Multiwavelength detector module for simultaneous detection of 4 wavelengths between 190-800 nm and salt gradient monitoring with integrated conductivity monitor, including tubing and fittings and one 5 mm flow cell
– Sample injection valve set
– Integrated touchscreen
– ChromLab software
– Two blank modules
– Buffer tank
– Communication adapter

788-4006 NGC Inlet Valve Module
Includes necessary tubing and fittings

788-4004 NGC Sample Pump Module 100
Includes:
100 ml/min sample pump set with necessary tubing and fittings for creating Buffer Gradients

788-4012 NGC Column Switch Valve Module (10 ml)
Includes
– Required tubing and fittings

788-4000 NGC Expansion Frame Tier 3
Pack of 1, expands a 2-tier NGC system to a 3-tier system by adding additional plug-and-play modules

788-5038 NGC Column Holder
Pack of 1, magnetic holder, slides into the slots of the column holder to secure long columns to the instrument side

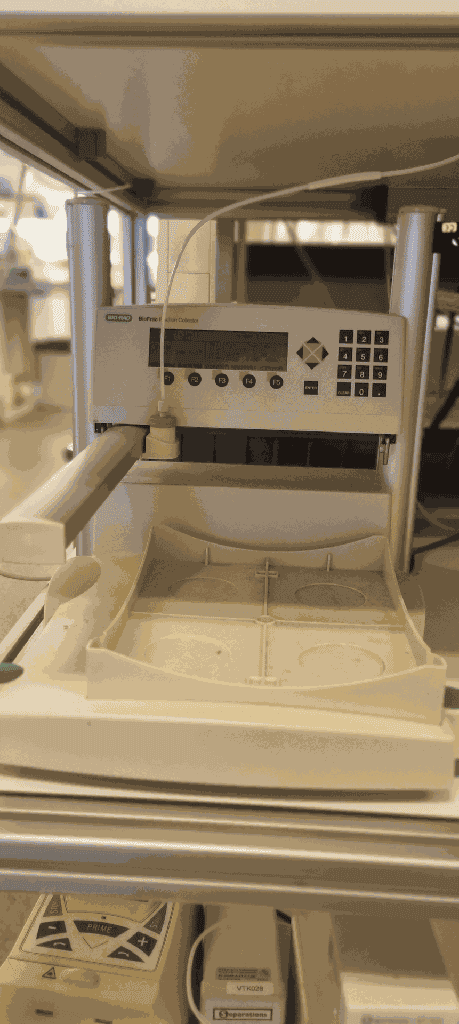

741-0002 BioFrac Fraction Collector
Includes: Rack Set F1: 2 x flatpack, with numbered tube positions, each suitable for 90 tubes, 12-13 mm, BioFrac diverter valve, fitting set

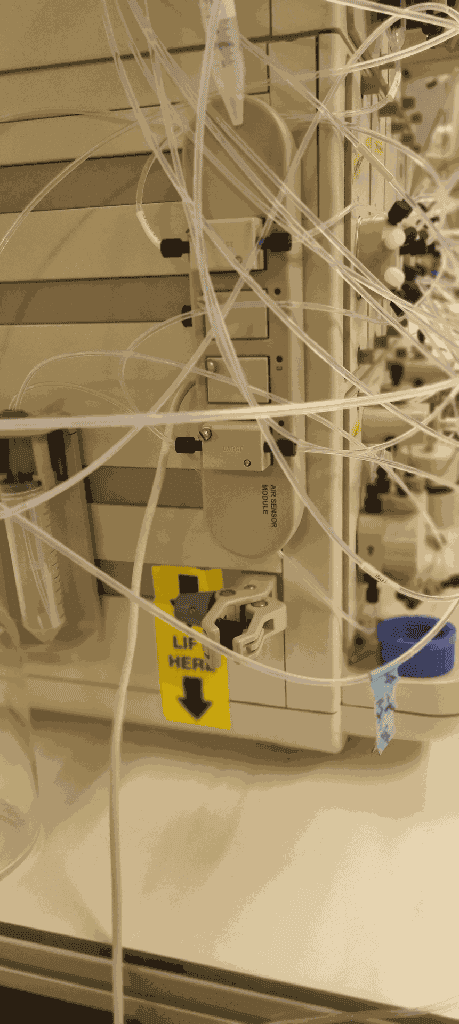

788-5017 NGC Air Sensor Module
For detecting the end of buffer and sample, protects against the Air ingress into pumps and columns, supports up to 4 air sensors (large and small diameter).
Includes:
– 2 large air sensors

741-0088 BioFrac Microplate Drop Head Kit
