Thermo SPD2010 SpeedVac Vacuum Centrifuge

Thermo Scientific Integrated SpeedVac Systems are complete systems for solvent evaporation, sample concentration and drying. SPD systems use a patented technique that combines centrifugal force, vacuum and applied heat to eliminate sample bumping and foaming. Application of thermal energy to the sample during concentration counteracts the natural evaporative cooling effect that slows the drying rate.

The SPD2010 systems integrate a SpeedVac concentrator, an oil-free vacuum pump, and a refrigerated vapor trap into a single compact package.

Temperatue setting: 45 – 80°C in 5°C increments

Timer settting (x2)(Heat and Run seperate): 1 min to 9 hours and 59 min, continuous

Concentrator capacity: 500 mL

Refrigerated trap: -50°C

Vacuum pump displacement (50/60 Hz): 30/36 l/min

Maximum vacuum: 7 Torr

Vacuum level control: 30 to 5.1 torr in 0.1 increments

Vacuum ramp setting: 1 to 5

Dimensions (WxDxH): 770 x 670 x 470 mm

Weight: 83 kg

Equipped with:

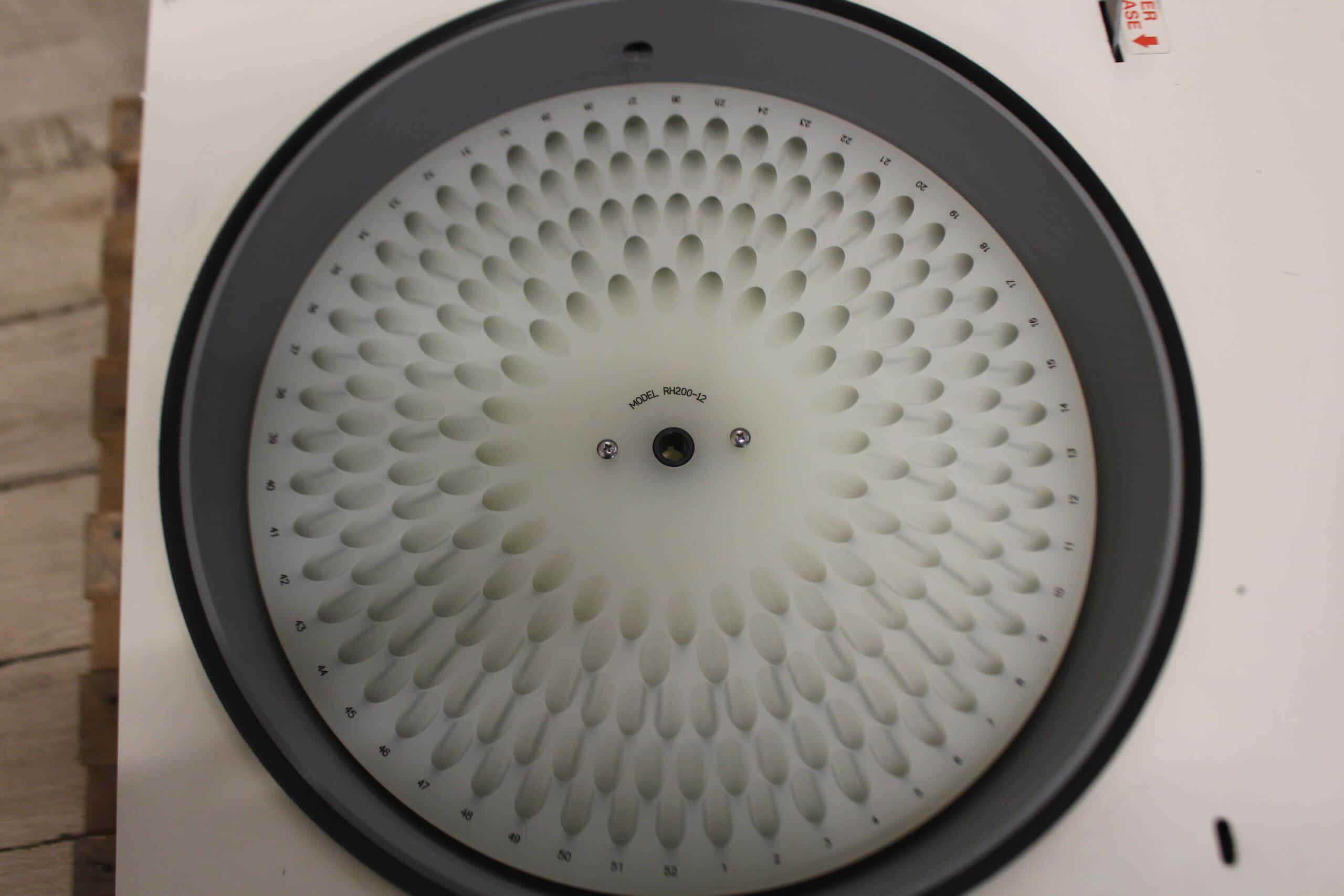

Thermo RH200-12 fixed angle rotor (200x 1.5 – 2.0 ml microcentrifuge tube capacity)
