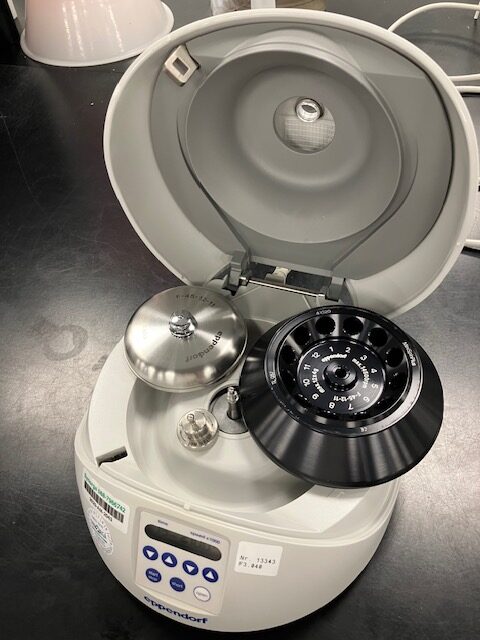

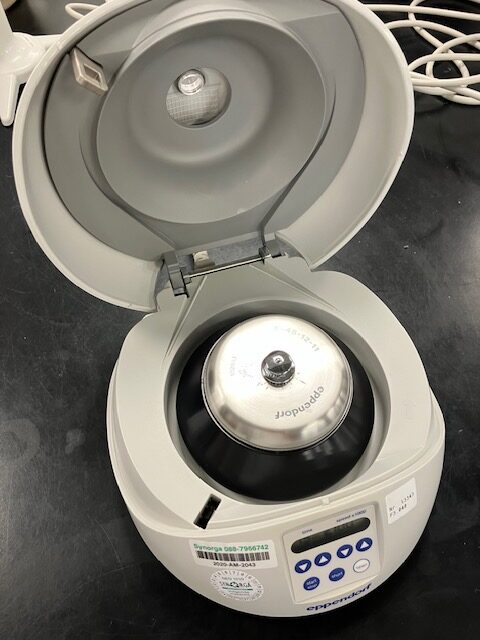

Eppendorf Mini Spin Plus Centrifuge

Eppendorf MiniSpin plus Centrifuge – Rotor F-45-12-11

The Eppendorf MiniSpin plus is a compact, powerful, and user-friendly mini-centrifuge for routine laboratory use. Thanks to its compact design, the centrifuge can easily be placed on an individual workstation, while the high maximum centrifugal force is suitable for a wide range of applications involving microtubes.

The centrifuge is equipped with an F-45-12-11 fixed-angle rotor (45°) with a capacity of 12 × 1.5/2.0 mL tubes. The MiniSpin plus reaches a maximum speed of 14,500 rpm, corresponding to a maximum relative centrifugal force of 14,100 × g.

The MiniSpin plus also features automatic rpm/RCF conversion and offers an extended centrifugation time of up to 99 minutes or continuous operation. Technical specifications
Specification Data
Manufacturer Eppendorf
Model MiniSpin plus
Type Mini centrifuge
Cooling Non-cooled
Rotor F-45-12-11
Rotor type Fixed-angle rotor, 45°
Rotor capacity 12 × 1.5/2.0 mL tubes
Max. speed 14,500 rpm
Max. RCF 14,100 × g
Speed ​​setting 800–14,500 rpm
Adjustment steps 100 rpm
Max. tube diameter 11 mm
Max. Rotor load 12 × 4 g
Timer Up to 99 min
Continuous spin Yes
Automatic rpm/RCF conversion Yes
Power supply 230 V, 50–60 Hz
Power consumption 85 W
Current consumption at 230 V 0.6 A
Dimensions (W × D × H) 225 × 230 × 130 mm
Weight without rotor 3.7 kg
Weight F-45-12-11 rotor 450 g
Operating temperature 10–40 °C
Relative humidity 10–75%, non-condensing
