Tuttnauer 6990-1H Autoclave

The 69 Large Capacity Autoclave Series comes with (4) FDA cleared cycles: IUSS, wrapped, IUSS delicate and wrapped delicate. Included are two test cycles, Bowie Dick and Vacuum test.
Powerful, reliable and customizable – Larger chamber size maximizes productivity by sterilizing a greater amount of heat and moisture-stable items. Sleek design and user-friendly controls, the 69 Large Capacity Series autoclave offers standard multiple cycle options with a full temperature range.

Features:
Eco-Friendly: Utilizing tap or chilled water supplies can reduce water consumption up to 90% making your facility greener and more cost-efficient.
Diverse Load Types: Comes with a total of 9 programs that range in temperature from 105°C – 137°C.
Advanced Touch Control: The included LCD screen and touch pad interface gives you an easy-to-read overview of real-time chamber values.
Stainless Steel Piping: Piping and connectors are made of top-quality stainless steel to avoid corrosion and contamination of the sterilized loads
Load Traceability: Transfer cycle data to a PC with optional remote monitoring software and barcode scanner.

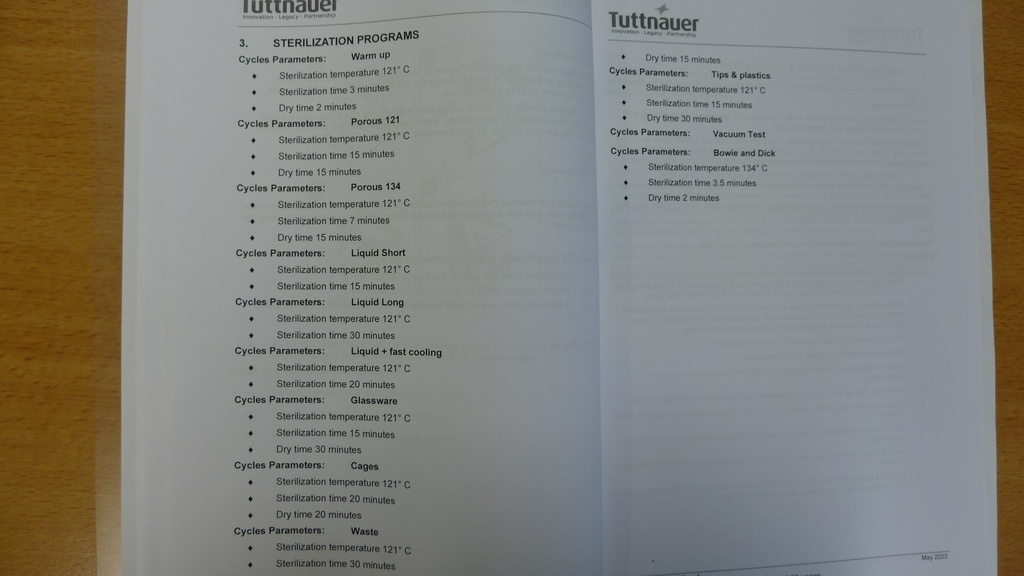

Programs: See images

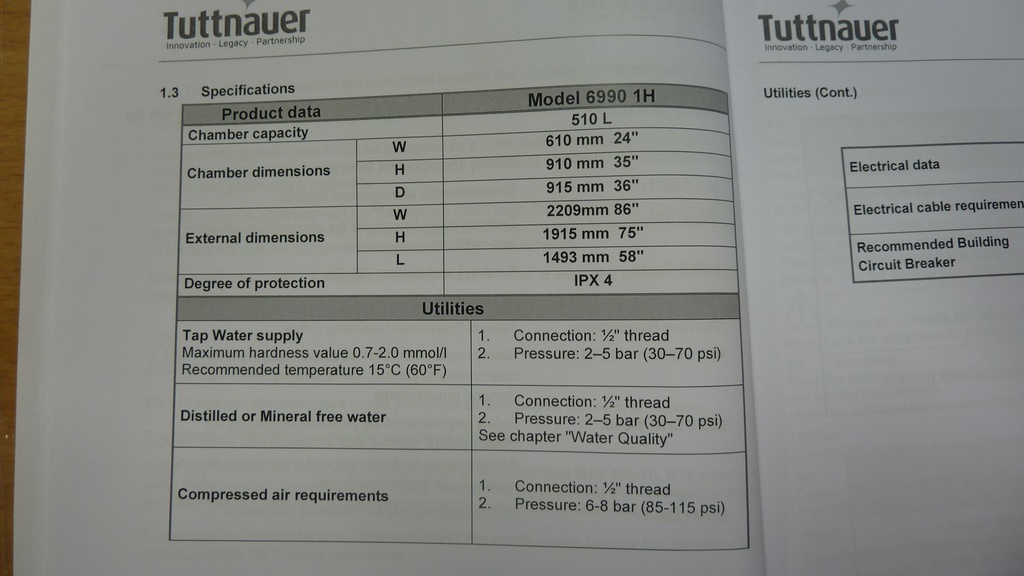

Specifications:

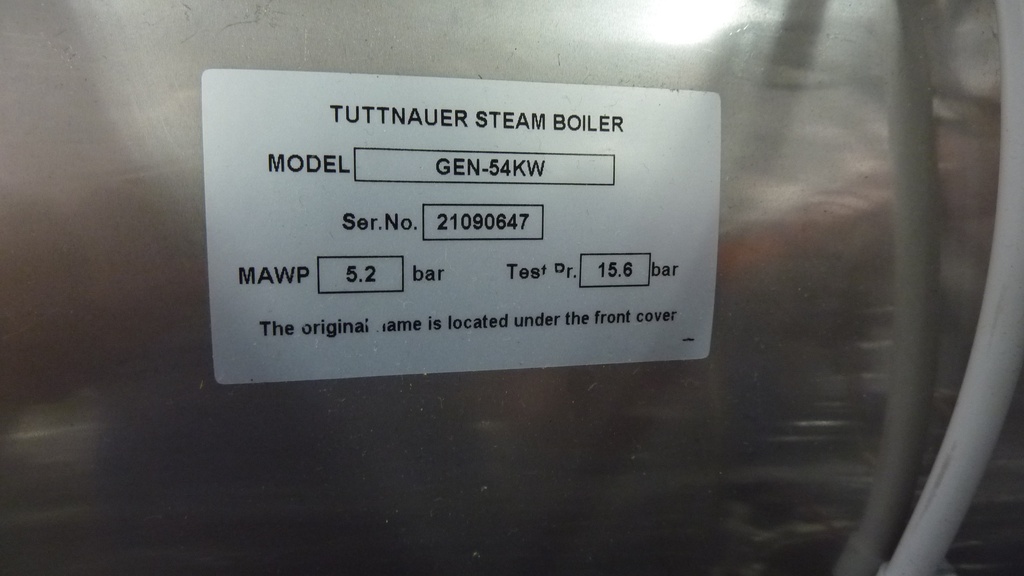

Internal steam generator
Chamber dimensions (WxHxD): 610 x 915 x 915 mm
Chamber volume: 510 L
Dimensions (WxHxL): 2209 x 1915 x 1493 mm

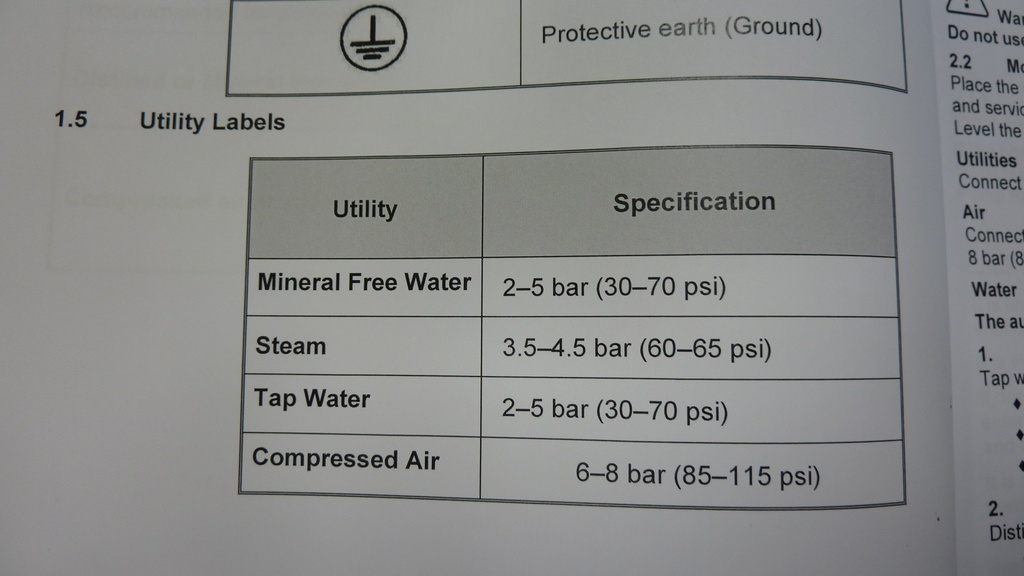

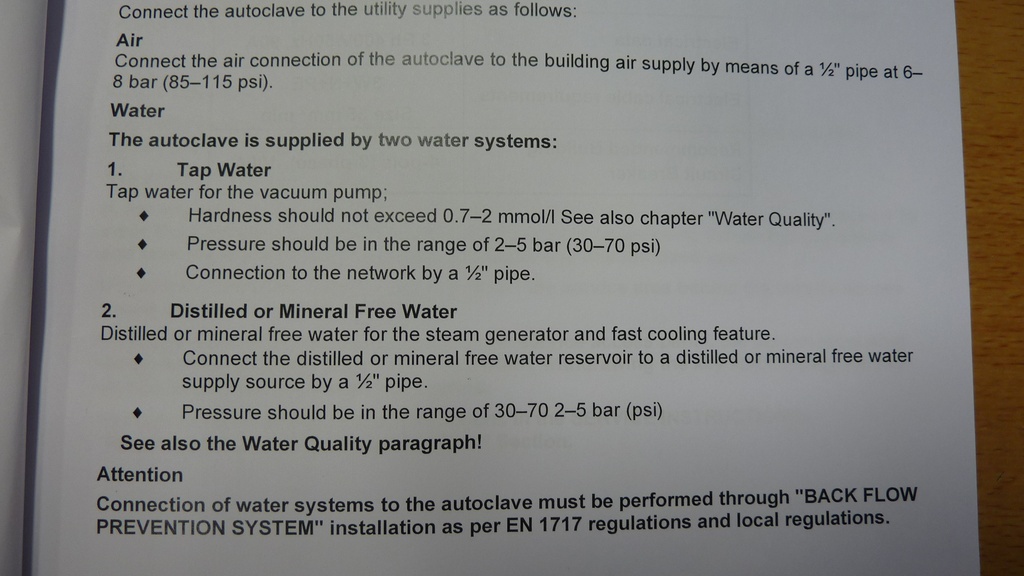

Required connections:

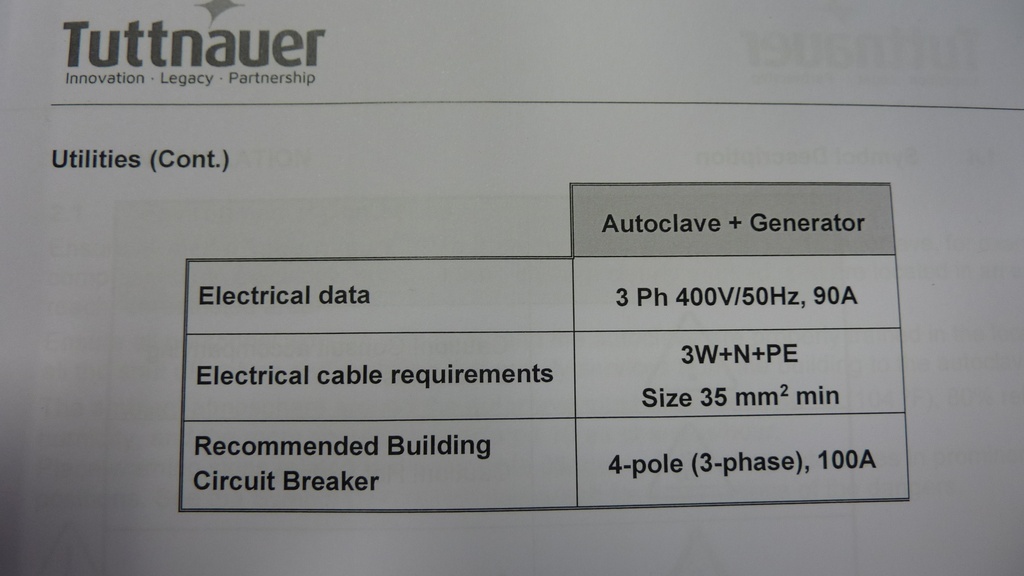

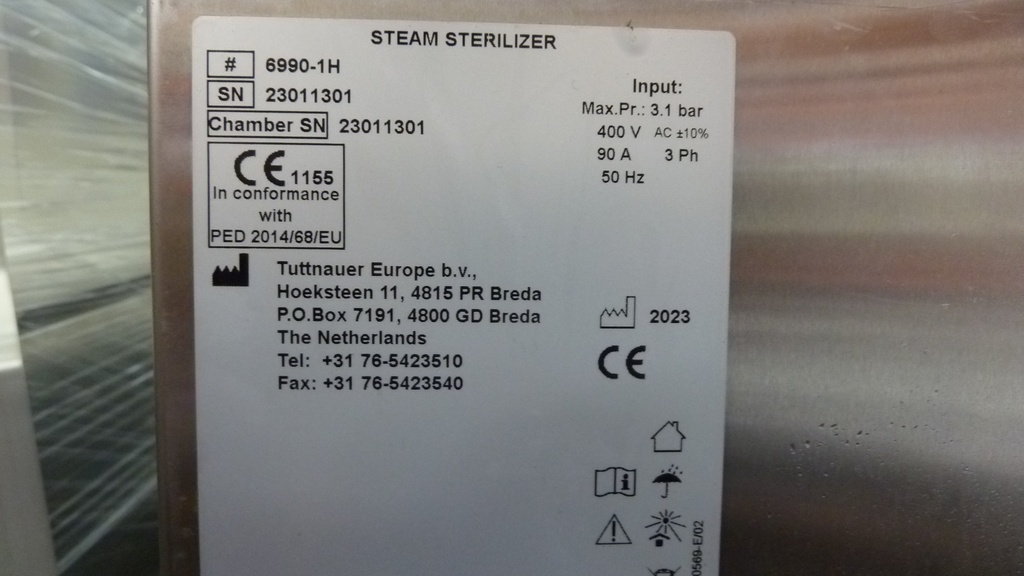

Electricity: 3-phase / 440 V / 90 A
Tap water: 1/2 inch, 2 – 5 bar
Demineralized water: 1/2 inch, 2 – 5 bar
Compressed air: 6 – 8 bar
Drain: 10 – 15 cm

Includes:

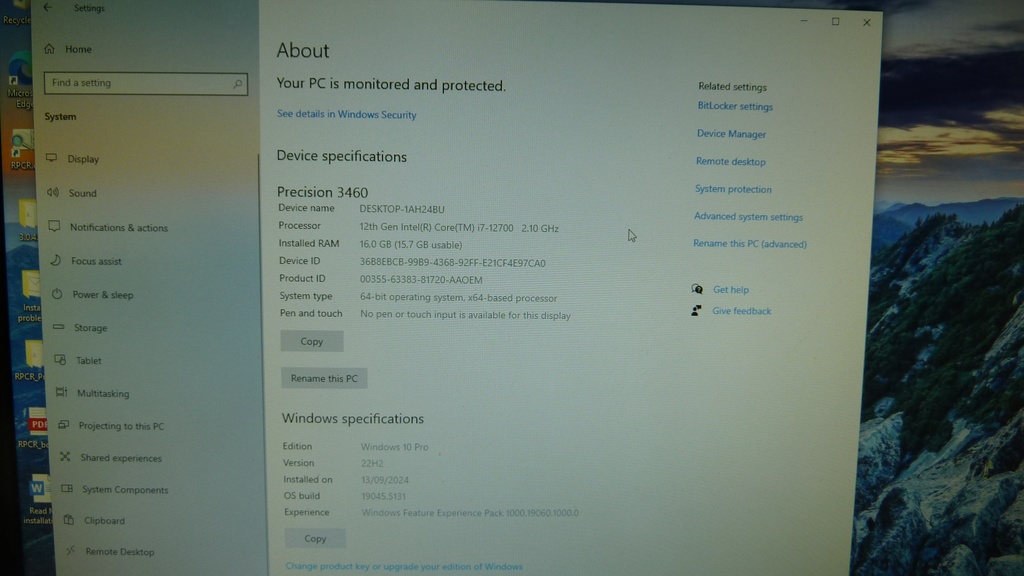

PC
Operator and technical manuals
