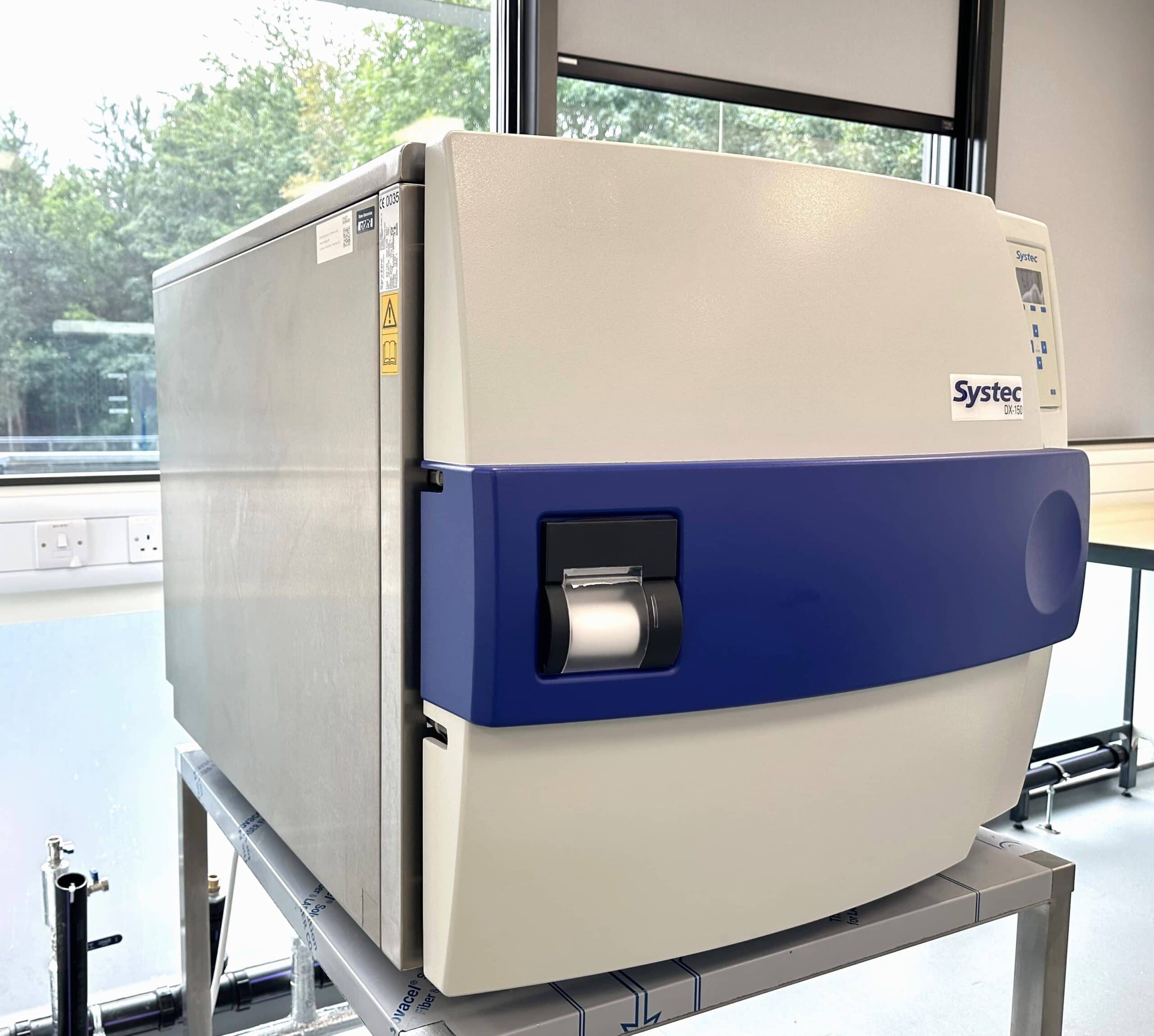

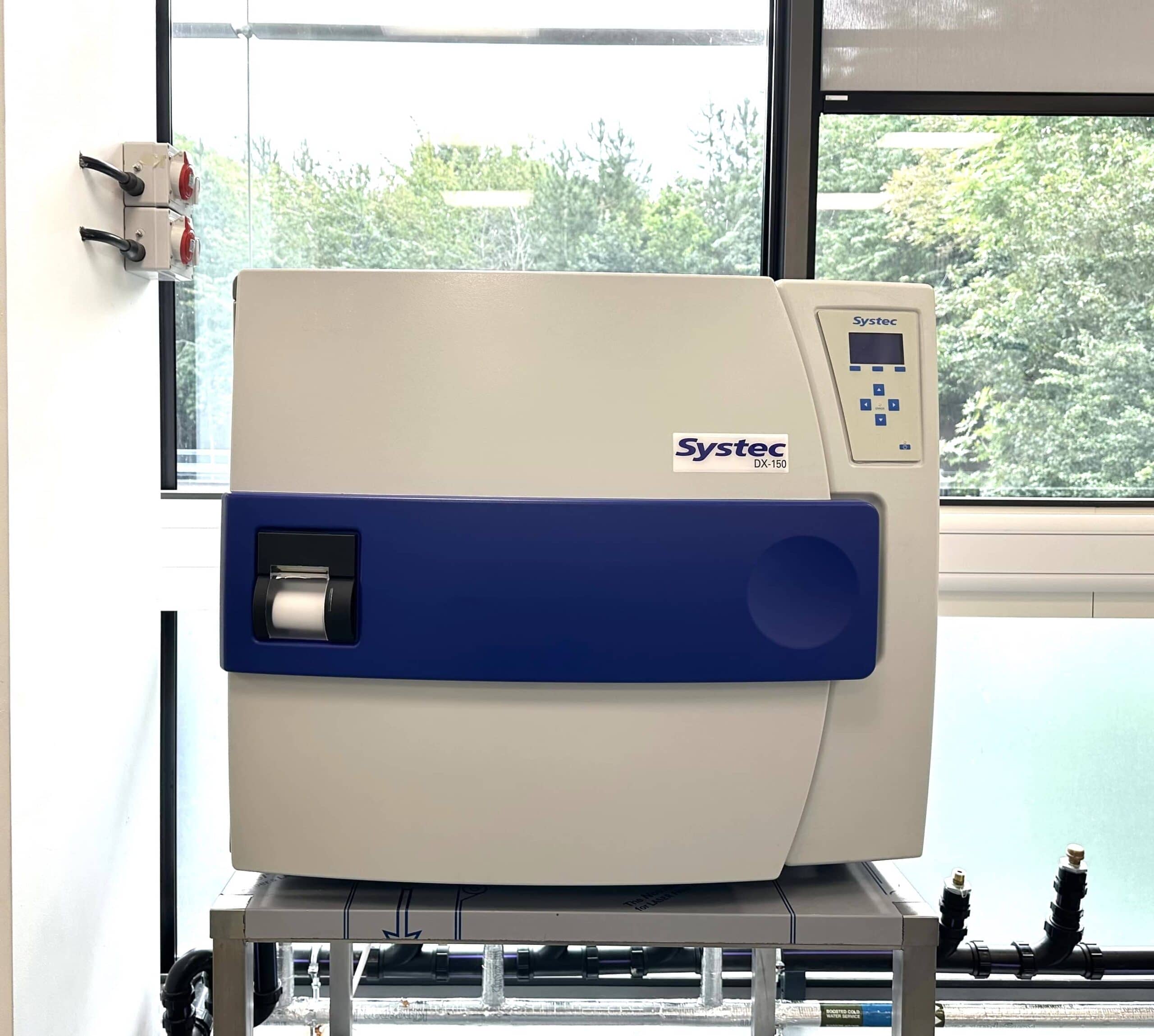

Systec DX-150 Autoclave

Systec DX-150 Autoclave/Sterilizer

Production date by Systec: September 2021

Purchase date: January 26, 2022

Chamber volume: 162 liters

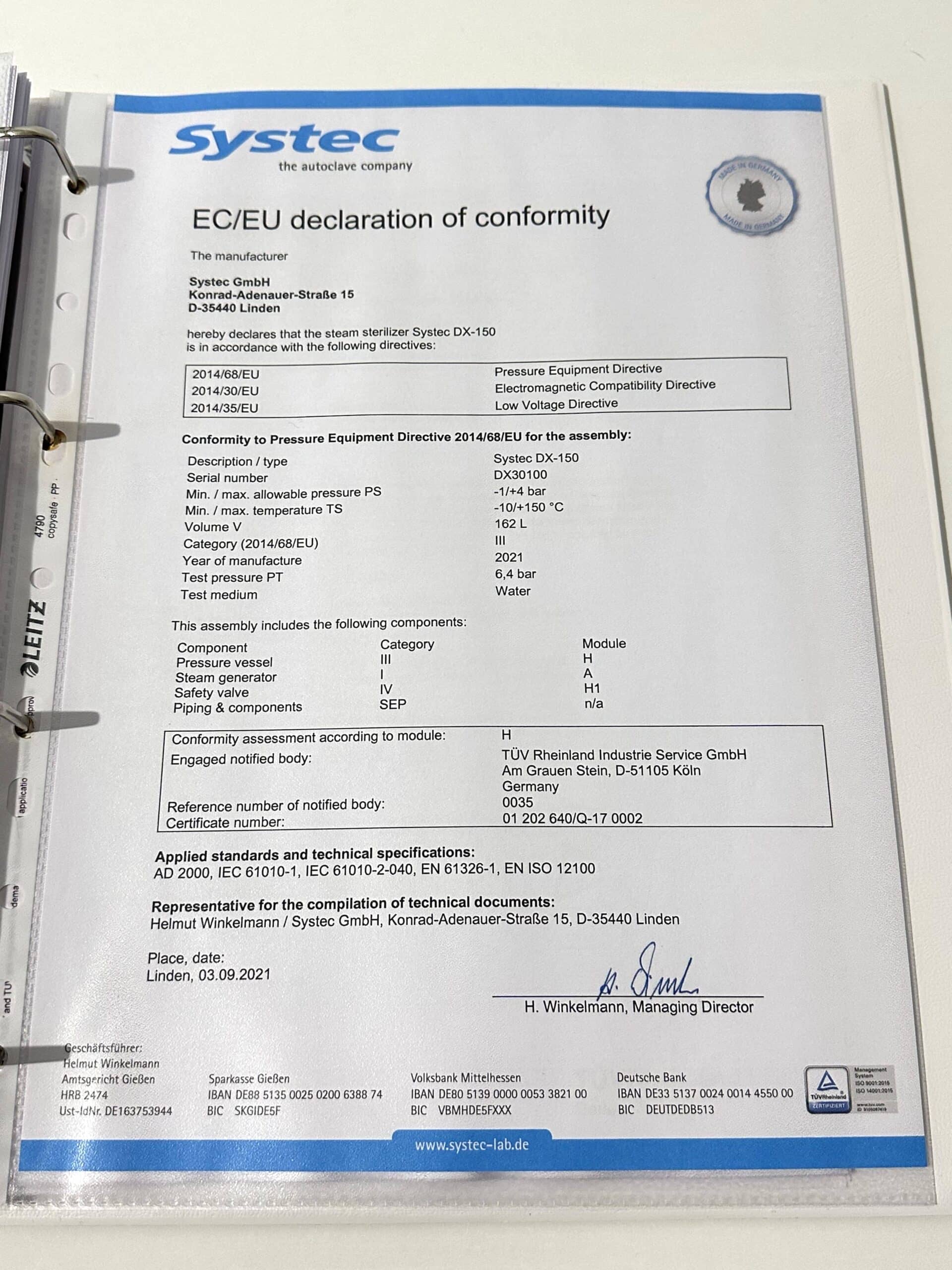

Includes stainless steel/inox autoclave table, software and manual/certificates.

Standard options for the DX-150:

Integrated, separate steam generator

Internal heating elements inside the autoclave chamber

Housing, supporting frame and pressure vessel made of corrosion-resistant stainless steel

Temperature and pressure range 140 °C, 4 bar absolute pressure (except for Systec D-23)

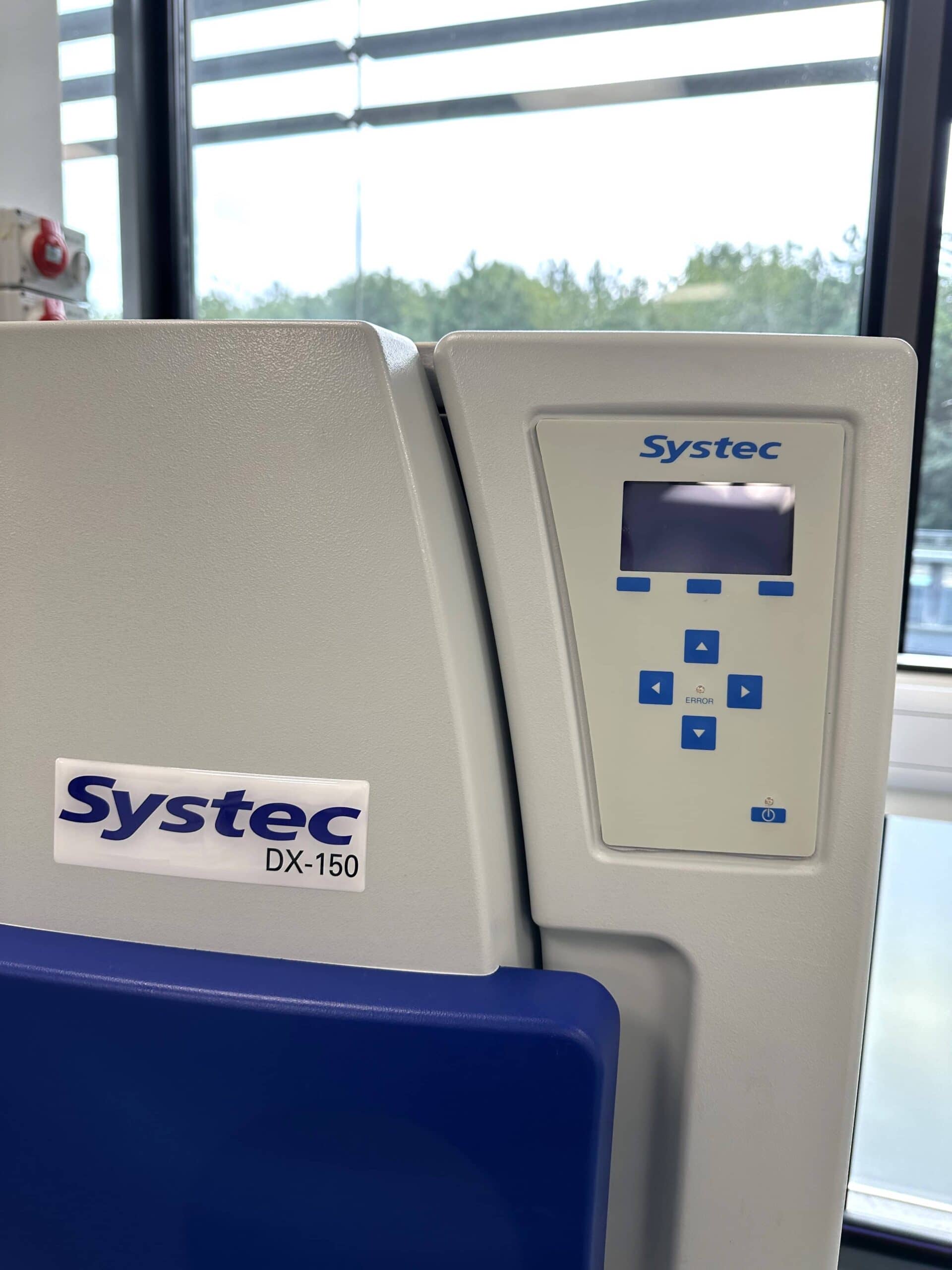

LCD display and fully automatic microprocessor control

Number of sterilization programs: up to 25* sterilization programs

Code-protected access rights for changing parameters and further safety-related interventions

Internal memory for storing up to 500 sterilization cycles

Timer to start programs

Autofill: automatic supply of demineralized water for steam generation

Flexible PT-100 temperature sensor

Additional temperature sensor in condensation drain

Temperature retention function for liquids after program completion

Special program for Durham pipes

Calculation of F0 value

Special program for waste sterilization with pulsed heating for more efficient air extraction

Water-cooled steam discharge, thermostatically controlled

Programmable automatic door opening upon program completion

RS-232 interface for external data transfer (network compatible)

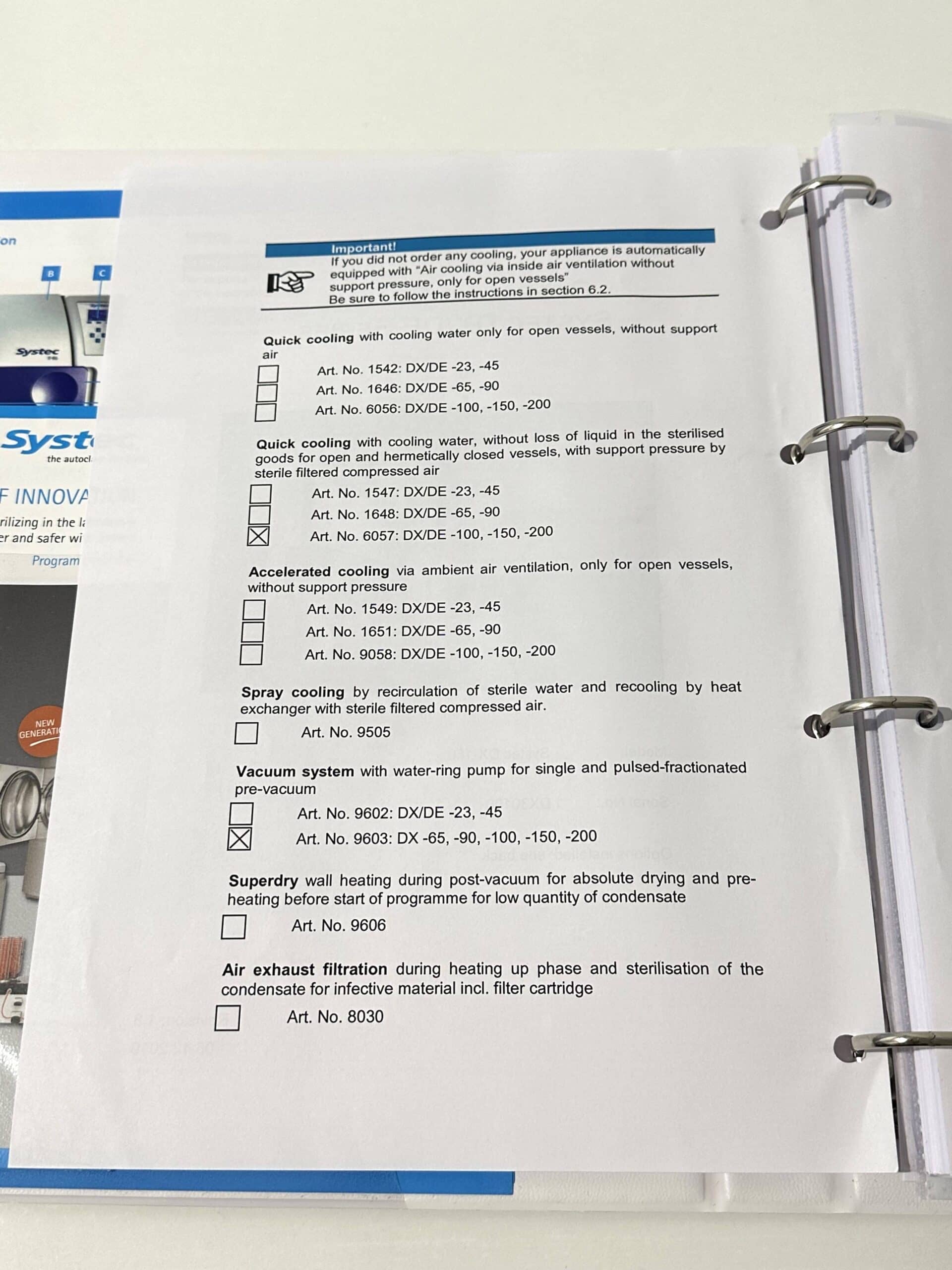

Additional options:

Rapid cooling: with cooling water, without loss of liquid in the sterilized goods for open and hermetically closed vessels, with supporting pressure by sterile filtered compressed air.

Vacuum system: with water-ring pump for single and pulsed fractional pre-vacuum.

Printer
