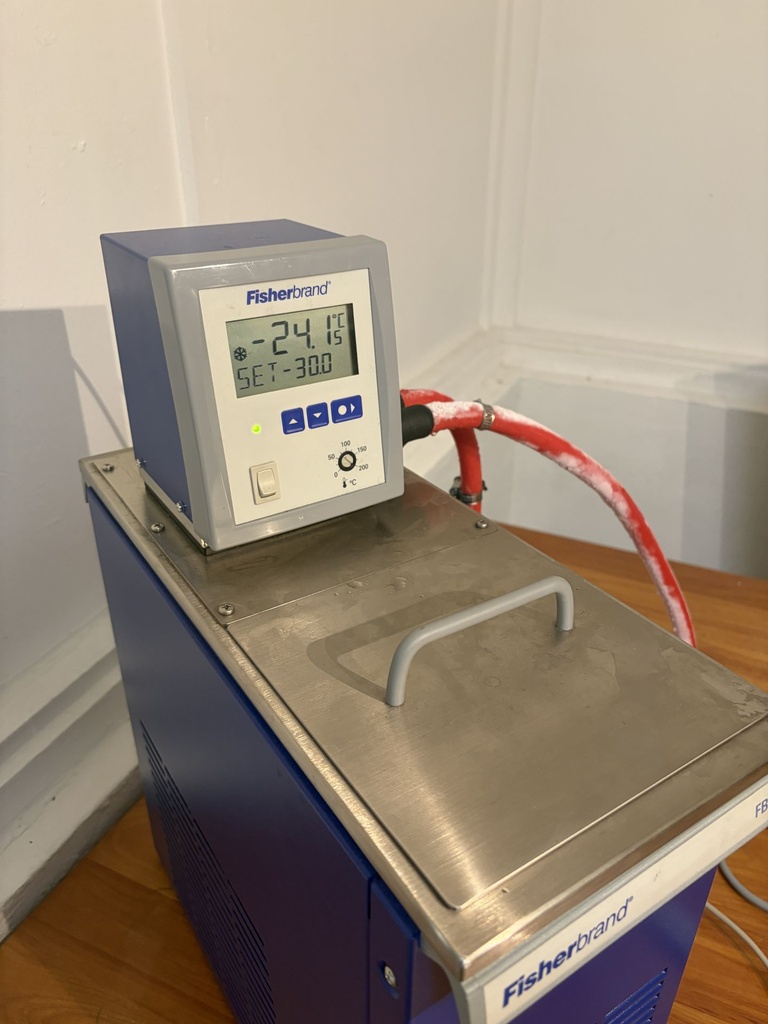

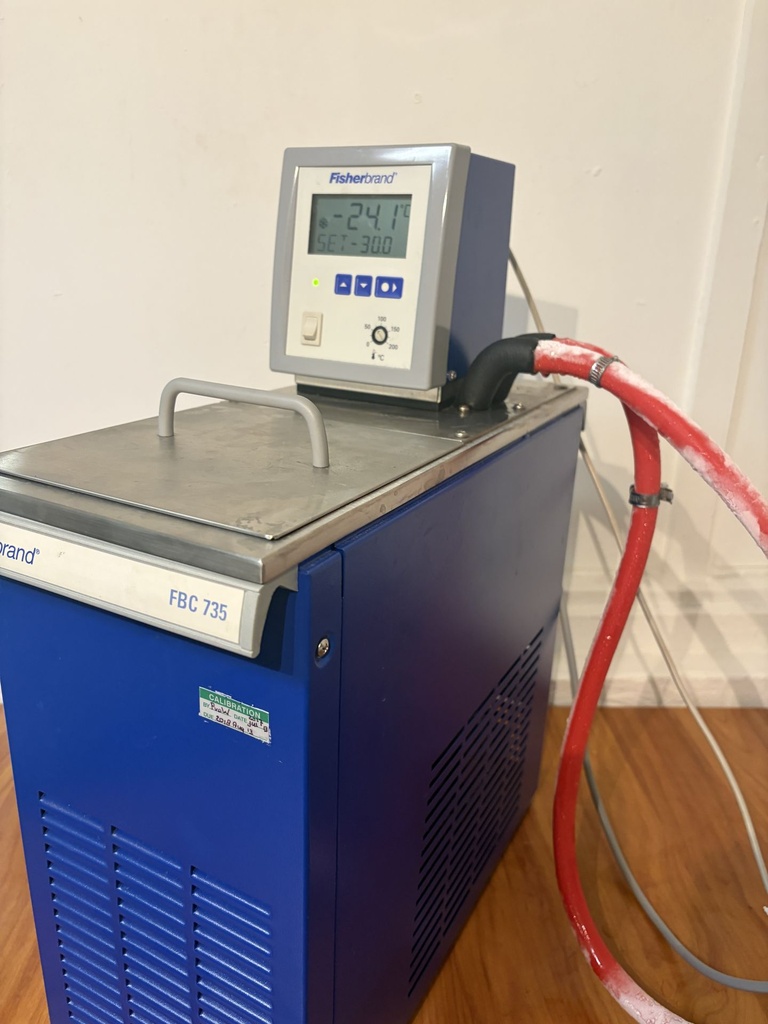

Fisherbrand FBC 735 Chilled Circulation Water Bath – -35 to +200 °C
€ 1.455,00 excl. tax
Fisherbrand FBC 735 Chilled Circulation Water Bath – -35 to +200 °C
The Fisherbrand FBC 735 is a powerful chilled circulation water bath designed for applications where liquids must be kept at a precisely set and constant temperature. Thanks to the integrated cooling and circulation pump, the system is suitable for both heating and cooling applications and can also be used for external temperature control.
The system features a 6-liter reservoir and an operating temperature range of -35 °C to +200 °C. For the specific unit used, operation was tested down to -25 °C in connection with the frost limit of the medium used.
The built-in pump delivers a maximum flow rate of 17 L/min and a maximum output pressure of 0.4 bar, ensuring good liquid circulation. Technical specifications
Specification Data
Manufacturer Fisherbrand
Model FBC 735
Type Chilled circulation water bath
Voltage 230 V
Power 2.3 kW
Capacity 6 liters
Operating temperature range -35 °C to +200 °C
Tested temperature range Up to -25 °C due to freezing limit of the medium
Ambient temperature 5 °C to 40 °C
Cooling Integrated
Circulation Yes
Fan Yes
Max. outlet pressure 0.4 bar
Max. flow rate 17 L/min
Bath opening 15 × 13 cm
Dimensions (W × D × H) 46 × 20 × 56 cm
Weight 24 kg
