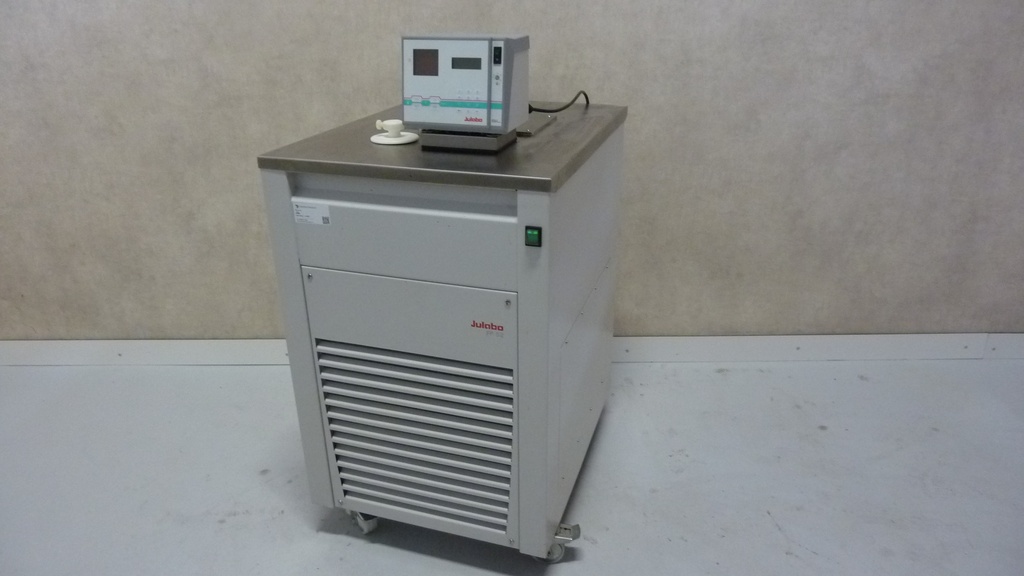

Julabo FP52 ULtra-Low Refrigerated Circulator

The FP52 series circulators are floor-standing models suitable for both cooling and heating. They feature a robust design, the “HighTech” model series, and are built for continuous, reliable performance in research and industrial environments.

Key features include:

ICC (Intelligent Cascade Control): A self-optimizing temperature control system for excellent stability.

Active Cooling Control (ACC): Provides active cooling across the entire operating temperature range, ensuring fast cool-down times, even at higher temperatures.

SMART PUMP: An electronically adjustable pump system with multiple stages for consistent pump performance.

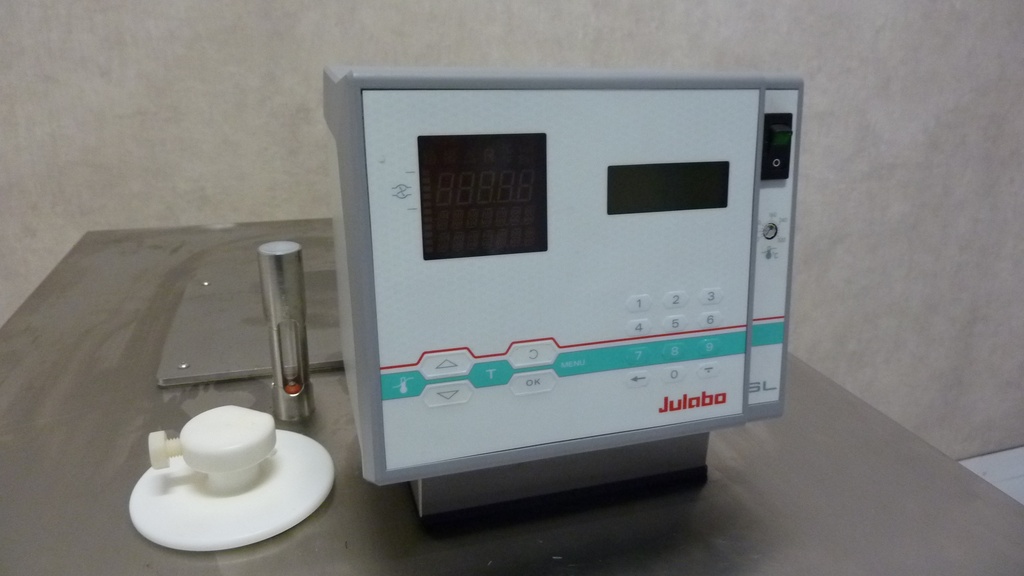

User Interface: Equipped with a VFD COMFORT DISPLAY and a backlit LCD DIALOG DISPLAY for easy interactive operation and programming.

Safety: Includes an early warning system for low liquid level, an adjustable high-temperature shutdown, and condensation/ice protection via a heated cover plate.

Technical Specifications

Specification Value (FP52-SL / FPW52-SL) Source

Operating temperature range -60°C to +100°C (some versions up to 150°C)

Temperature stability ±0.05°C (external)

Cooling capacity (at 20°C) 3 kW

Heating capacity 3 kW

Pump flow rate 22 to 26 l/min

Pump pressure 0.4 to 0.7 bar

Bath capacity 17 to 24 liters

Dimensions (W x D x H) 59 x 76 x 116 cm

Net weight 153 – 156 kg (depending on model)

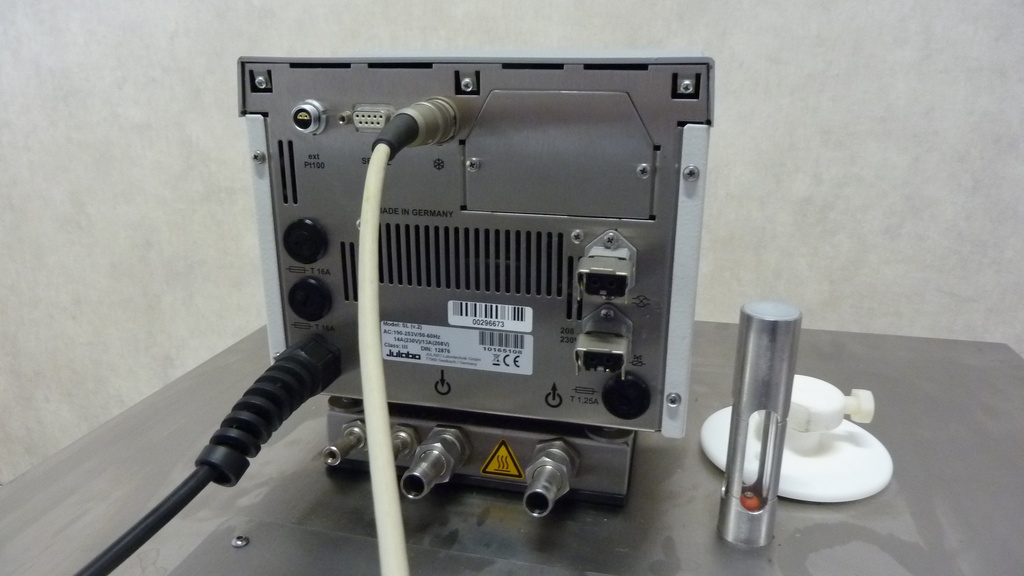

Interface RS232/RS485, external Pt100 sensor connection

Control unit not included
