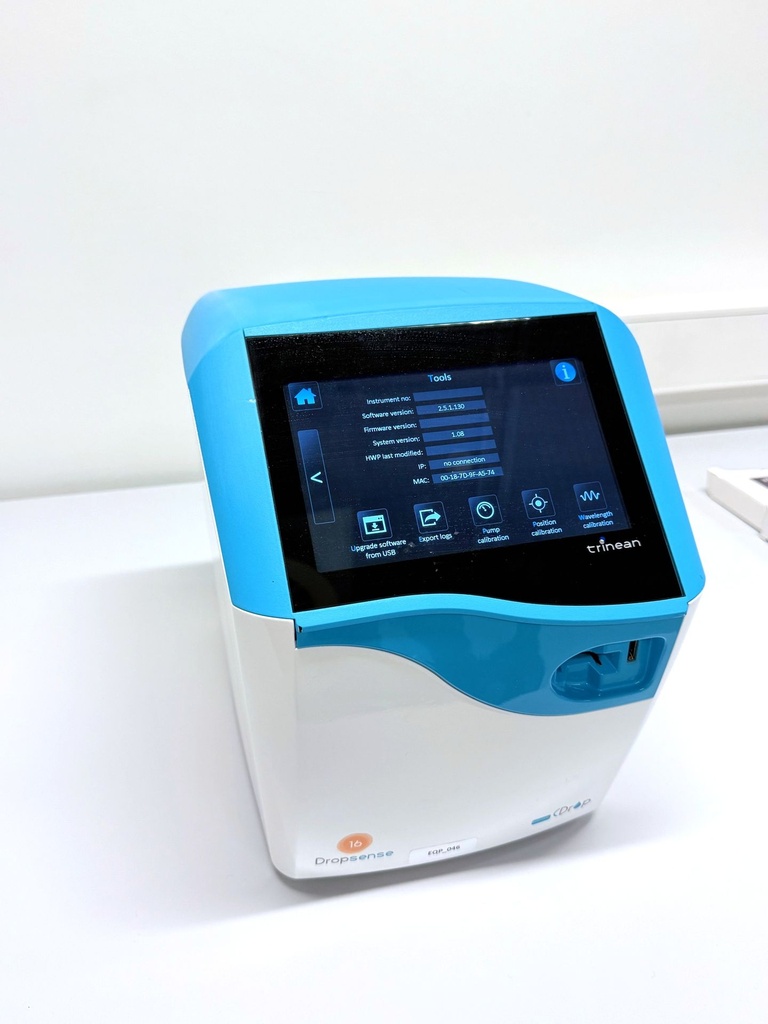

Trinean DropSense 16 Microvolume UV-Vis Spectrophotometer

The Trinean DropSense16 is an advancement to the traditional cuvette and single-droplet spectrophotometers. Measuring up to 16 samples per run, the DropSense16 enhances measurement, performance and speed by avoiding repetitive dilution, cleaning or dropping steps.

Nbr of actions on the reader (10 samples): 3

Time spent per sample: 7 seconds

No cross-contamination.

No sample evaporation.

Measurement range: 0.03 to 200 (10 mm equivalent)

Precision dsDNA: ≤ 100ng/μl – ± 1 ng/μl

Wavelength accuracy: 0.2 nm

Built-in computer with 7″ color touchscreen

Software: DropSense16 software + app selection

Triplicate measurements of a dNTP mix dilution series (0.03-160 OD) on DropSense16

DropSense16 slide-40:

Contains a single micro-cuvette with 0.5 mm optical path

Measurement range: 0.03 to 40 OD

dsDNA range: 1.5 ng/μl up to 2000 ng/μl

IgG protein range: 0.02 mg/ml to 29 mg/ml

DropSense16 slide-200:

Contains two micro-cuvettes with 0.1 and 0.7 mm optical paths

Measurement range: 0.03 to 200 OD

dsDNA range: 1.5 ng/μl to 10,000 ng/μl

IgG protein range: 0.02 mg/ml to 146 mg/ml

Connection: USB, network, QR code

Light source: Xenon flash lamp

Detector: Polychromatic spectrometer

Wavelength range | accuracy: 230-750 nm ≤ 0.2 nm

Absorbance precision | accuracy: 0.001 OD (0.5 mm path), 3% (0.66 OD at 350 nm)

Approval: CE, CSA, FCC
