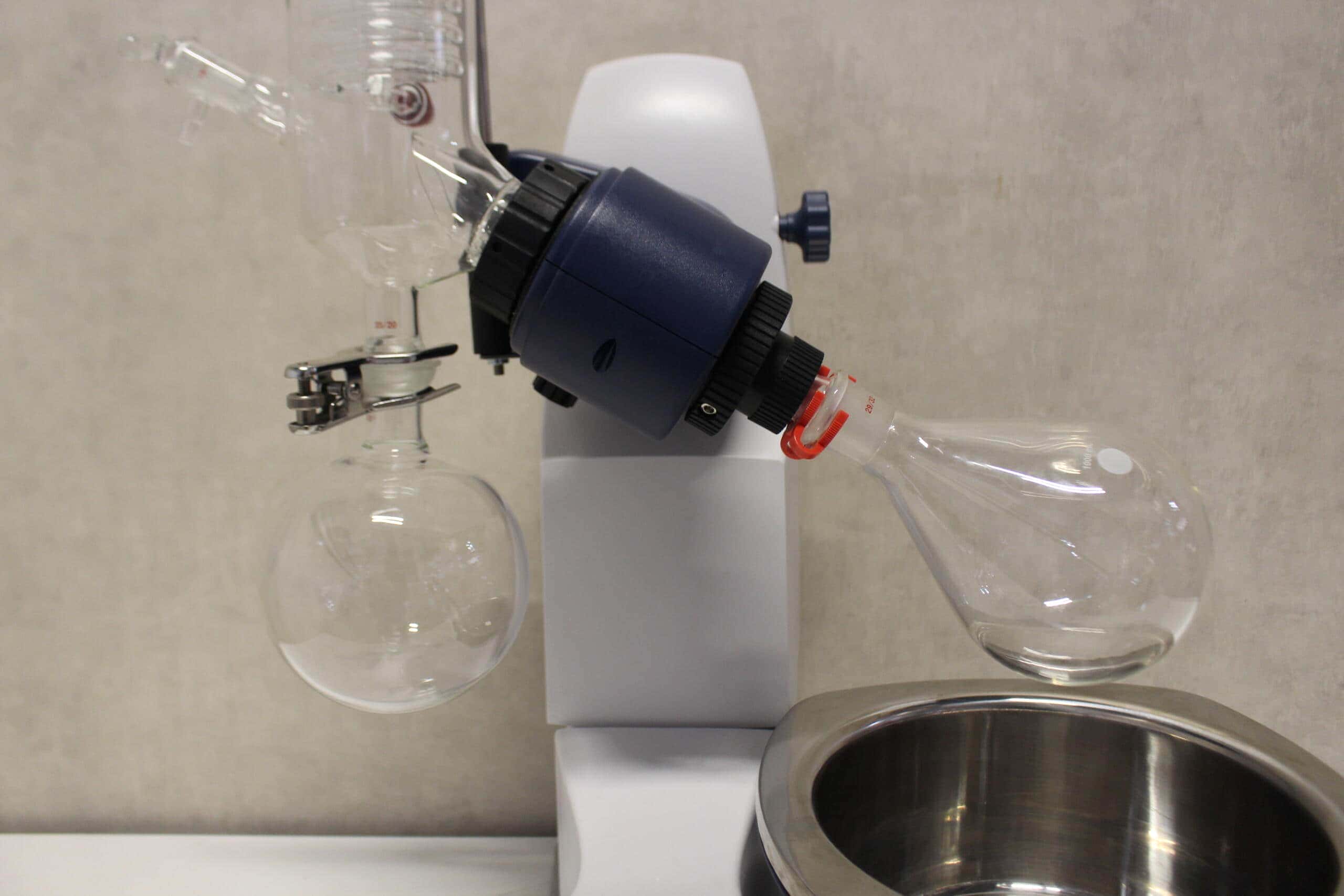

VWR LCD Rotary Evaporator

This is an essential instrument for use in chemical laboratories for efficient and gentle removal of solvents from samples by evaporation. It offers an excellent distilling solution in a wide range of applications.

Digital display shows both rotation speed and heating temperature allowing for optimal control of all distillation processes

Automatic motor lift releases the evaporating flask to a safe position in case of power failure

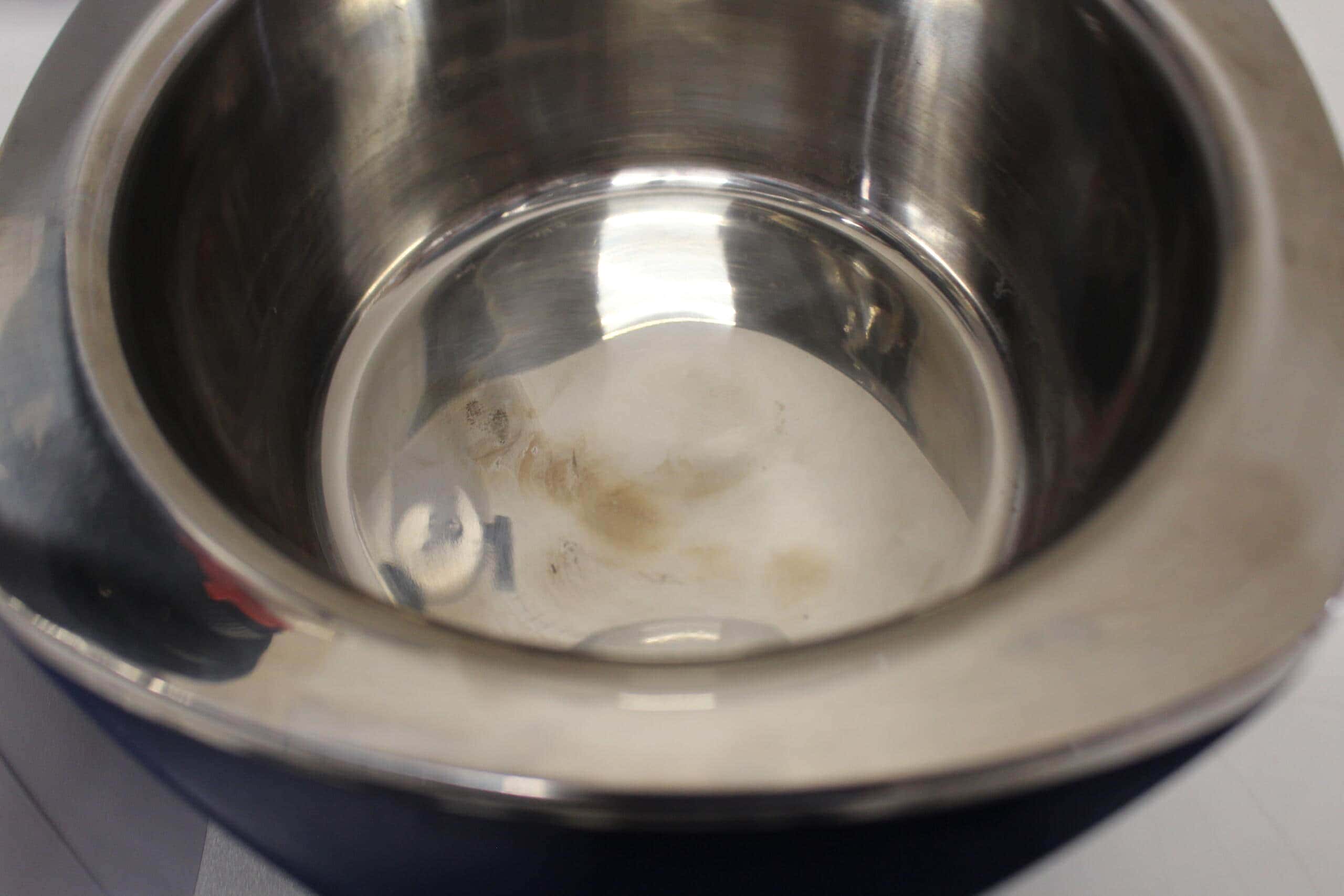

5 L heating bath with wide temperature range (ambient to 180 °C); water/oil heating mode can only be changed via a switch

Overheating protection temperature at 220 °C

Boil-dry protection, unit automatically powers off if heating without water/oil in the heating bath

The rotary evaporator features a speed range from 20 to 280 rpm, and interval operation in clockwise and anticlockwise directions for enhanced drying process. The condenser has cooling surface max. 1700 cm² which provides an excellent cooling effect. The ejection mechanism ensures easy removal of evaporating flasks. The PTFE double-spring sealing ring provides excellent sealing performance.

Rotation speed: 20 – 280 rpm

Evaporating rate: 26 ml/min (water)

Heating capacity: 1300 W

Cooling surface: 1700 cm²

Bath capacity: 5 L

Bath Ø: 235 mm

Temperature range: Ambient…180 °C

Max. flask capacity: 2 L

Lift distance: 150 mm (automatic)

Dimensions (WxDxH): 465 x 457 x 583 mm

Weight: 15 kg

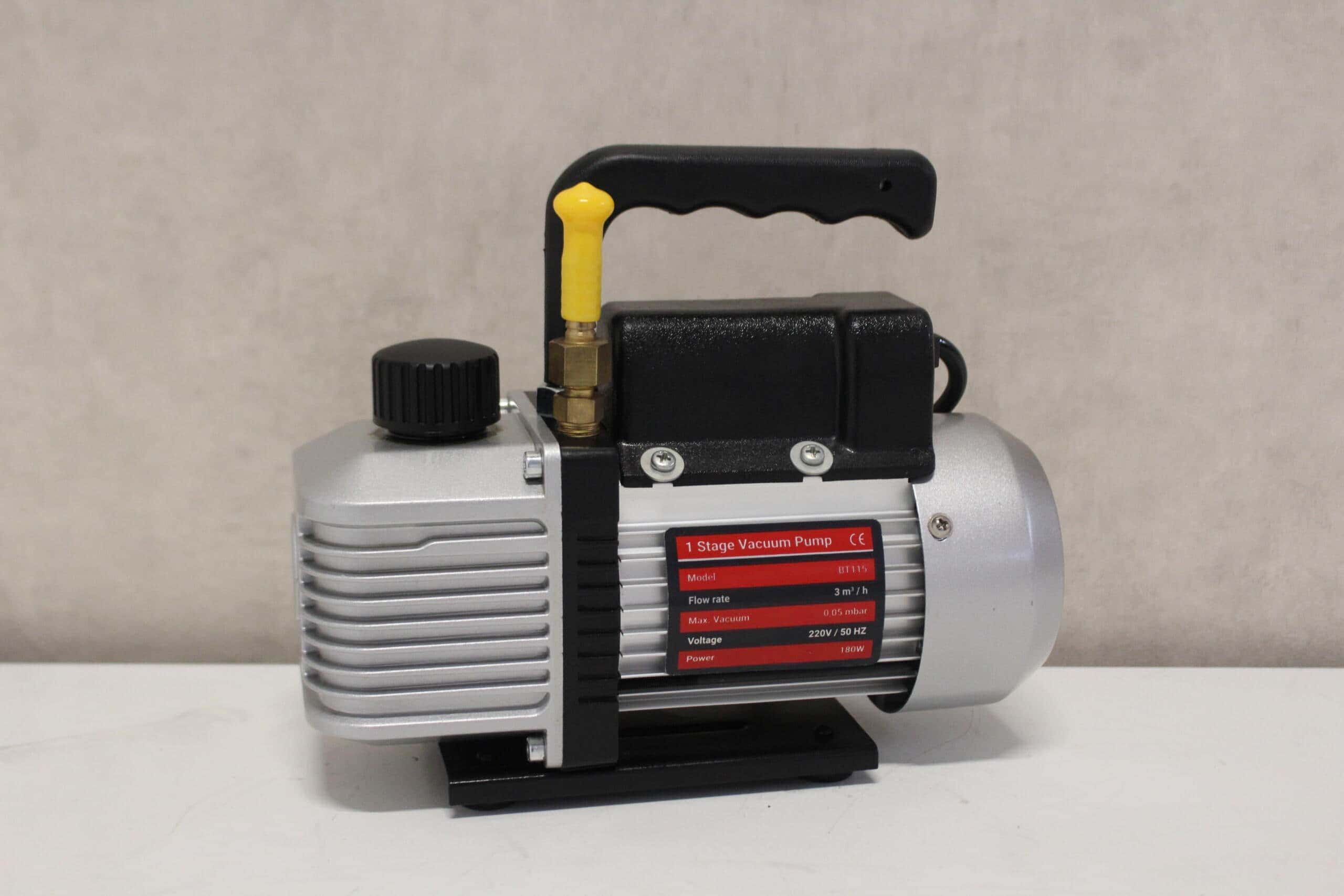

Including 1 L evaporation and collection flask and vacuum pump
