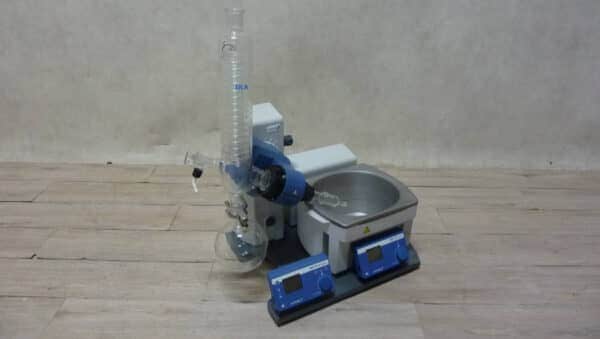

IKA RV 10 digital Rotary Evaporator

The RV 10 digital represents the continual enhancement of the IKA RV 10 rotary evaporator line. The unit comes with an universal heating bath, vertical glassware, state-of-the-art safety features and digital connectivity. The RV 10 digital is a robust and reliable lab companion. Its optimized bath volume allows for fast heat-up times. The condenser unit has special designed glass tubes that utilize the 1600 cm² surface extremely efficient. That’s why the RV 10 digital delivers reliable and reproducible process results that are usually reserved for more costly systems. Additional features such as smooth start, left-right interval or timer function capability support the user in their daily lab work. Another important aspect of the RV 10 digital are the sophisticated safety features. The motorized lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. Safety temperature circuits can be set individually. Dry-run protection, adjustable lower end stop and lock function of bath setting complete the line of safety features.

Type of cooling: vertical

Cooling surface: 1600 cm²

Speed range: 5 – 280 rpm

Reversible direction of rotation: yes

Lift: Motor

Stroke: 140 mm

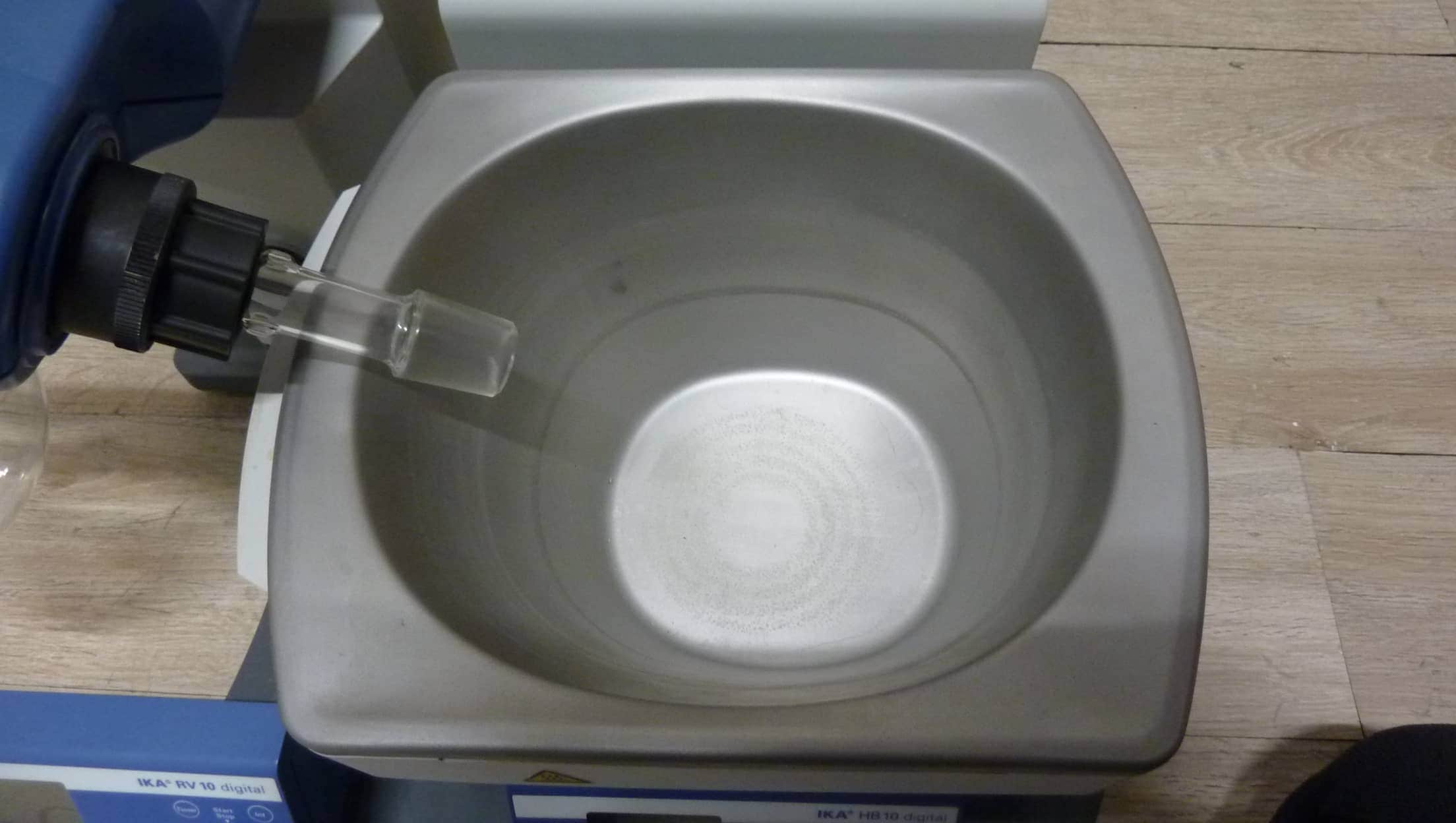

Heating temperature range: room temp – 180°C

Set temperature resolution: ±1 K

Filling volume max: 4 l

Timer: yes

Dimensions (WxHxD): 500 x 430 x 440 mm

Weight: 32.36 kg
