Büchi R-215 Rotary Evaporator
€ 4.995,00 excl. tax
The Büchi R-215 Rotavapor is a high-quality rotary evaporator designed for the rapid and efficient evaporation of solvents under vacuum. The system is known for its reliability, ease of use, and modular design, making it suitable for both routine work and more complex distillations.
The R-215 is often supplied as a complete system, including:
B-491 heating bath
V-700 or V-710 vacuum pump

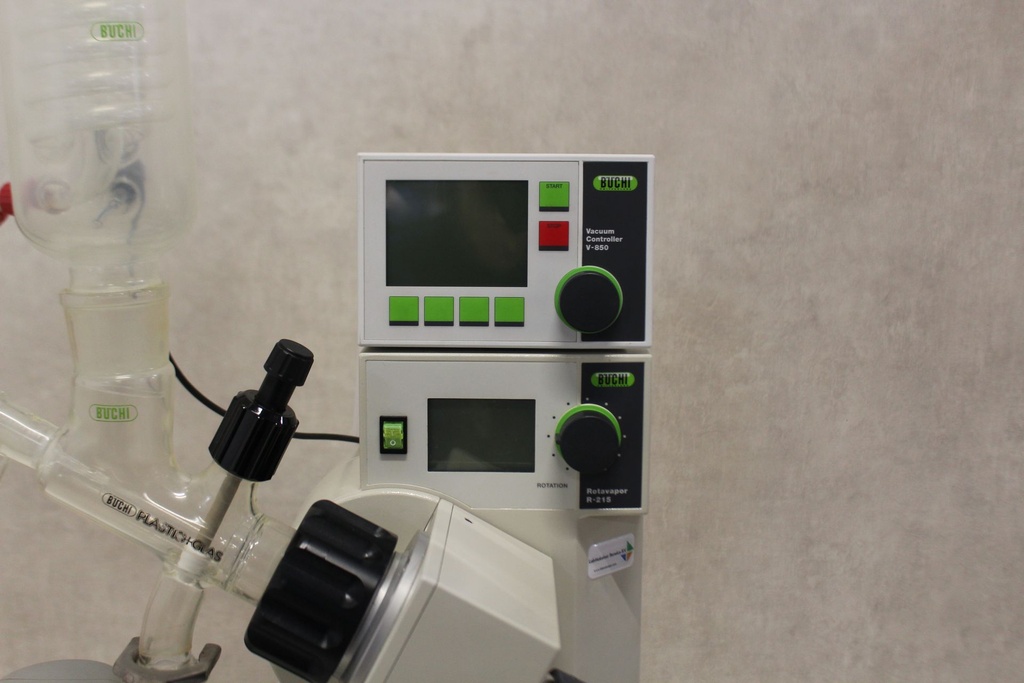

V-850 or V-855 vacuum controller
Glassware set (condenser + flasks)
Thanks to the combination of controlled vacuum, rotation, and heating, solvents can be removed quickly and gently, which is essential in chemistry, pharmaceutical, and food laboratories. ✅ Key benefits
Very user-friendly and safe design
Motorized lift with automatic safety function
PTFE seal for long service life and vacuum tightness
Modular system → easy to expand
Suitable for a wide range of applications
⚙️ Technical specifications
🔧 General performance
Bottle capacity: 50 – 4000 ml
Max. Load: ± 3 kg
Rotation speed: 20 – 280 rpm
Lift: motorized (quick-action lift)
Stroke: ±145 mm
Adjustable angle: 0–25°

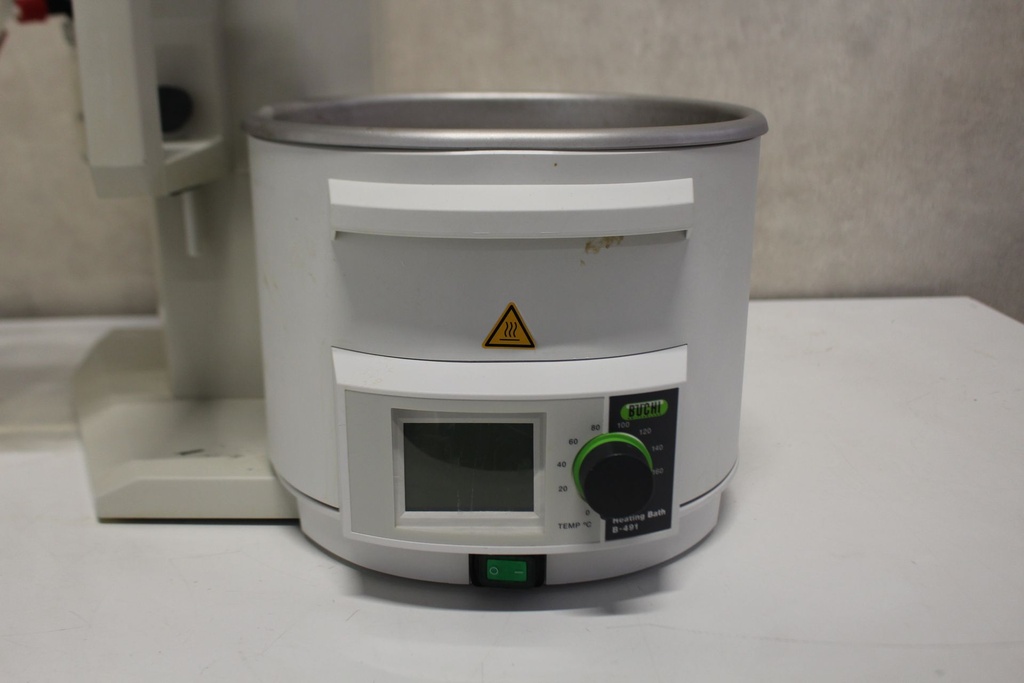

🌡️ Heating bath (B-491)
Capacity: 4 liters
Temperature range: 20 – 180°C
Suitable for water and oil
Fast heating and digital display
💨 Vacuum system (typical)

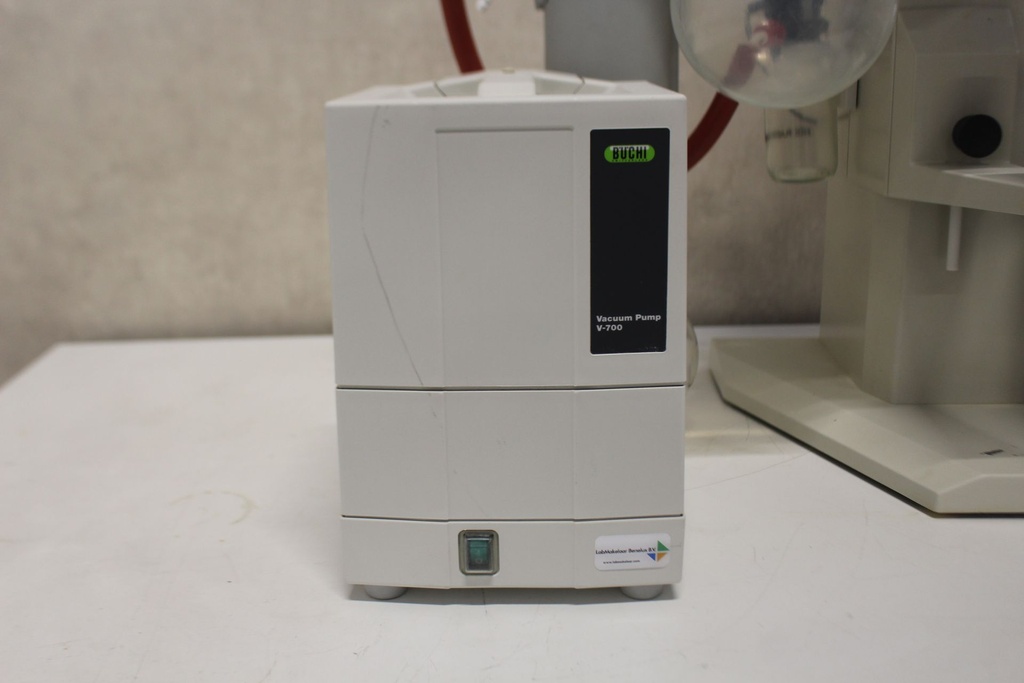

Vacuum pump: V-700 / V-710
Final vacuum: up to 2–10 mbar
Vacuum controller (V-850):
Pressure regulation
Solvent library
Timer & USB interface
📏 Physical properties
Dimensions: approx. 550 × 575 × 415 mm
Weight: 16–18 kg

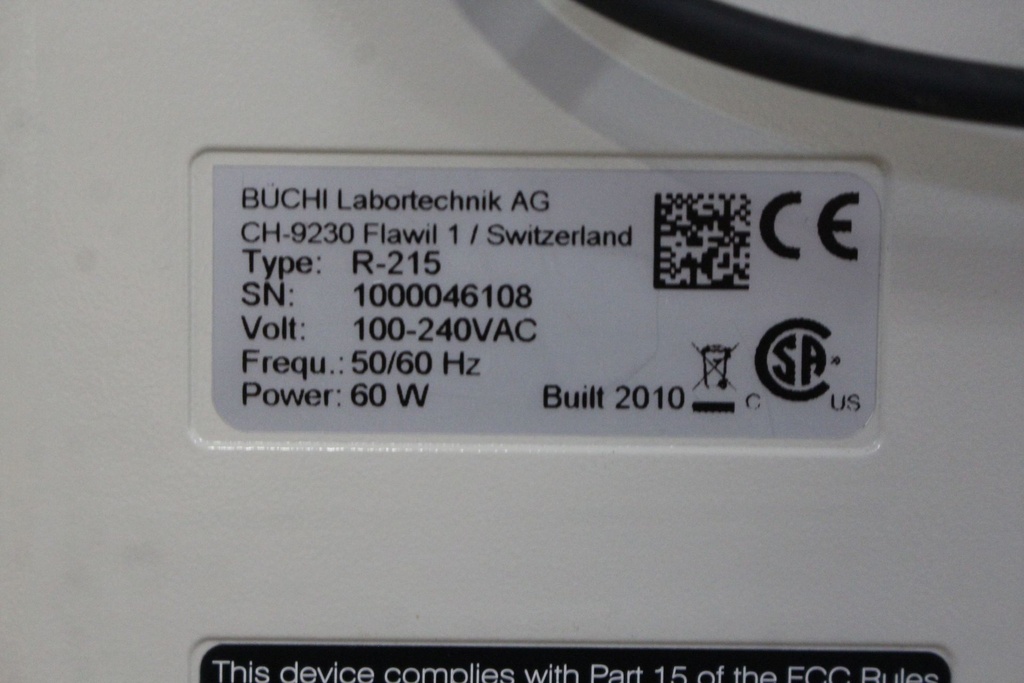

Power supply: 100–240 V, 50/60 Hz
The Büchi R-215 Rotavapor is a high-quality rotary evaporator designed for the rapid and efficient evaporation of solvents under vacuum. The system is known for its reliability, ease of use, and modular design, making it suitable for both routine work and more complex distillations.
The R-215 is often supplied as a complete system, including:
B-491 heating bath
V-700 vacuum pump
V-850 vacuum controller
Glassware set (condenser + collectionflask)
Thanks to the combination of controlled vacuum, rotation, and heating, solvents can be removed quickly and gently, which is essential in chemistry, pharmaceutical, and food laboratories.
Key benefits
Very user-friendly and safe design
Motorized lift with automatic safety function
PTFE seal for long service life and vacuum tightness
Modular system → easy to expand
Suitable for a wide range of applications
Technical specifications
General performance
Max. Load: ± 3 kg
Rotation speed: 20 – 280 rpm
Lift: motorized (quick-action lift)
Stroke: ±145 mm
Adjustable angle: 0–25°
Heating bath (B-491)
Capacity: 4 liters
Temperature range: 20 – 180°C
Suitable for water and oil
Fast heating and digital display
Vacuum system (typical)
Vacuum pump: V-700 / V-710
Final vacuum: up to 2–10 mbar
Physical properties
Dimensions: approx. 550 × 575 × 415 mm
Weight: 16–18 kg
Power supply: 100–240 V, 50/60 Hz
