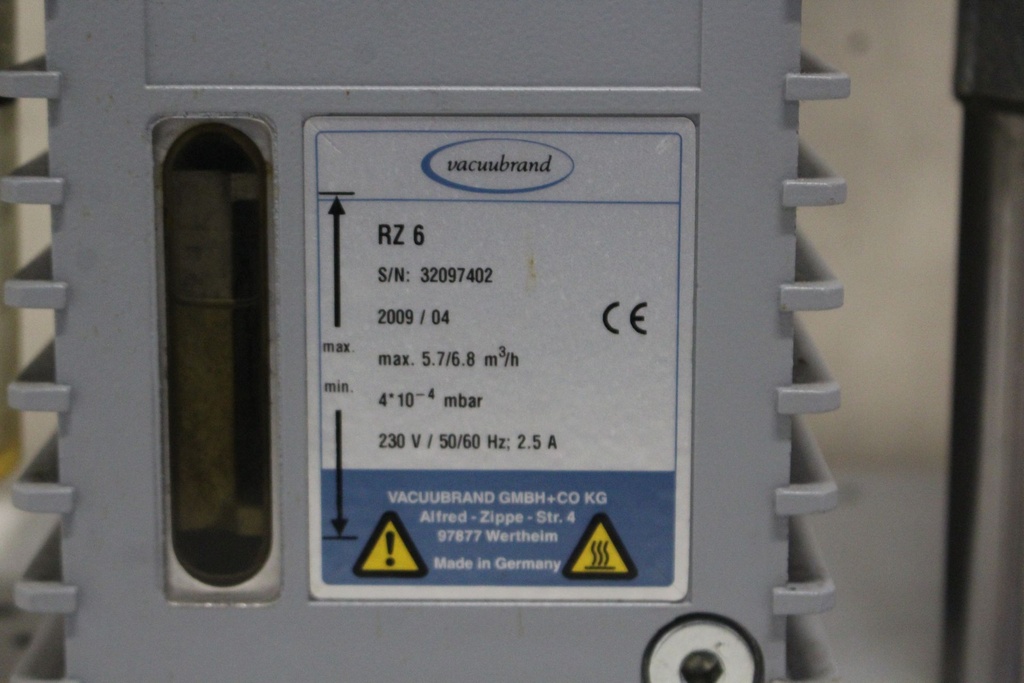

Vacuubrand RZ6 vacuum pump with cold trap

The Vacuubrand RZ6 vacuum pump with cold trap is a powerful oil-lubricated rotary vane pump designed for applications requiring deep vacuum and high vapor loads.

In combination with a cold trap, the system is optimally protected against solvent vapors and condensates. This makes it ideal for intensive laboratory applications such as lyophilization, vacuum distillation, and Schlenk techniques. ⚙️ Technical specifications

🔧 Performance

Pump capacity: ±5.7 m³/h (50 Hz)
Flow (alternative): ±113 L/min (4 CFM)
Final vacuum:

~2 × 10⁻³ mbar (without ballast)

Number of stages: 2-stage pump

❄️ Cold trap

Material: usually stainless steel or glass

⚙️ Construction & operation

Type: oil-lubricated rotary vane pump
Gas ballast: yes (for moist vapors)
Oil content: ±0.34 – 0.65 L
Noise level: ±50 dB
Motor power: ±0.3–0.4 kW

📏 Physical

Dimensions: approx. 370 × 142 × 207mm
Weight: ±16.4 kg
