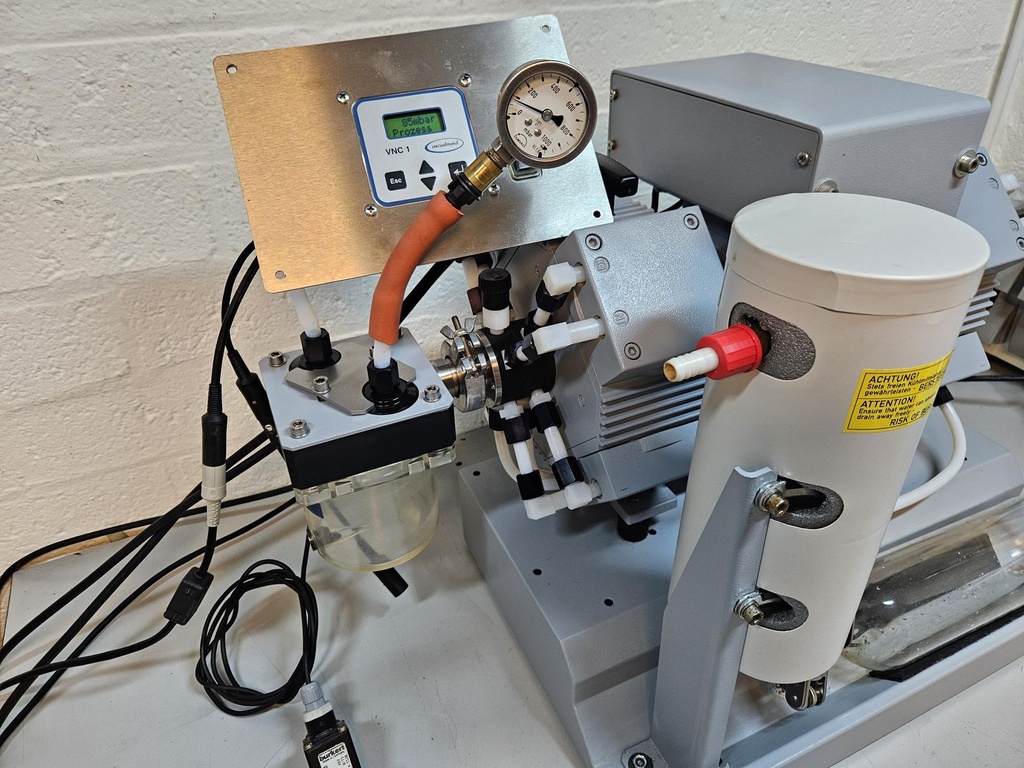

Vacuubrand PC 2016 Pump and Vario VNC1 Vacuum controller

Vacuubrand PC 2016 Vario VNC1 Vacuum Controller and Cooling Valve

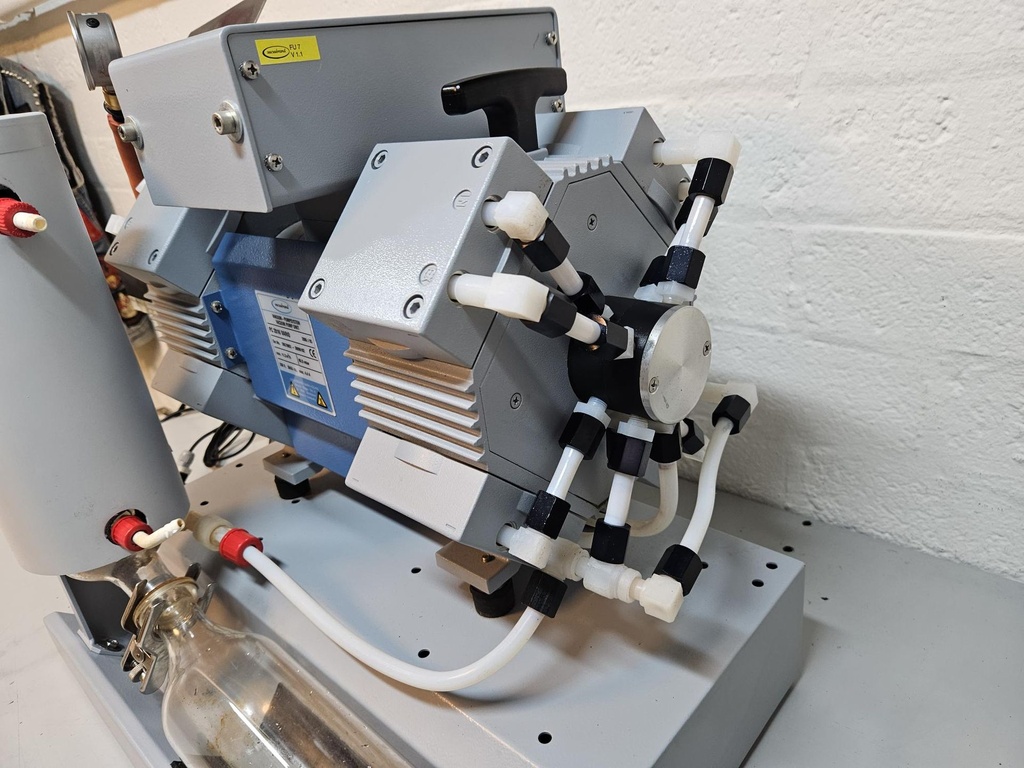

The PC 2016 NT VARIO select is a single-stage, eight-cylinder diaphragm pump designed for a long service life and minimal maintenance costs thanks to its oil-free design and use of fluoropolymers.
Specification Value
Max. Pump speed: 19.3 m³/h (at 50 Hz)
Ultimate vacuum: 70 mbar (without gas ballast)
Vacuum controller: VCN1
Number of heads/stages: 8 heads/1 stage
Chemical resistant: Yes, due to fluoropolymer construction
Inlet connection: KF DN 25 or hose outlet: DN 15 mm
Outlet connection: Hose outlet: DN 8-10 mm
Noise level: 47 dBA

Key features:

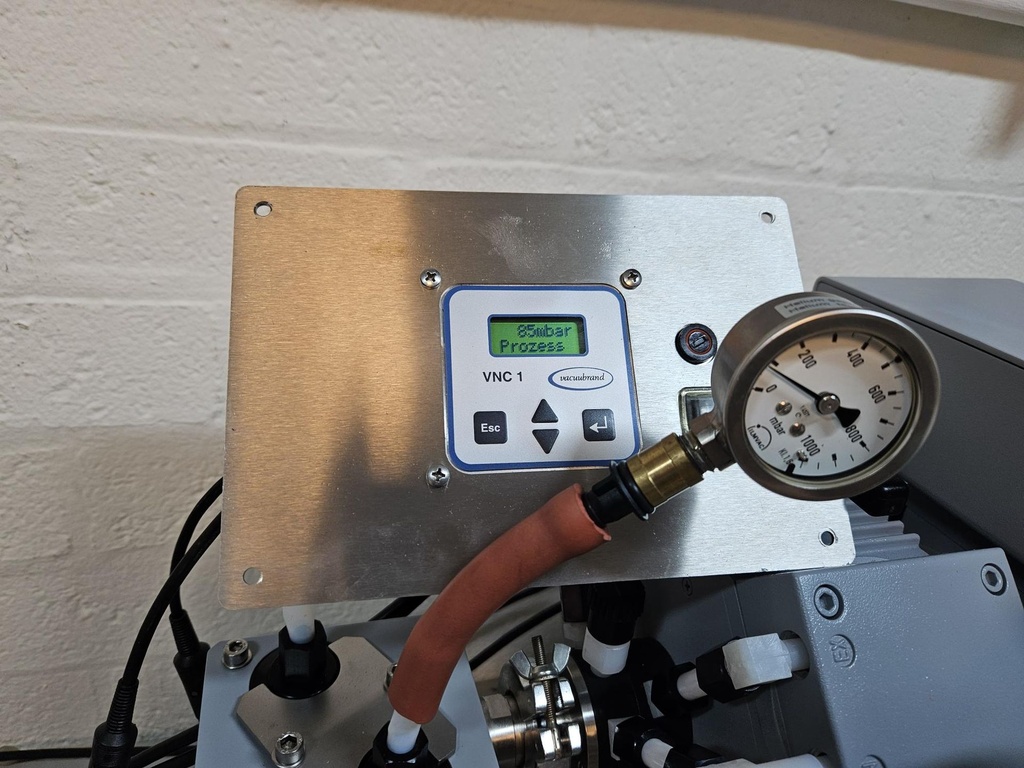

Automatic vacuum control: The integrated VCN1 controller
Oil-free and chemically resistant: The pump is oil-free and all gas-carrying parts are made of chemically resistant fluoropolymers, making it ideal for aggressive chemicals and vapors.

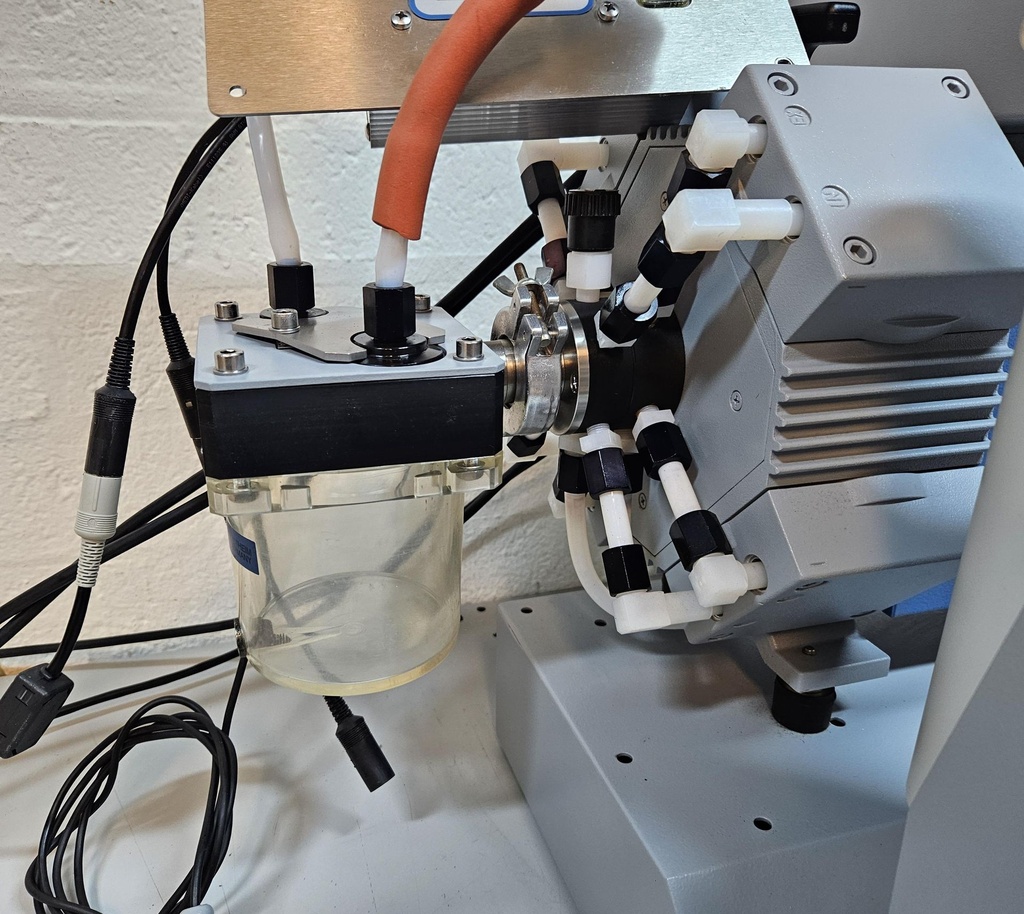

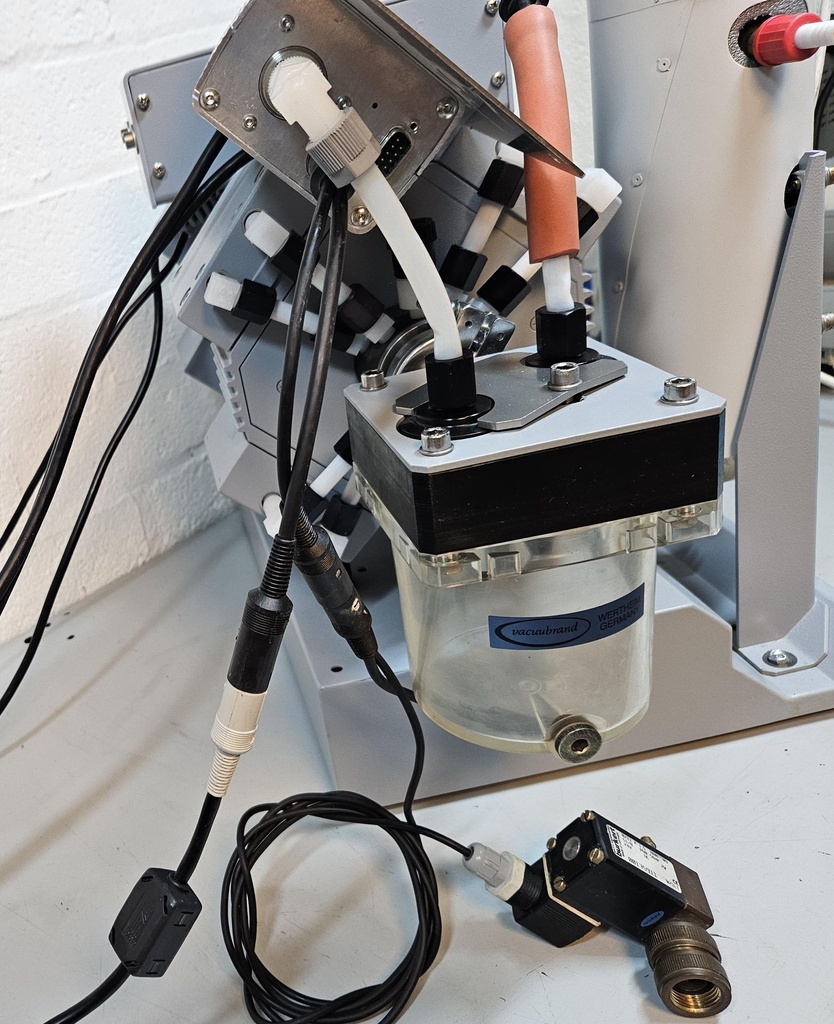

Efficient solvent recovery: The system is equipped with a coated glass inlet separator and an outlet vapor condenser, ensuring near-100% solvent recovery and environmental protection. Quiet Operation: Thanks to the VARIO speed control, the motor only runs as fast as necessary, resulting in significantly quieter operation.
