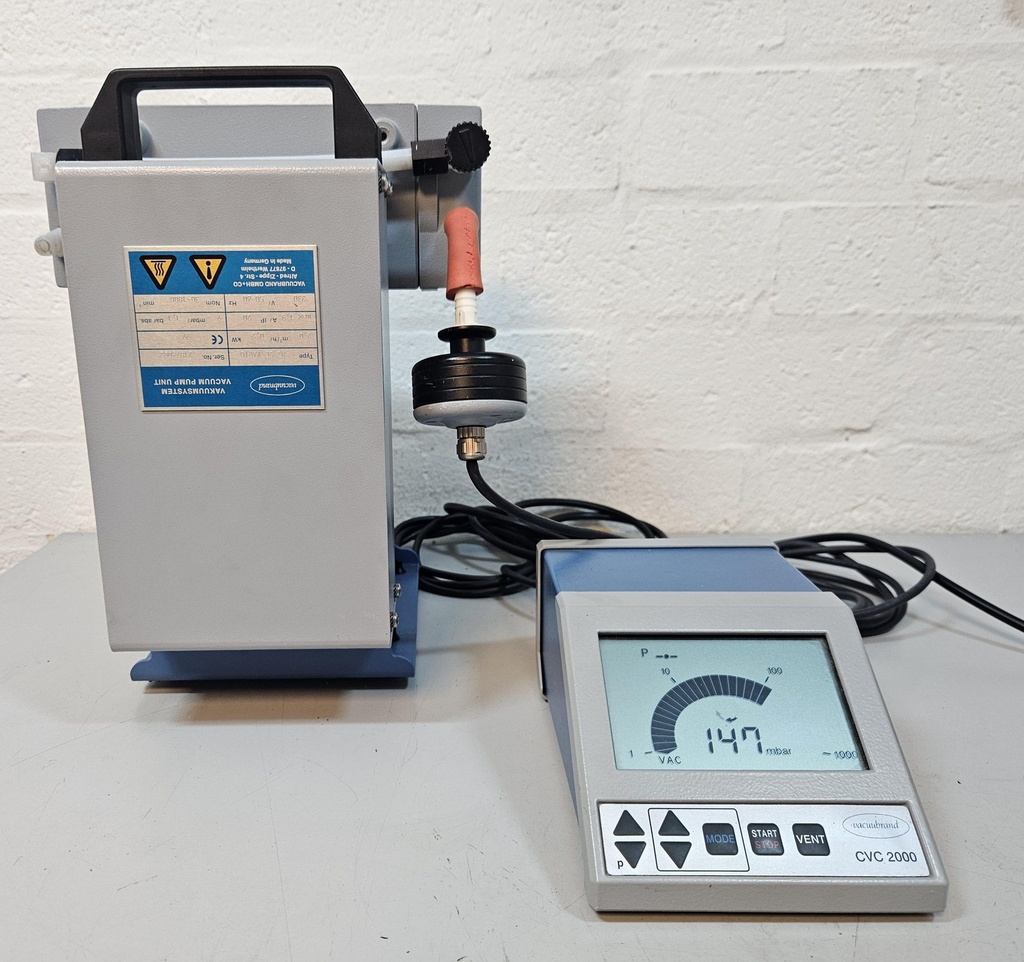

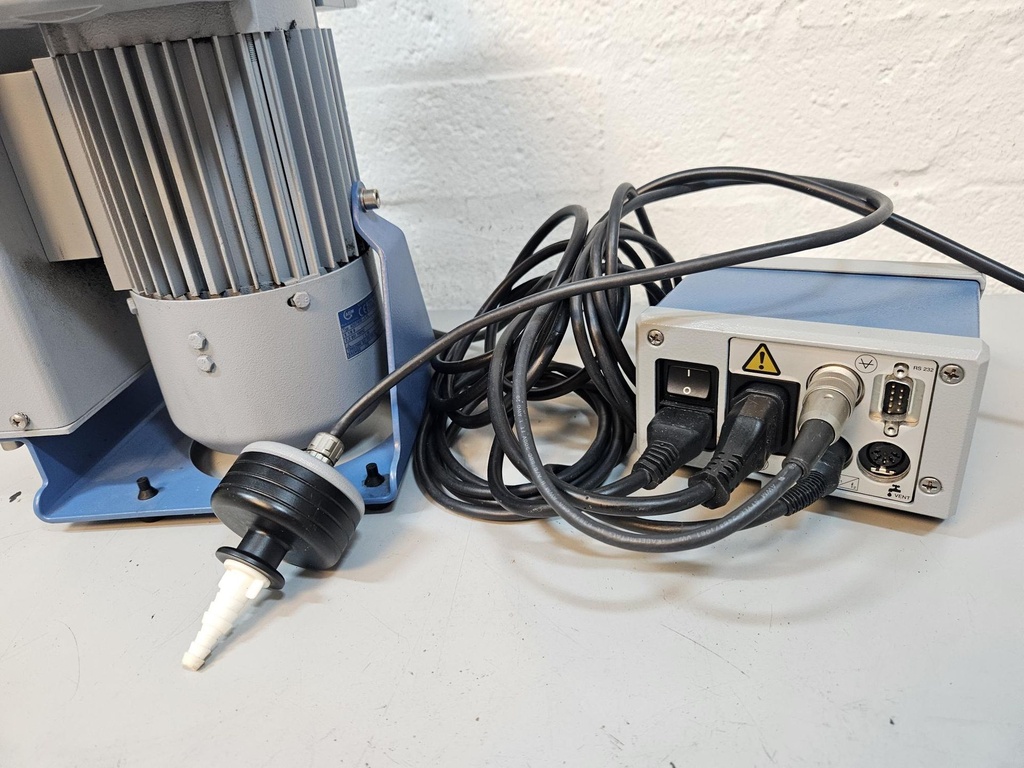

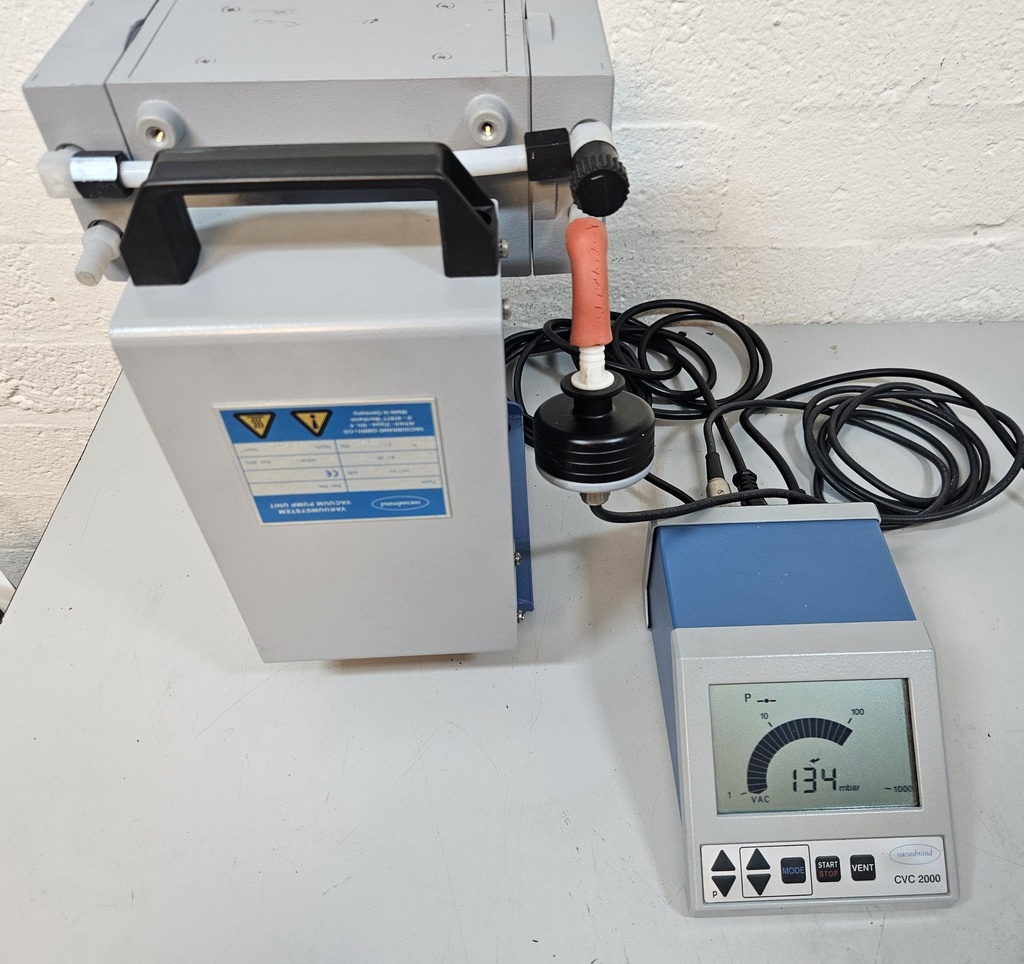

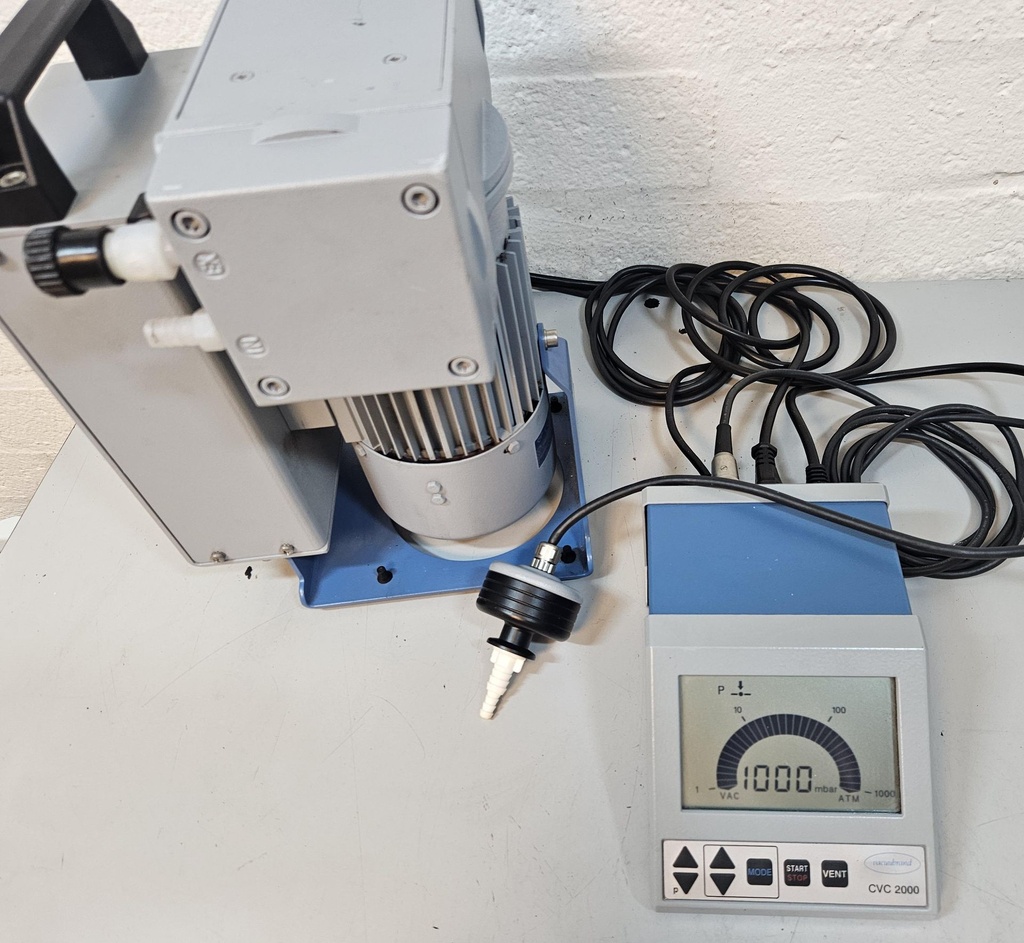

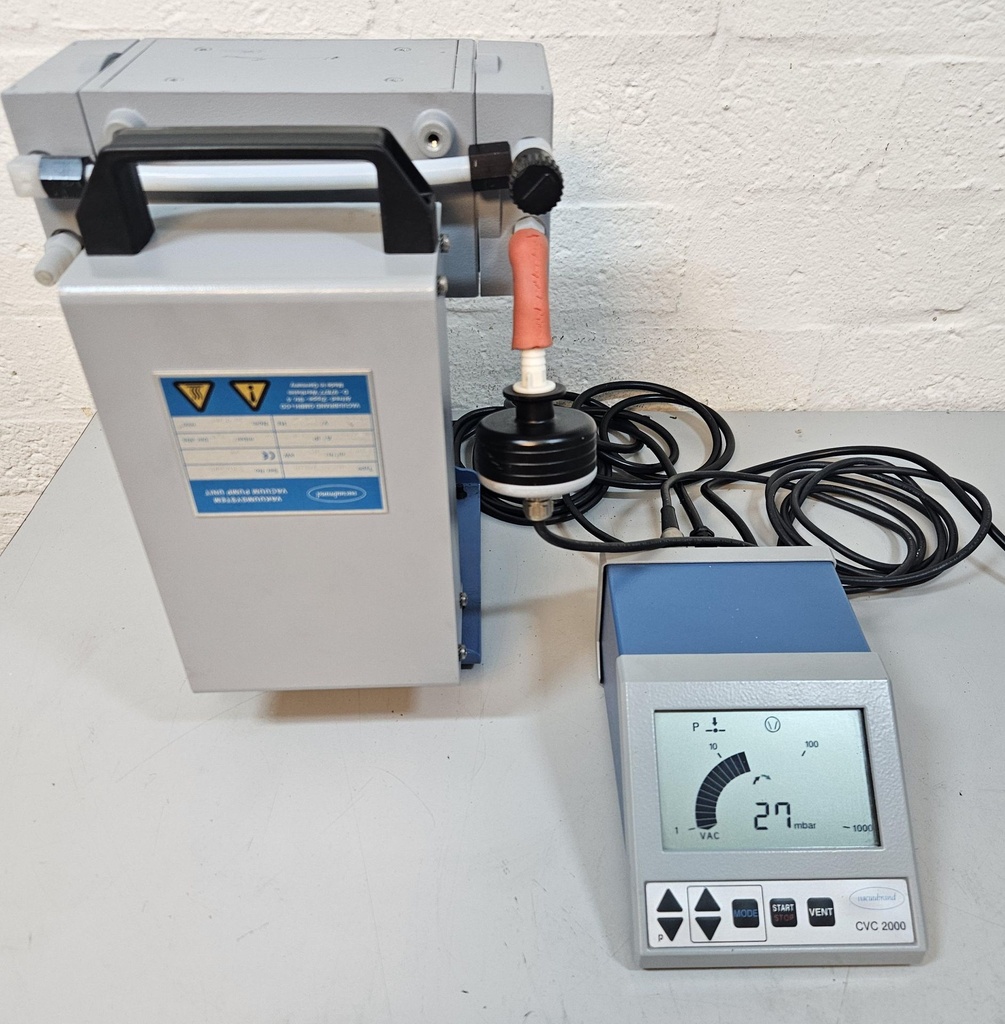

Vacuubrand mz2c Vario cvc 2000 Chemical-resistant Pump with Vacuum controller and Vacuum sensor

The VACUUBRAND MZ 2C VARIO is a chemical-resistant diaphragm vacuum pump with variable motor speed, supplied with a CVC 2000 vacuum controller and electronic vacuum sensor. This combination has been specifically developed for laboratory applications where a constant, precisely set vacuum pressure is necessary, such as rotary evaporation, vacuum distillation, filtration, and vacuum drying.

The vacuum controller continuously measures the system pressure via the connected vacuum sensor and automatically adjusts the pump speed. This ensures that the set pressure is accurately maintained without the pump constantly switching on and off. This results in quieter operation, reduced wear, lower energy consumption, and a more stable process.

The pump is fully equipped with PTFE (Teflon) and FFKM (Kalrez®) gas contact parts, making it highly resistant to aggressive vapors of organic solvents, acids, and other corrosive chemicals. Thanks to the oil-free design, the pump is low-maintenance and contamination of the vacuum system is prevented.

Technical specifications

Feature Specification

Type VACUUBRAND MZ 2C VARIO + CVC 2000

Pump type Chemical-resistant, oil-free diaphragm vacuum pump

Control Variable motor speed (VARIO)

Vacuum controller CVC 2000

Vacuum sensor Electronic, included

Control range Approx. 20 – 1000 mbar

Pump capacity Approx. 2.0 – 2.5 m³/hour

Final vacuum Approx. 7 mbar absolute

Gas contact parts PTFE (Teflon) and FFKM (Kalrez®)

Pump heads Chemically resistant

Speed ​​control Automatic via vacuum controller

Power supply 230 V / 50 Hz

When the pump is supplied as a complete setup with the CVC 2000 vacuum controller, vacuum sensor, and mounting bracket, the total height and required installation space increase slightly. However, the pump itself remains 243 × 243 × 245 mm (L × W × H)
