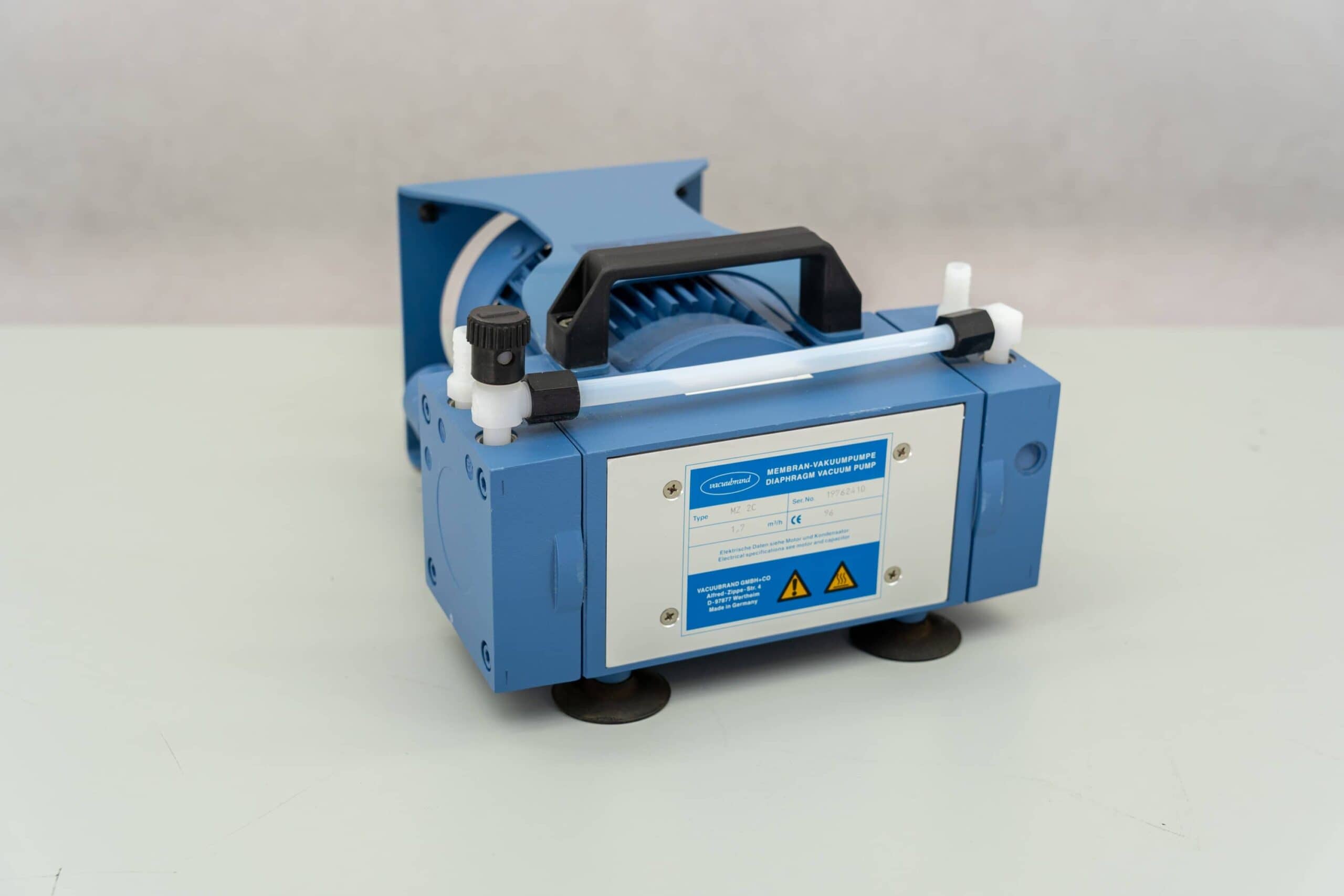

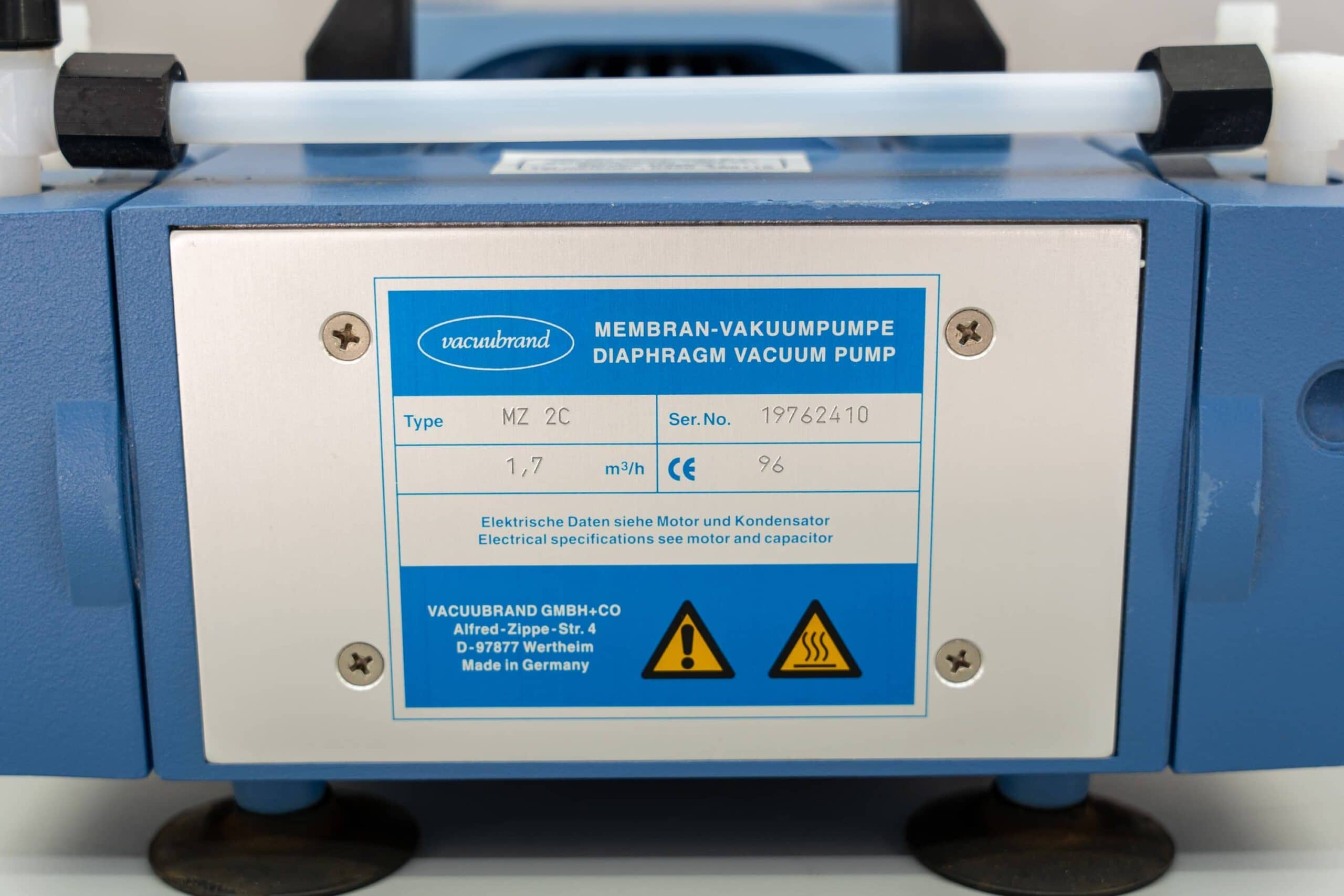

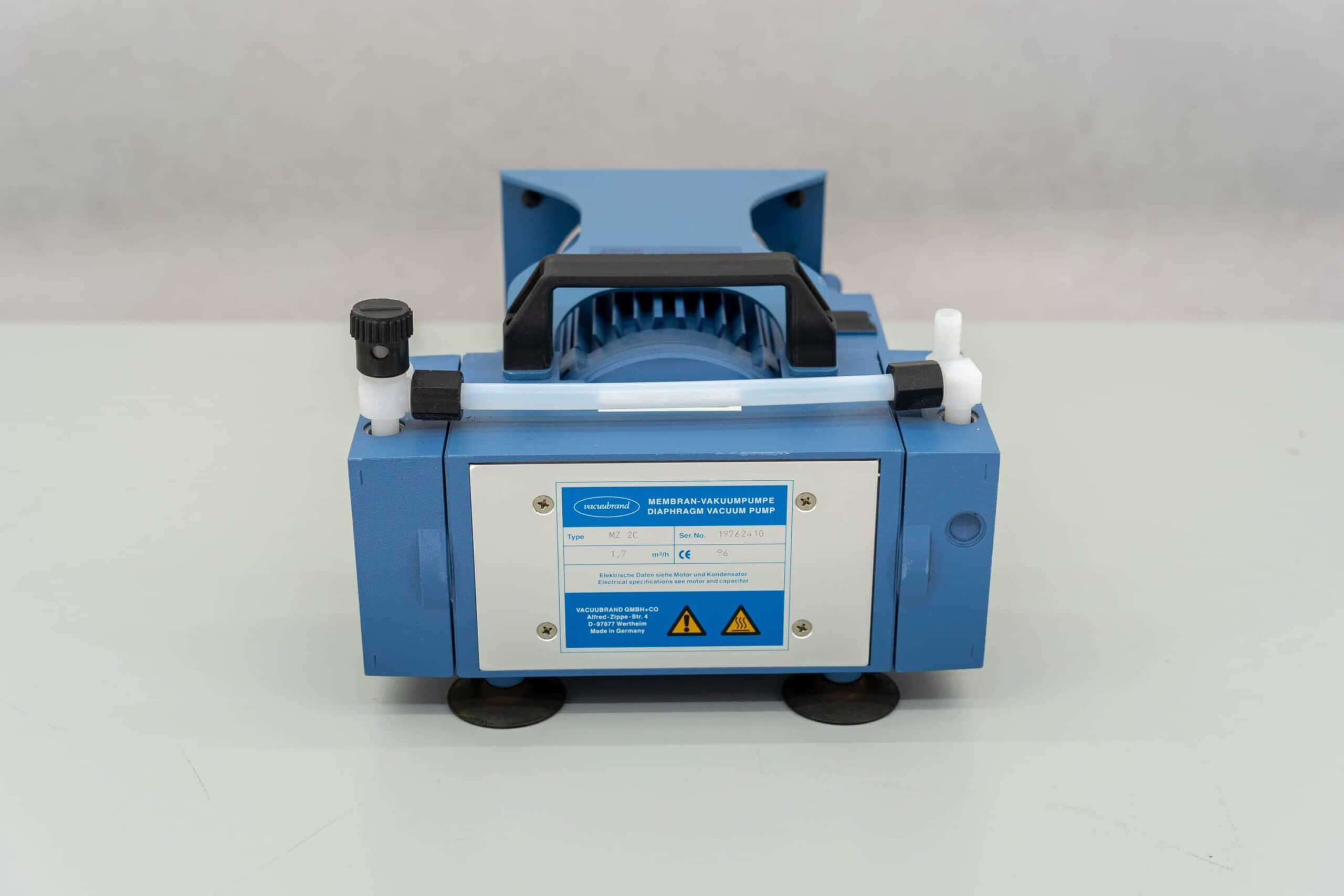

Vacuubrand MZ 2C Diaphragm Vacuum Pump

The Vacuubrand, type MZ 2C, membrane pump is an excellent solution for the continuous, oil-free pumping of corrosive gases and vapours. It is suitable for generating a vacuum for rotary evaporators, vacuum concentrators, gel dryers, vacuum ovens and many other laboratory applications. It has been tested up to 40mbar.

Technical specifications:

Voltage: 230 V

Power: 0.18 kW

Pumping speed: 1.7 m3/h

Ultimate vacuum: 9 mbar

Ultimate vacuum with gas ballast: 15 mbar

Maximum allowable outlet pressure: 2 bar

Max pressure difference inlet and outlet: 1.1 bar

Allowable relative humidity (no condensation): 30 to 85%

Flow rate: 1.7 m2/hr

Fan: Yes

External dimensions (W) x (D) x (H): 25 x 30 x 17 cm

Weight: 10.9 kg
