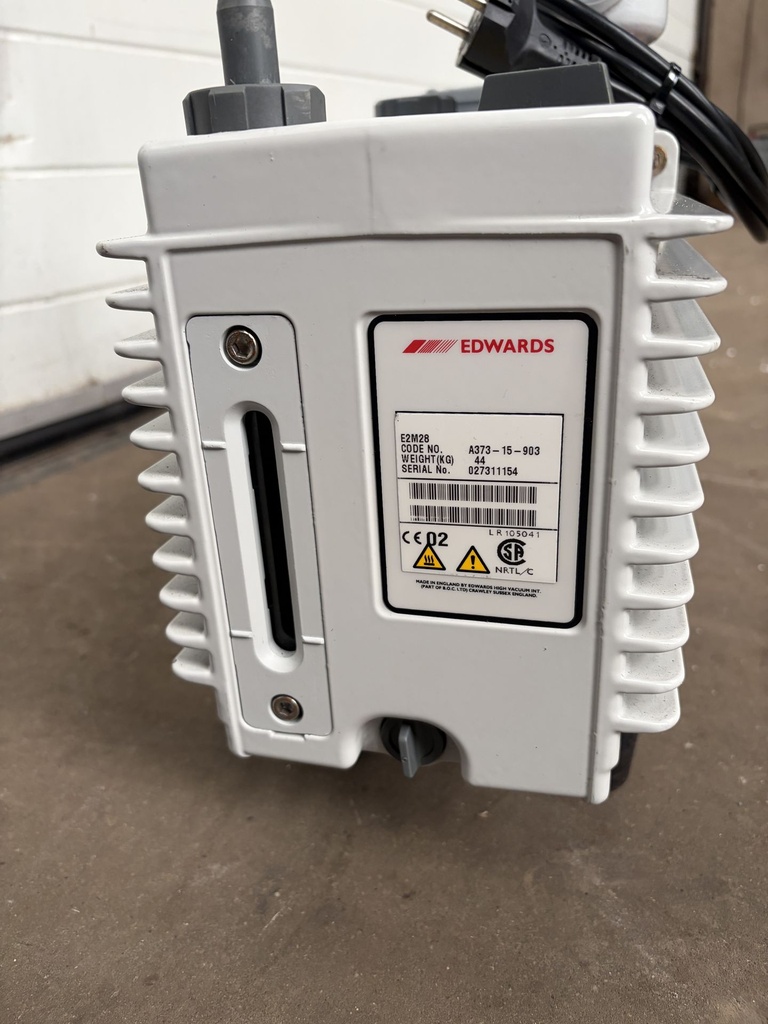

Edwards E2M28 Vacuum Pump

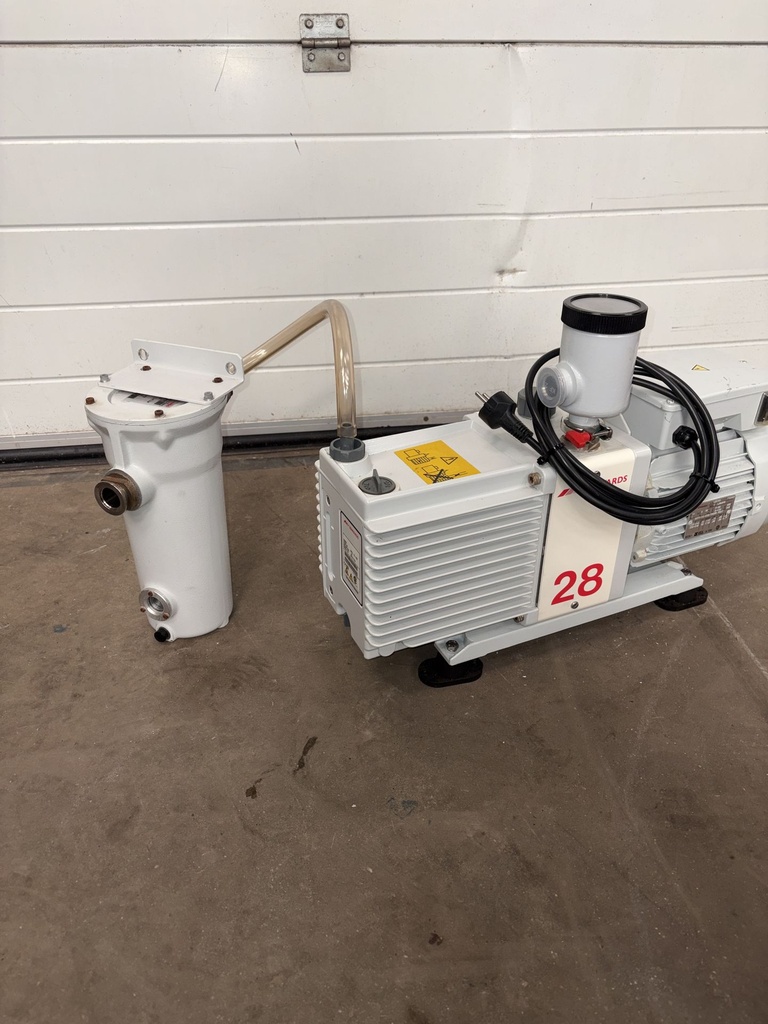

Edwards E2M28 vacuum pump with EMF20 oil mist filter

displacement:

50 Hz – 32.2 m3/h-1

60 Hz – 38.9 m3/h-1

Speed:

50 Hz – 27.5 m3/h-1

60 Hz – 33.0 m3/h-1

Ultimate vacuum: 5 x 10-3 mbar

Inlet connection: NW25 flange

Maximum allowable pressure at outlet: 1.5 bar absolute

Maximum water vapor inlet pressure: 30 mbar

Maximum water vapor pumping rate: 0.7 kg/ h-1

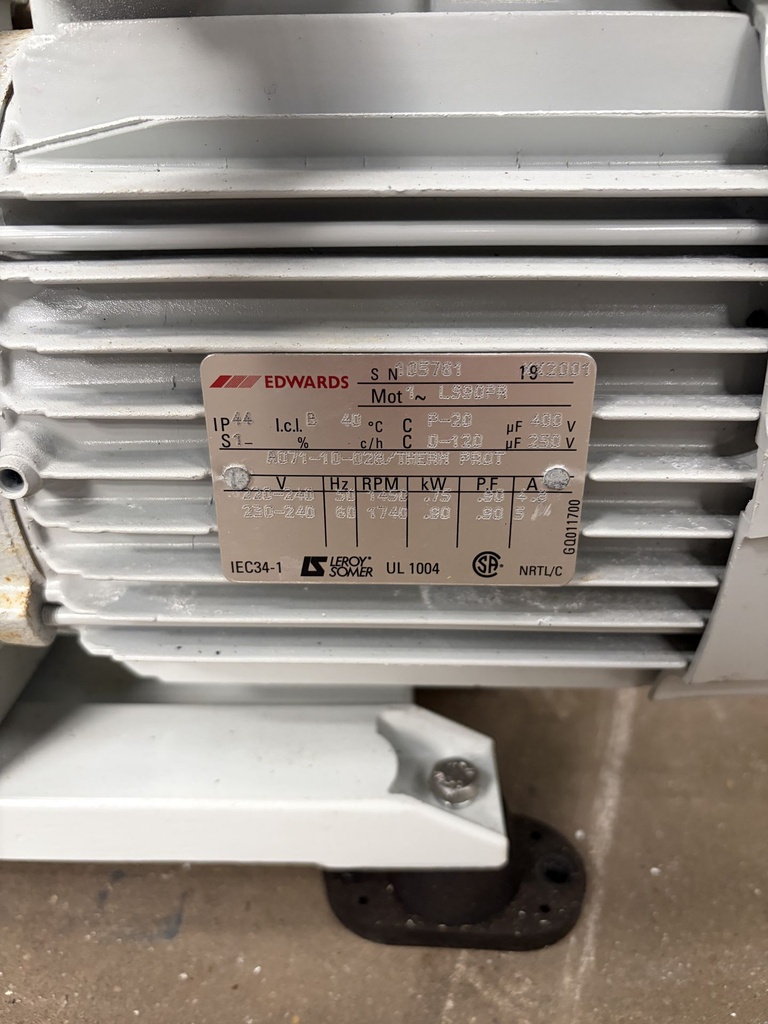

Motor power 50/60 Hz: 0.16 kW

Nominal rotational speed 50 / 60Hz: 1440 / 1720 r min-1

Operating temperature range: 12 – 40 ° C

Weight: 44 kg

As is.
