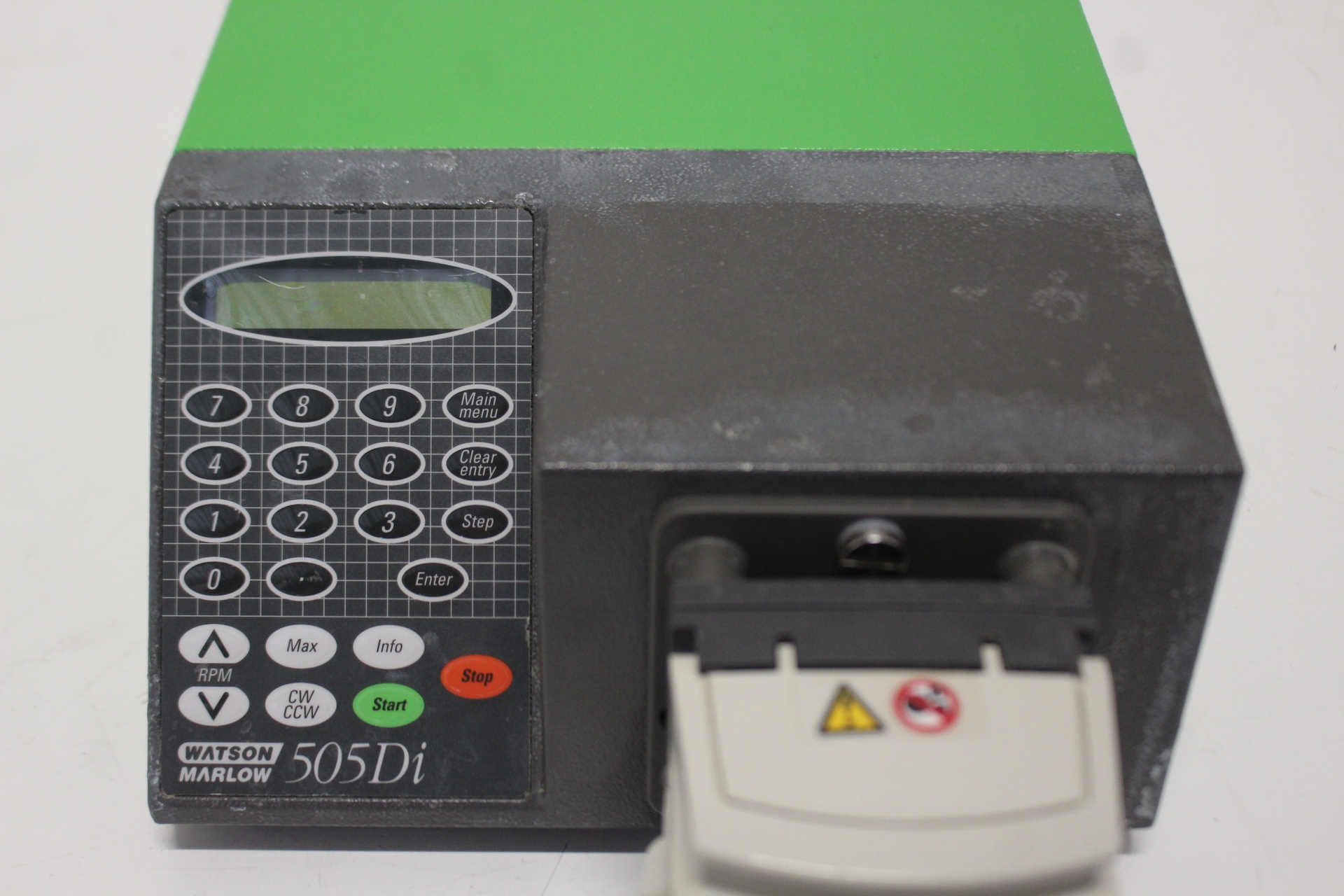

Watson Marlow 505Di Peristaltic Pump

Equipped with a 313D Pumphead.

3 roller version flip-top design for fast and error-free tube loading

Speed: 0 – 350 rpm
Flow rates
Tube bore 0.5 mm: 0.03 ml/rev, max continuous flow 12 ml/min, max intermittent flow 18 ml/min
Tube bore 0.8 mm: 0.06 ml/rev, max continuous flow 24 ml/min, max intermittent flow 36 ml/min
Tube bore 1.6 mm: 0.26 ml/rev, max continuous flow 104 ml/min, max intermittent flow 156 ml/min
Tube bore 3.2 mm: 1.0 ml/rev, max continuous flow 400 ml/min, max intermittent flow 600 ml/min
Tube bore 4.8 mm: 2.2 ml/rev, max continuous flow 880 ml/min, max intermittent flow 1320 ml/min
Tube bore 6.4 mm: 3.6 ml/rev, max continuous flow 1400 ml/min, max intermittent flow 2160 ml/min
Tube bore 8.0 mm: 5.0 ml/rev, max continuous flow 2000 ml/min, max intermittent flow 3000 ml/min
Dimensions (HxWxD): 120 x 220 x 340 mm
Weight: 6.6 kg
