Cyclic corrosion tests offer the best possible laboratory simulation of natural atmospheric corrosion. Research indicates that test results are comparable to those obtained outdoors in terms of resulting structure, morphology, and relative corrosion rates.
Q-FOG SSP model testers from Q-Lab can perform traditional salt spray and Prohesion tests.
Volume (including lid): 600 L
Volume (excluding lid): 500 L

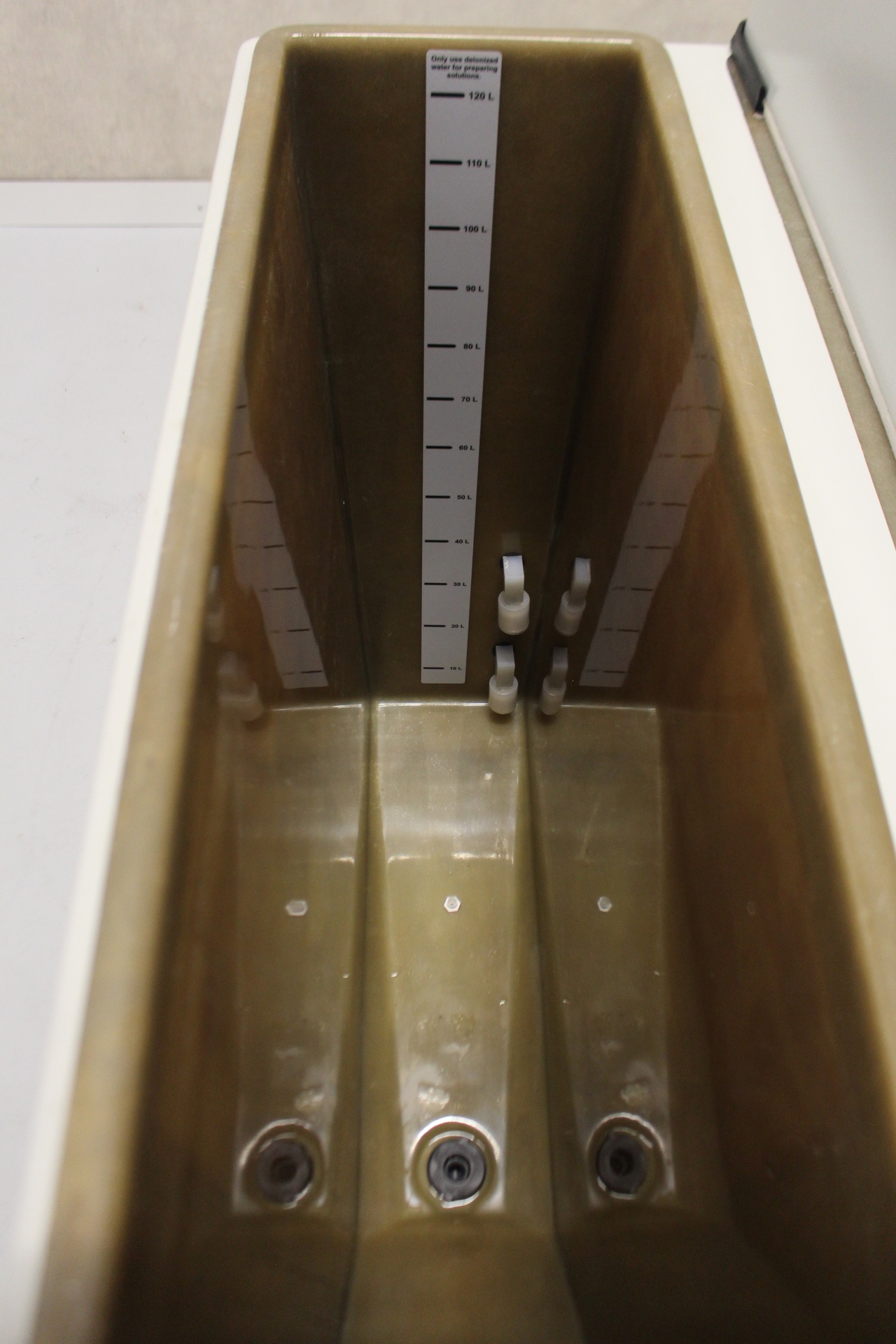

Built-in salt solution reservoir: 120 L
Chamber temperature range fog or dwell: 20 – 60 °C
Chamber temperature range dry-off: 20 – 70 °C
Specimen load capacity: 544 kg
Inlet water purity: >200 kΩ∙cm, <5 μS/cm, <2.5 ppm TDS
Inlet water pressure: 0.2 – 3.8 bar
Water consumption: 2L/h max
Compressed air: 1.7 L/s, 3 – 10 bar
Chamber internal dimensions (WxDxH): 1100 x 710 x 730 mm
Dimensions (WxDxH): 1890 x 1130 x 1220 mm
Weight: 224 kg
