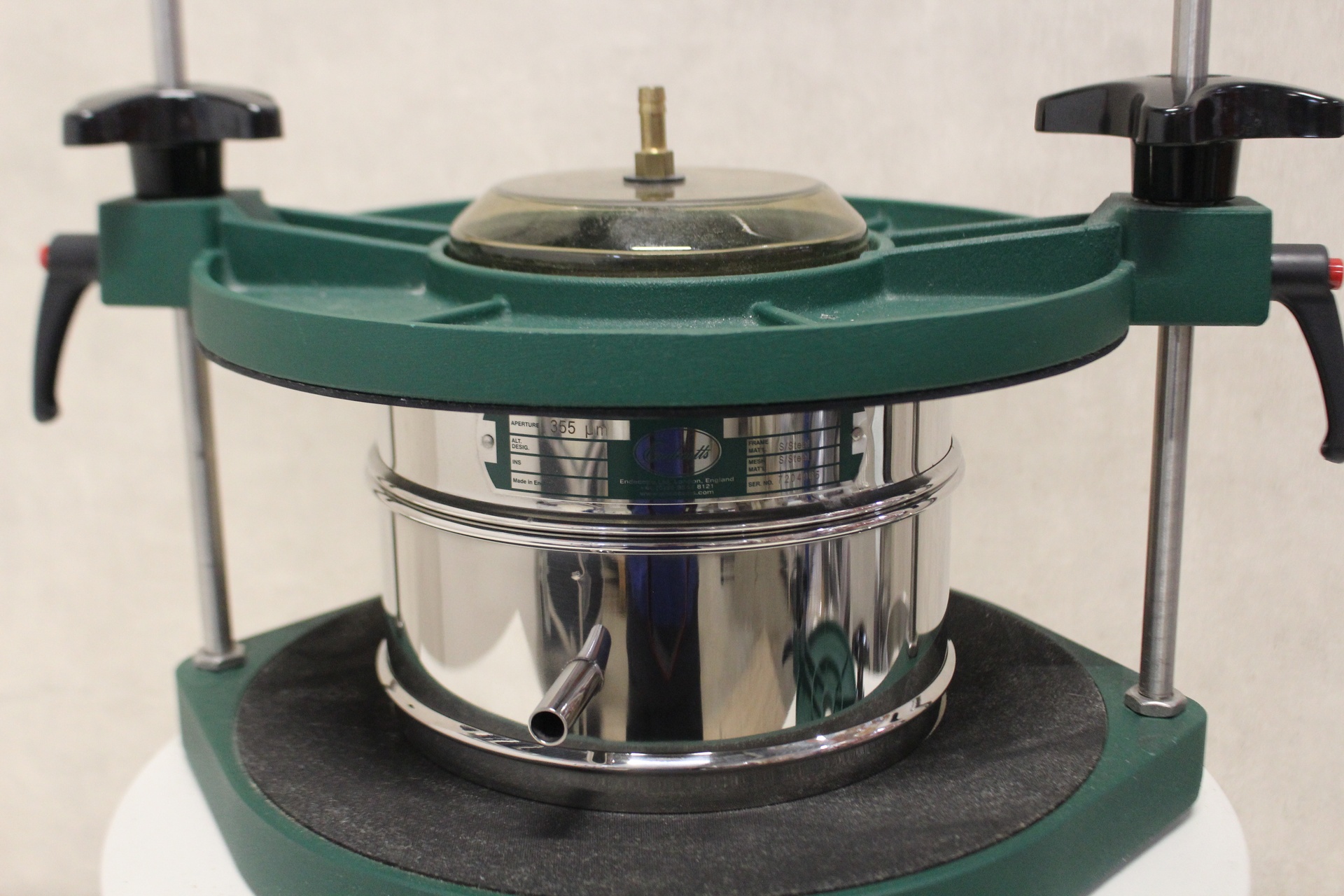

Endecotts EFL 300 Sieve Shaker

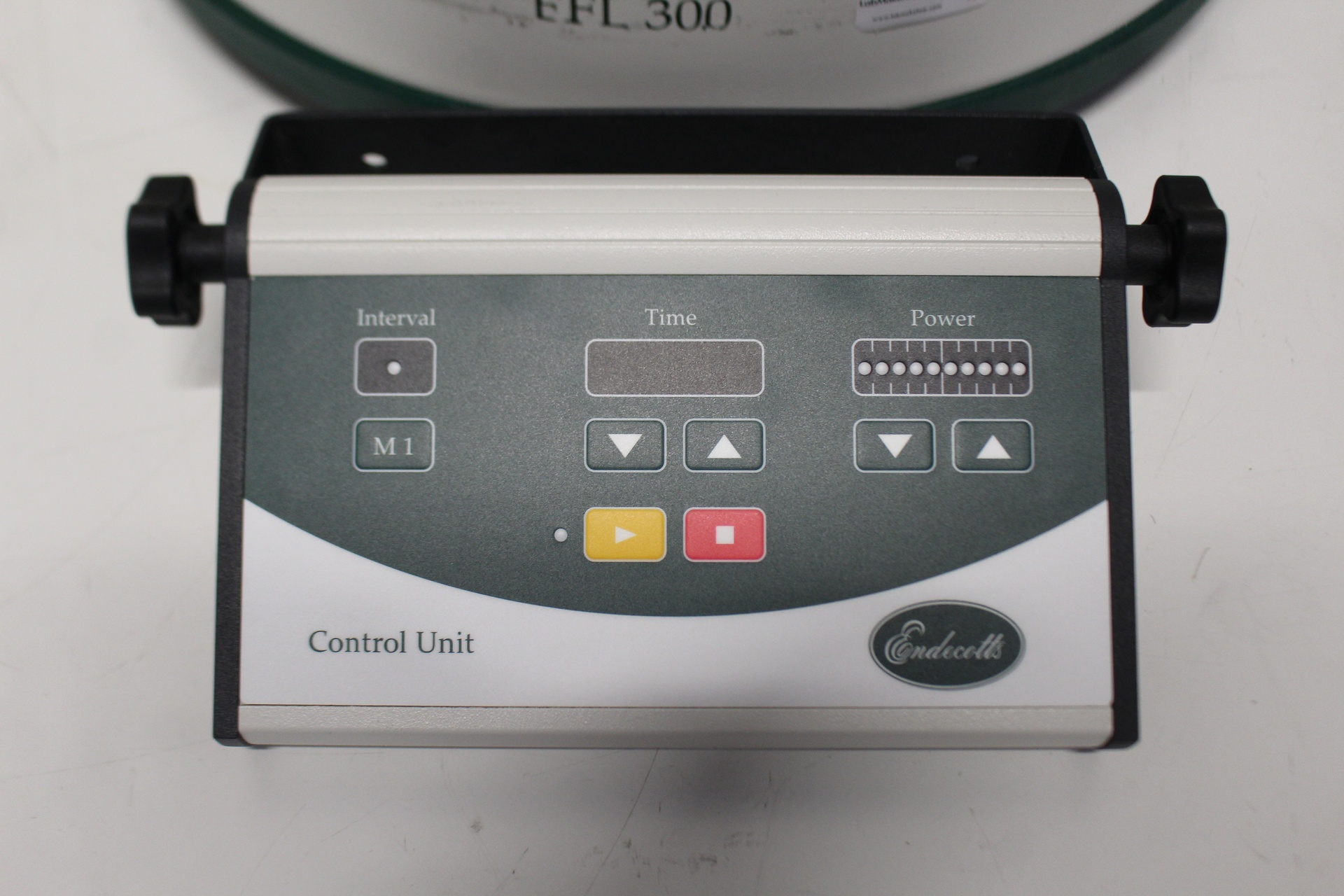

The sieve shaker EFL 300 is very versatile. Amplitude setting is now standard. The heavy electric motor is replaced by the electromagnetic system found in all modern sieve shakers. Its lighter form means that it can be either floor standing or even bench mounted making it suitable for both, laboratory and industrial environments. Sieving parameters are set by the remote control unit. Its functions are logical and very simple to operate.

Range: 20 µm – 40 mm
Drive / sieving motion: electromagnetic 3D
Max. batch / feed capacity: 6 kg
Max. number of sieves: 6 / 12
Max. mass of sieve stack: 10 kg
Amplitude: 0 – 2 mm, digital setting in 10 steps
Time display: digital, 00:10 – 99:50 min (external unit)
Suitable for dry sieving: yes
Suitable for wet sieving: yes
Sieve diameter: 100 mm / 150 mm / 200 mm / 250 mm / 300 mm / 315 mm / 3″ / 8″ / 12″
Max. height of sieve stack: 450 mm
Clamping device: quick-release clamping system included
Dimensions (HxD): 427 mm x 240 mm
Weight: ~ 45 kg

Including:

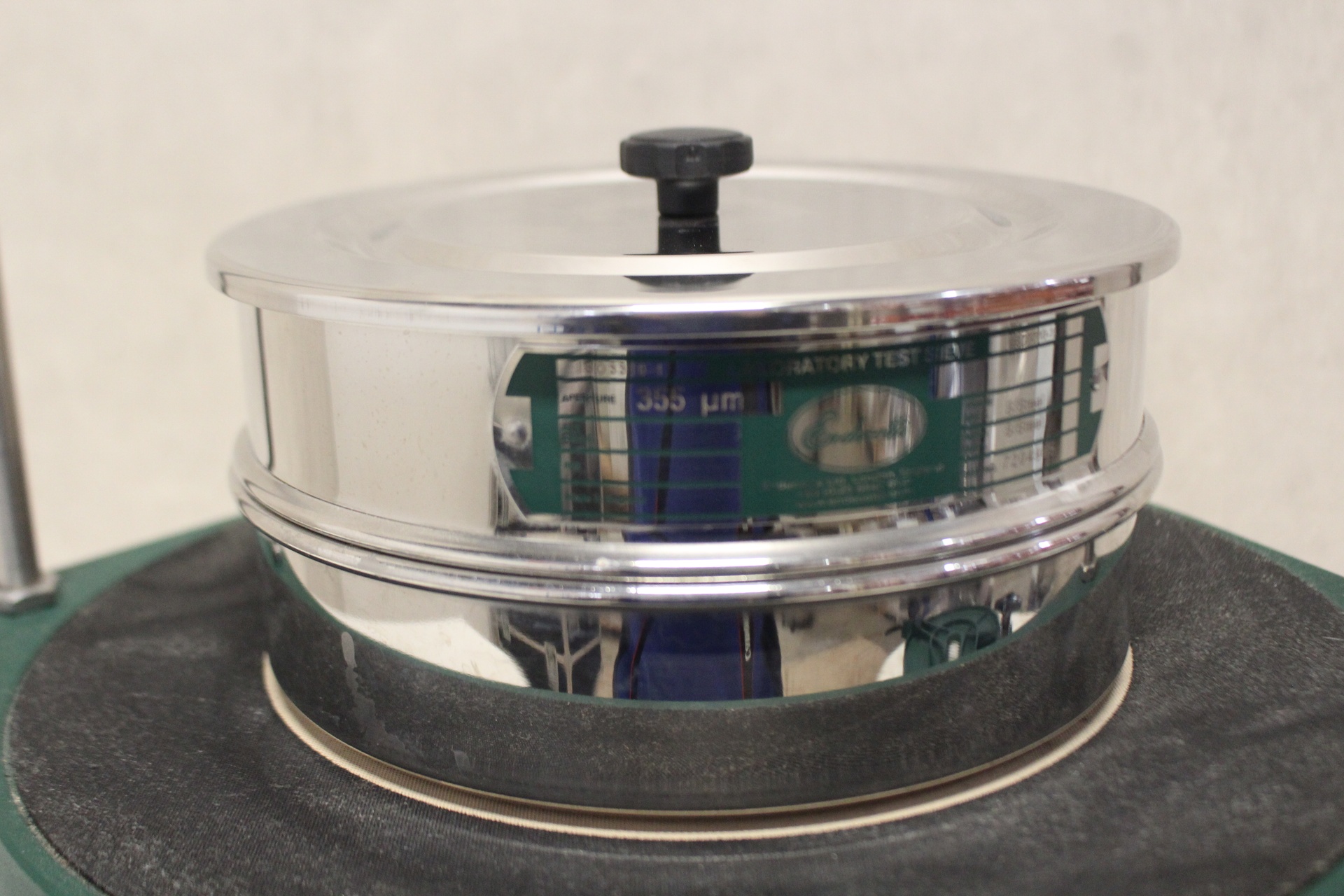

Endecotts stainless steel 355 µm sieve
Stainless steel sieve stack lid
Stainless steel collection tray
Wet sieving feed top
Wet sieving collection tray
