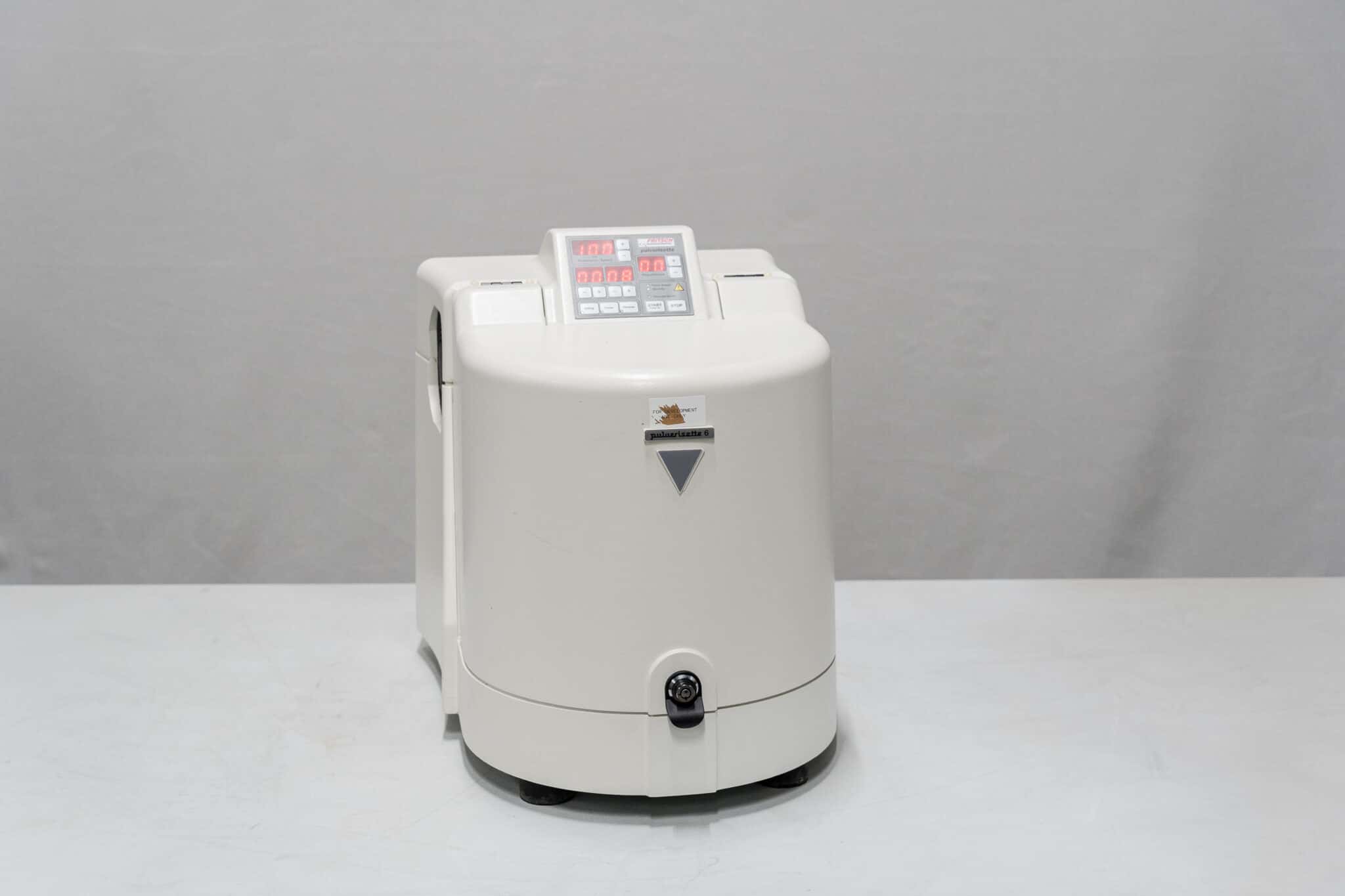

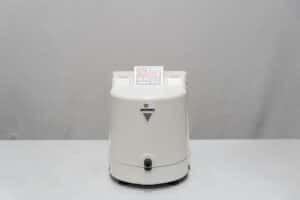

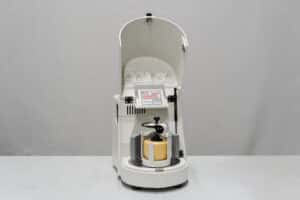

Fritsch 6 Planetary Ball Mill

This Fritsch planetary ball mill is equipped with a zirconium grinding bowl and is part of the classic PULVERISETTE 6 Planetary Mono Mill line.

It is a powerful planetary ball mill with a single grinding bowl attachment and practical, easily adjustable imbalance compensation. Your advantage: Exceptionally easy to use and a high-energy effect up to 650 rpm. This guarantees consistently high grinding performance with extremely small footprints for loss-free grinding results when grinding hard, medium-hard, brittle, and moist materials, whether dry in suspension or in inert gas.

At the same time, the PULVERISETTE 6 classic line is ideally suited for mechanical alloying or for mixing and perfectly homogenizing emulsions and pastes.

Technical specifications:

Voltage: 220-240 V

Current: 12.7 Amps

Power: 1100 W

Grinding bowl material: zirconium (item number 50.1110.00)

Balls: not included, available from the distributor

Maximum feed particle size: 10 mm

Maximum feed volume: 225 ml

Maximum final fineness: 1 µm

Speed: 100 … 650 rpm

External dimensions (W x D x H): 400 x 580 x 500 mm

Weight: 63 kg
