Olympus Microscope CX41RF with camera and controller

Olympus Microscope CX41RF with Phase Contrast

Olympus CX41 Stand
Trinocular Head
Pair of WHB10x/20 Eyepieces
5 Position Nosepiece
3 Objectives:
PlanC N 10x
PlanC N 20x Ph1
PlanC N 40x Ph2
Right Hand Stage with Slide Holder
Phase Contrast / Darkfield / Brightfield Condenser (O, DF, Ph1, Ph2, Ph3)
Spare Bulb
Line Cord

Olympus DP20 microscope camera
The DP20 is a 2 megapixel digital color camera with an ultra-fast, full-resolution live image preview of 15 frames per second. This easy-to-use, stand-alone digital camera was designed to output the full 2 megapixel image at a real-time rate of 15 frames per second directly to a 1600 x 1200 Ultra eXtended Graphics Array, UXGA, high-definition monitor (not included).

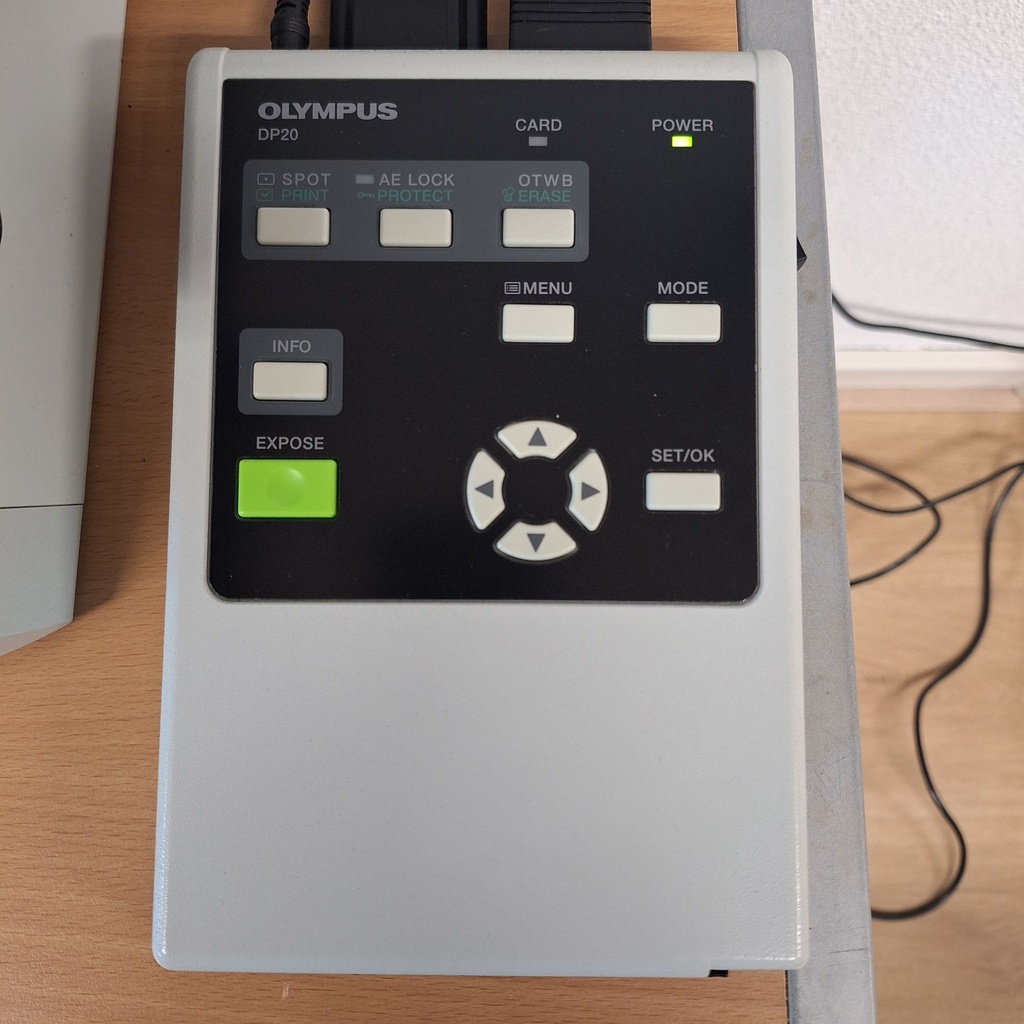

The camera is controlled from a convenient stand-alone handset control box which is newly designed and ergonomic; operation is smooth with the functional key layout. Imaging is quick and easy. Set the camera to automatically expose and white balance the image or fine tune the exposure manually. An over/under exposure notification ensures images are perfect every time.

Highlights
* 2 Megapixel easy-to-use, stand-alone camera system; records images to CompactFlash®
* 12-bit color depth for outstanding color fidelity
* 15 frames per second live image preview at full resolution (1600 x 1200 UXGA)
* Color or monochrome mode
* USB2.0 connectivity with intuitive software to download images
* Automatic exposure and white balance. Manual mode for fine tuning
* 2X and 4X live zoom preview with panning
* 5 image quality modes: 1600 x 1200 SHQ TIFF or JPEG, 1600 x 1200 HQ JPEG, and 1280 x 960 SQ JPEG (high and low compression)
* 3 selectable ISO sensitivities; 100, 200, and 400
* Exposure times ranging from 1/20,000 sec. to 2 sec.
* Autofocus aid for easy focusing
* Scale bar settings (seven)

The system has last been serviced d.d. 28-05-2025 (by Evident Scientific) and is stored in a travel case.
