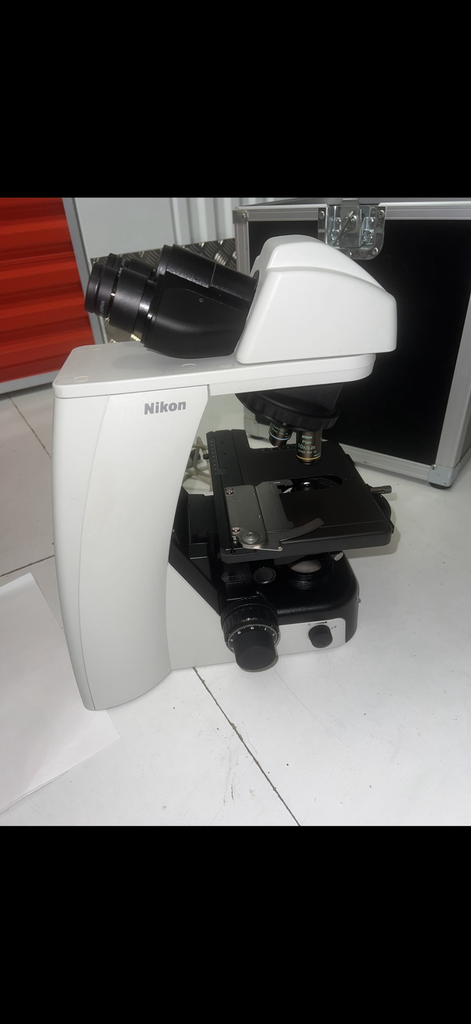

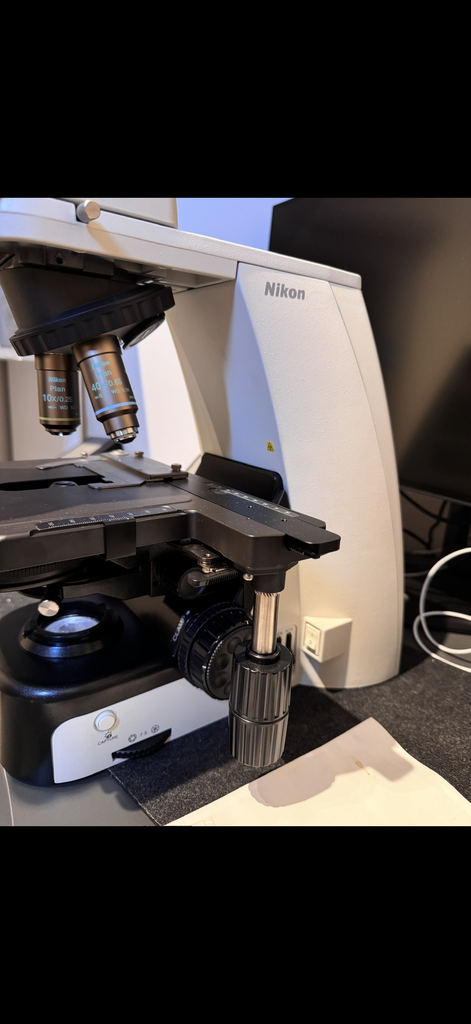

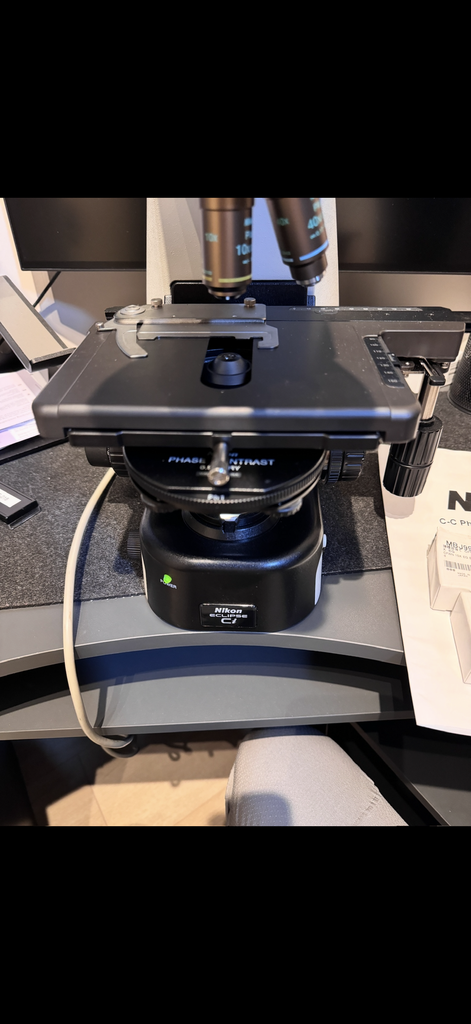

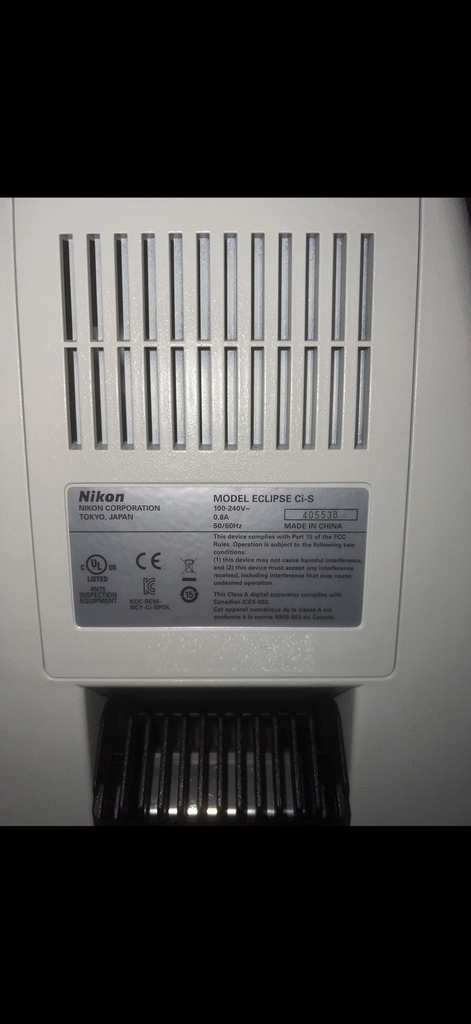

Nikon Eclipse Ci-S Microscope (Fluorescent Light Microscope)

Nikon Eclipse Ci-S Microscope (Fluorescent Light Microscope)

The Nikon Eclipse Ci-S is a high-quality, ergonomic brightfield clinical microscope from the renowned Nikon Eclipse Ci series. This model has a wide range of applications in clinical laboratories, pathology, academic research, pharmacy, and quality control.

The Ci-S is known for its robust build quality, stable optics, and user-friendly operation. The system is designed for routine microscopy with high reproducibility and excellent image quality. Thanks to its modular design, the microscope can be expanded with various contrast techniques such as phase contrast and fluorescent applications. Key Features

High-quality Nikon CFI60 infinity optics

Suitable for brightfield observations

Robust and ergonomic laboratory microscope

Excellent image stability and color reproduction

Suitable for clinical and research applications

Modularly expandable (phase contrast, darkfield, and fluorescence optional)

Suitable for digital documentation (camera adapters available)

Optical and functional specifications

Optical system: Nikon CFI60 Infinity Optical System

Type: Upright (illuminated) microscope

Illumination: Halogen or LED (depending on configuration)

Observation methods: Brightfield standard, expandable with contrast techniques

Focusing: High-precision coaxial coarse and fine focusing

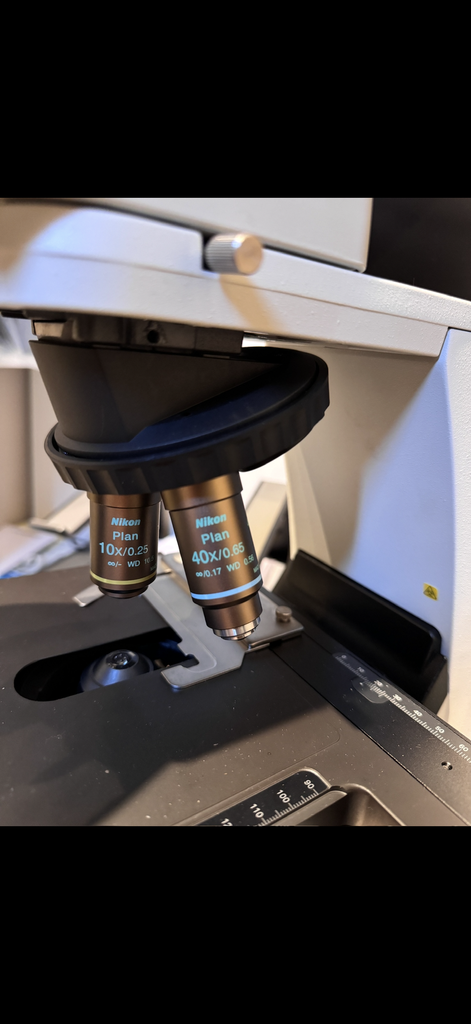

Revolver: Multiple objective turret (usually 5–6 positions)

Condenser: Abbe or phase contrast condenser (depending on configuration)

Mechanical and ergonomic features

Ergonomic design for prolonged use

Precision stage with smooth operation

Stability suitable for routine laboratory use

Modular design for various contrast modules

Dimensions (W × D × H)

Approx.: 250 × 550 × 450 mm

Weight Approx.: 12 – 15 kg
