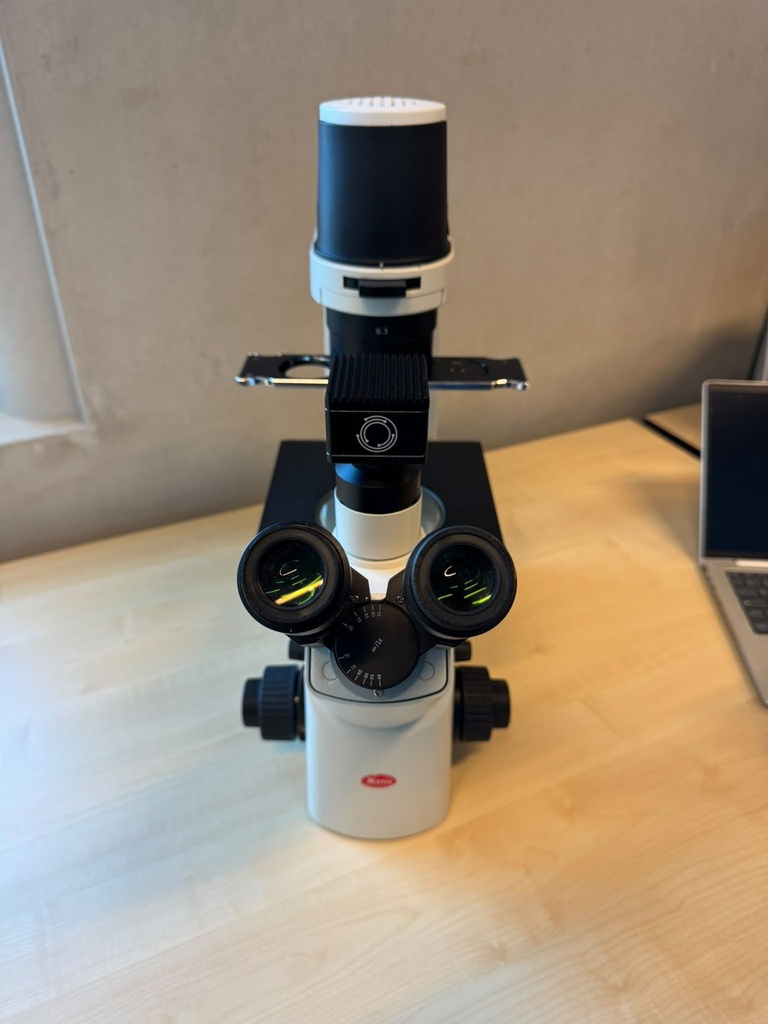

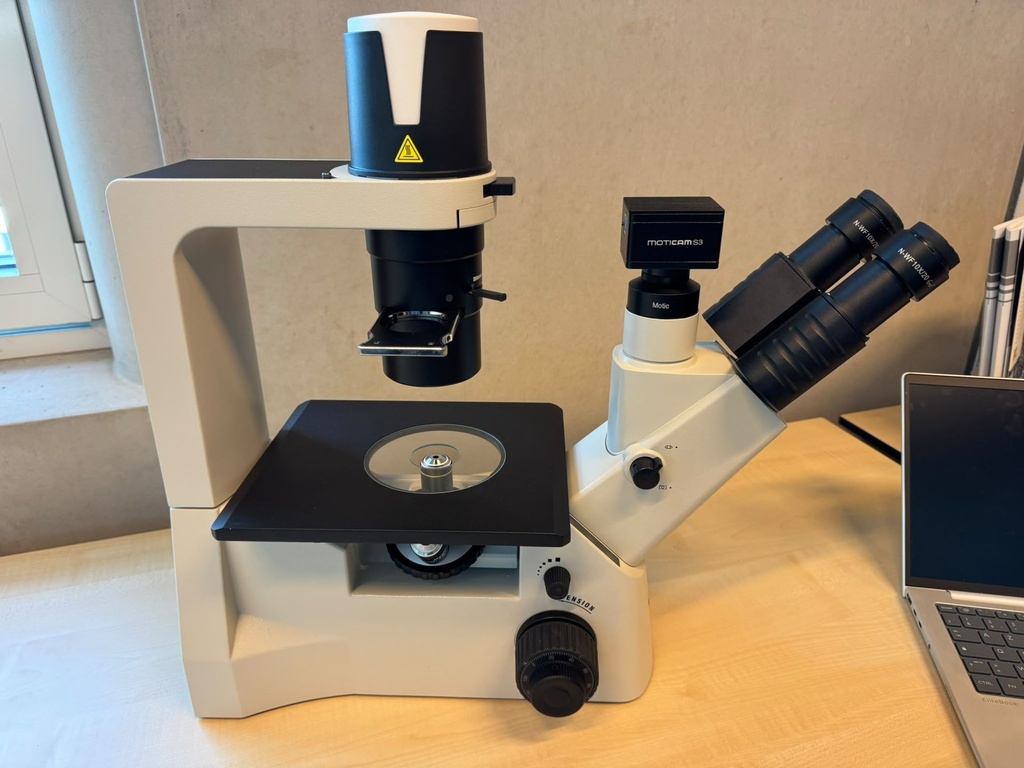

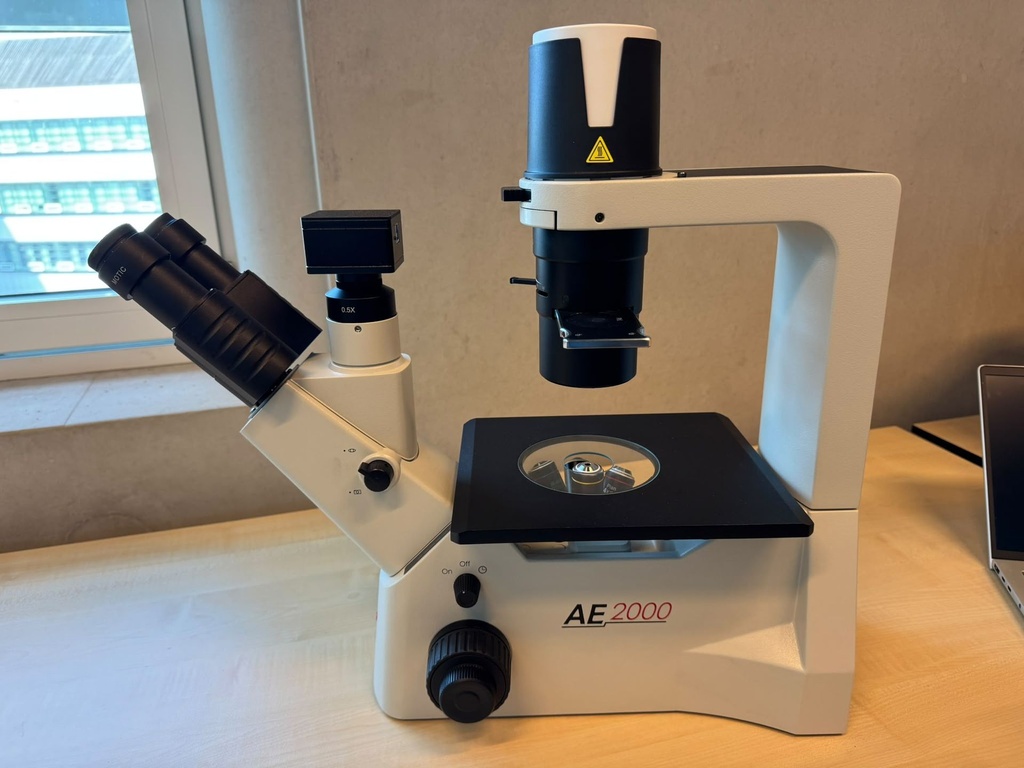

Motic AE2000 Trinocular Microscope

Motic AE2000 trinocular microscope

Trinocular inverted microscope for routine microbiology.

With the pre-set optical setup featuring LWD CCIS© Phase objectives, the microscope is immediately ready for inspecting various samples in cell culture flasks.

Effortless high-contrast microscopy without staining thanks to the proven phase contrast concept, while fixed Köhler illumination with interchangeable light source (HAL/LED) and Auto ON/OFF function enables rapid sample throughput. Specifications:

• Trinocular head, Siedentopf type, 360º rotatable

• Color Corrected Infinity Optical System (CCIS®)

• Inclination 45º diagonally

• Trinocular light distribution 100:0/20:80

• Interpupillary distance 48-75 mm

• Diopter adjustment on both eyepieces +/- 5 diopters

• Widefield eyepieces N-WF10X/20mm with diopter correction

• Quadruple revolver

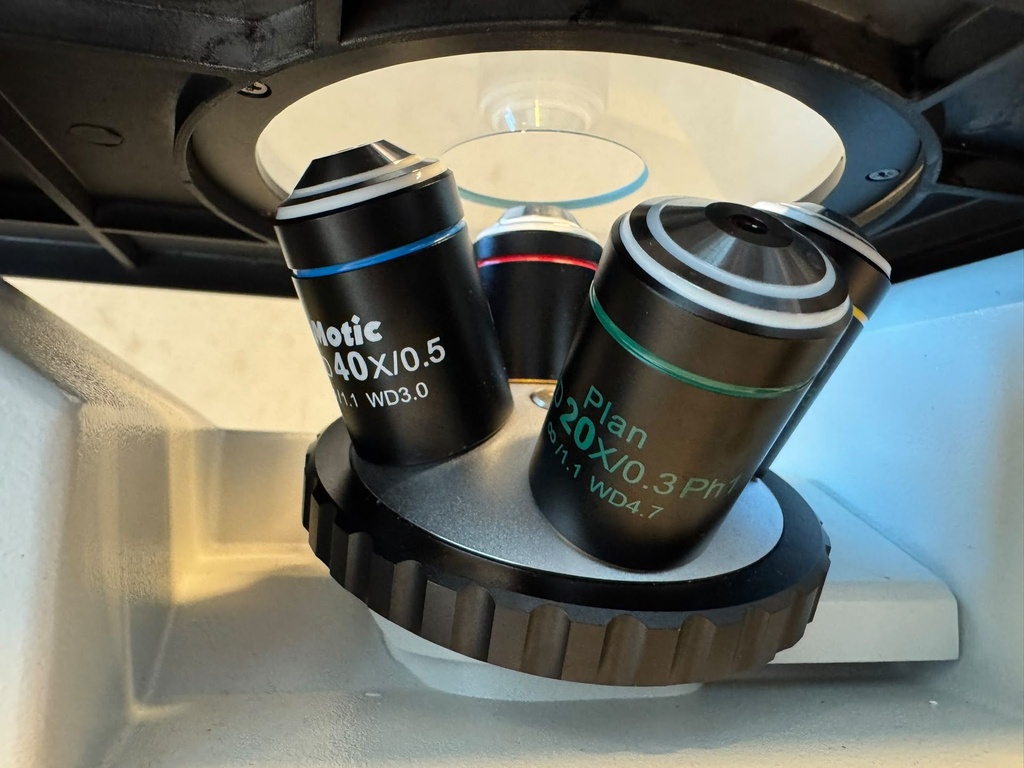

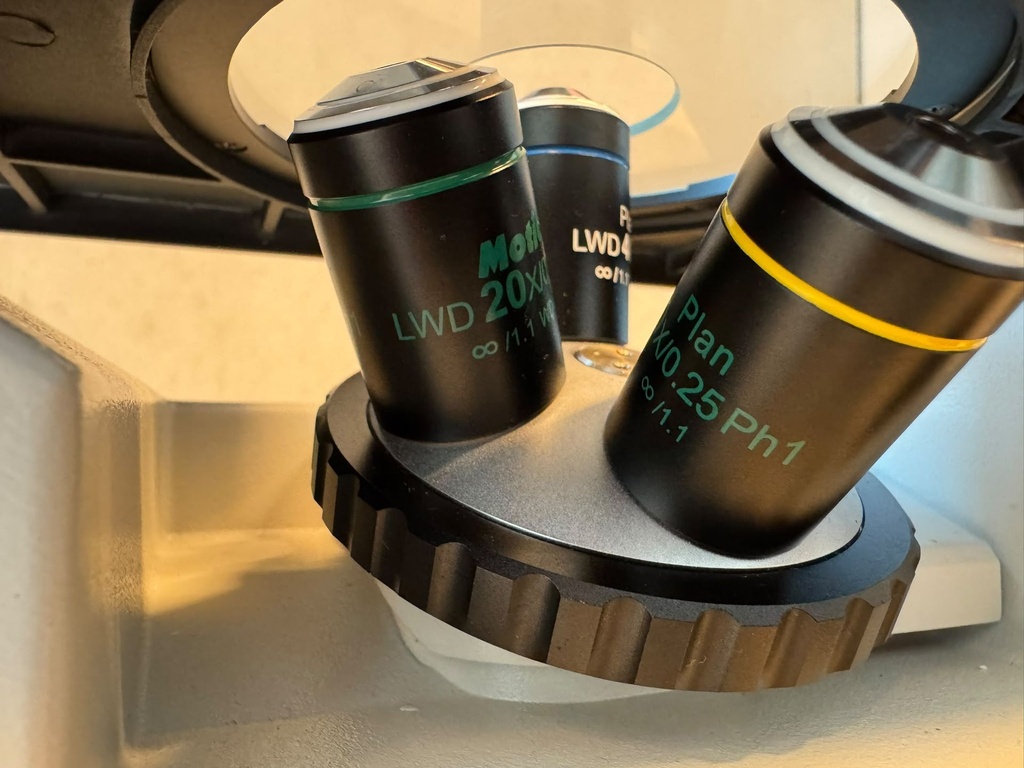

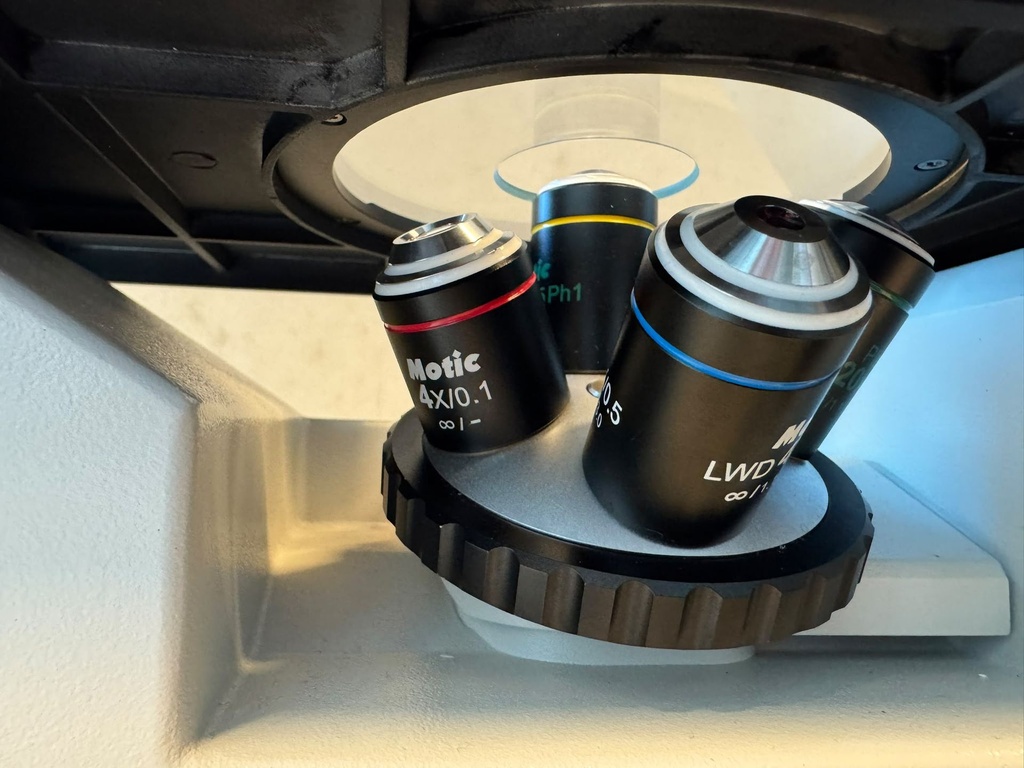

• Objectives CCIS® Plan Achromatic, DIN, 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), LWD 40X/0.50 (WD 3.0mm)

• Objective mounting thread W 4/5″ x 1/36″ (RMS standard)

• Inverted tripod

• Standard flat table with metal and glass inserts

• Table dimensions 200 x 239 mm

• ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder

• Iris diaphragm

• Coaxial coarse and fine focus system with adjustable tension adjustment

• Fine focus accuracy 2 µm

• Focus throw 8mm

• Free working distance without condenser 184 mm

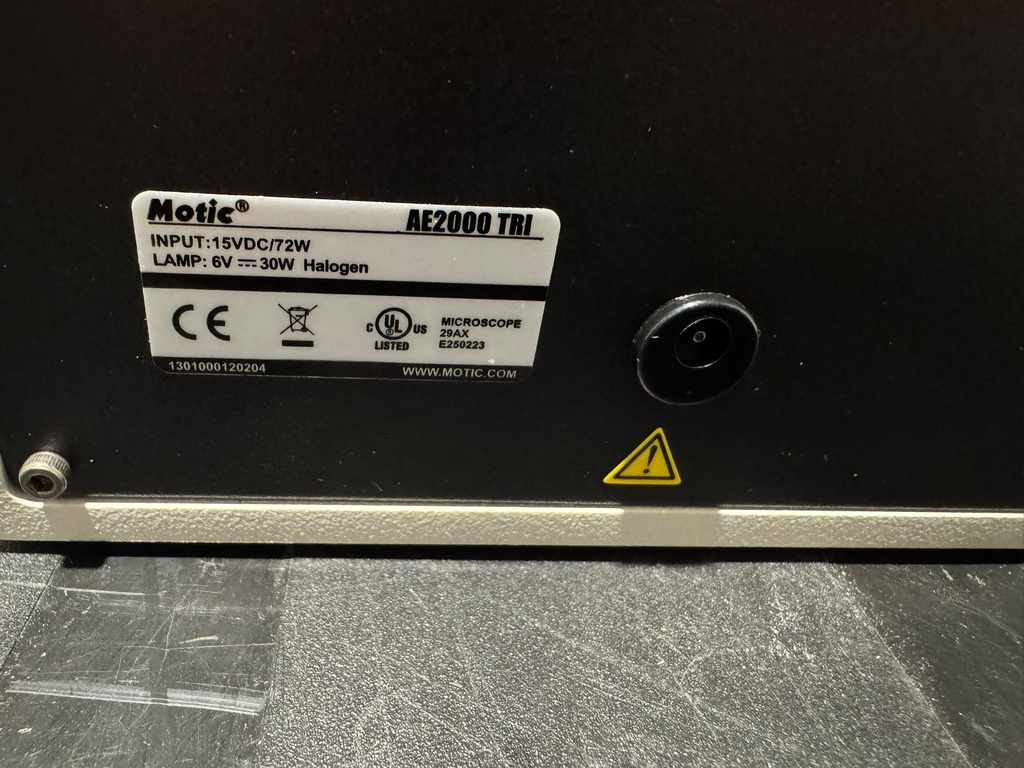

• Transmitted Quartz halogen lighting 6V/30W with intensity control

• Lighting interchangeability Quartz halogen 6V/30W or LED 3W

• Lighting Auto on/off

• External transformer

• Power supply 100-240V (CE)
