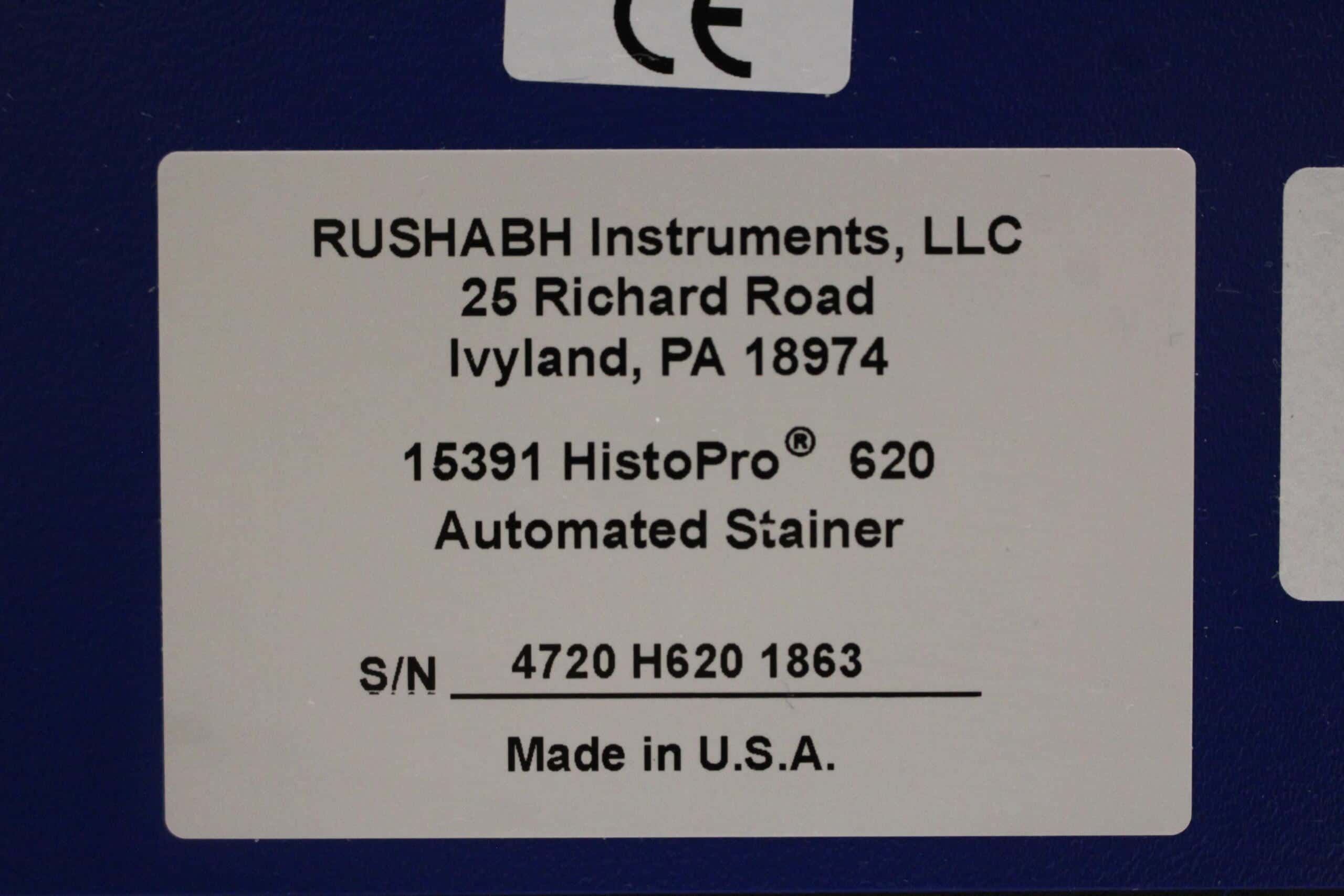

Rushabh Instruments HistoPro 620 Automated Stainer

The HistoPro 620 Automated Stainer is an automatic slide stainer used for staining slides to aid in diagnosis. It can be used in hematology and bacteriology laboratories for in vitro diagnostic use. The HistoPro 620 has nine user definable programs each containing up to 29 possible processing steps. An optional water bath can be used with the HistoPro 620 and should bem used in hematology unless a dedicated water line is available. This water bath can also be used in bacteriology (tap water desirable for bacteriology).

Slide carrier capacity: 20 slides

Available programs: 9 user programmable, 29 steps in each; 1 test program

Staining vessel capacity: 300 ml

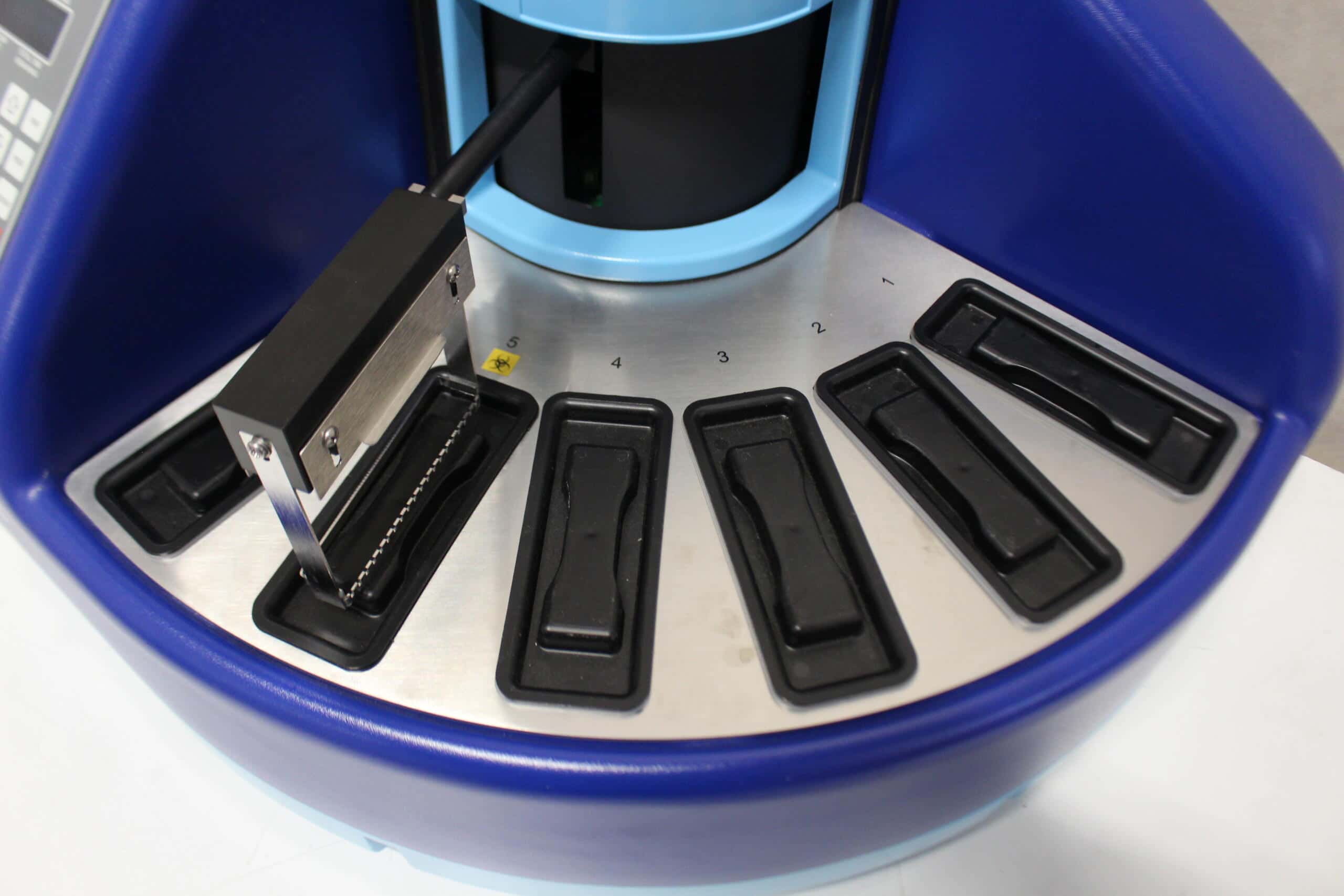

Available stations: 6 in total, 4 staining/reagent, 1 running wter rinse, 1 warm forced- air dry, or 6 staining/ reagent stations

Available program application time: 1 sec to 99 min, 59 sec per program step with 29 steps per program

Coverslip carrier capacity: 20 coverslips, 22 x 22 mm

Rinse station flow rate: application range 500 – 2000 ml/min

Dimensions (WxDxH): 530 x 450 x 410 mm

Weight: 13 kg
