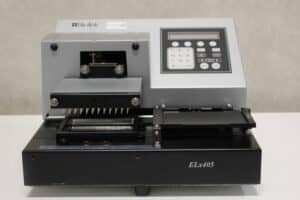

BioTek Elx50/8 Microplate Washer

The ELx50’s contains a powerhouse of washing capabilities unsurpassed in its class. The washer’s excellent dispense performance and evacuation efficiency supports 96-well plates washing.

Features:

·
Syringe drive fluid-delivery system for precise control over multiple fluid flow rates

·
96- and 384-well microplates

·
Patented Dual-Action wash manifold for independent control of dispense and aspiration tubes

·
Fully programmable onboard
software for customized assay requirements

·
Unique priming trough built
into removable microplate carrier for effortless priming and easy maintenance

·
Automatic buffer switching of
up to three wash buffers

·
Automatic liquid level sensing

Technical specifications:

Microplate types: all 96-well plates, 1 x 8 strips (8-channel)

Manifold type: 8-channel dispense/aspiration (8-channel)

Wash Cycles: 1 to 10

Volume Range: 25 to 3000 μL/well

Fluid Delivery: Internal positive displacement syringe pump

Buffer Selection: Optional switching of up to 3 wash buffers

Dispense Precision: ≤ 3% CV

Residual Volume: ≤ 2 μL/well

Onboard Software: 75 programs, program linking,  overflow / overfill protection

Soak Time: 1 to 600 seconds

Shaking: User-programmable speeds and timing

Sterilization: Chemical

Voltage: 220-240 V

Outer dimensions (W) x (D) x (H): 356 x 406 x 165 mm

Weight: 8.9 kg
