Axygen PlateMax Semi Automatic Plate Sealer

Axygen’s PlateMax Semi-Automatic Plate Sealer is ideal for the low-to-medium throughput laboratory that requires uniform and consistent sealing of microplates. Offering complete versatility, the PlateMax sealer will accept a full range of plates for PCR, assay or storage applications. It can be used to seal a wide range of plate heights. Sealing parameters are set and displayed via the user-friendly control panel and the sealing operation is automated to ensure consistent results.

Sealing temperature: Off, 100°C to 190°C (increments of 1.0°C)

Temperature accuracy: ±1.0°C

Temperature uniformity: ±1.0°C

Sealing time: 0.5 to 10 sec. (increments of 0.1 sec.)

Compatible plate materials: PP (Polypropylene), PS (Polystyrene)

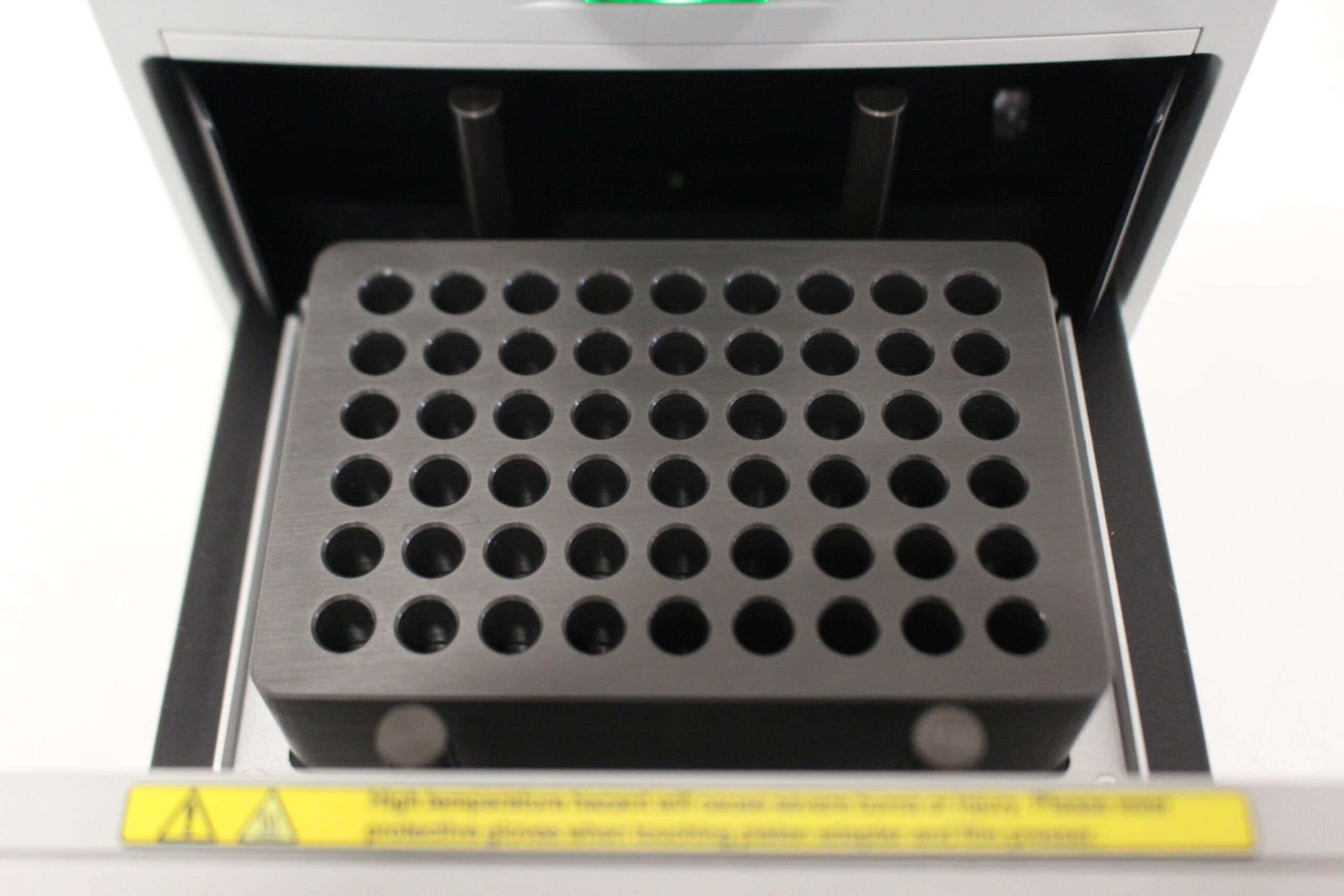

Compatible plate types: Standard assay plates, Deep-well storage plates, PCR plates: skirted, semi-skirted, non-skirted

Maximum plate height: 45 mm

Compatible sealing film types: Foil polypropylene laminate, Clear polyester-polypropylene laminate, Clear polymer, Thin clear polymer,  Foil laminate, Foil

Dimensions (WxDxH): 171 x 324 x 362 mm

Weight: 12 kg
