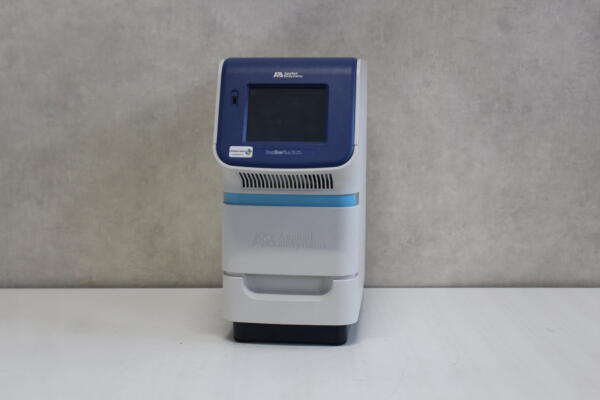

Applied Biosystems StepOnePlus Real-Time PCR System

 9.999,00 excl. tax

1 in stock

SKU: LM 13192 Category:

The StepOnePlus Real-Time PCR System is a 96-well Real-Time PCR instrument perfect for both first-time and experienced users. The StepOnePlus Real-Time PCR System can be setup in a variety of configurations and comes ready to use, out of the box, with intuitive data analysis and instrument control software. Utilizing robust LED based 4-color optical recording, the StepOnePlus Real-Time PCR System is designed to deliver precise, quantitative Real-Time PCR results for a variety of genomic research applications.

The StepOnePlus Real-Time PCR System utilizes a long-life LED-based optical system that can record fluorescence from FAM/SYBR Green, VIC/JOE, NED/TAMRA, and ROX dyes. This cost-effective, 4-color, 96-well system delivers precise, quantitative Real-Time PCR results and saves data from all filters in every run without depending on a computer or plate setup. It can discriminate between 2 populations of 5,000 and 10,000 template copies of a TaqMan assay with 99.7% confidence.

SNP Genotyping
Gene Expression Analysis
MicroRNA Expression
Protein Expression
Translocation Analysis
Gene Detection

Viral Load Analysis

Capacity: 1 x 96-well plate,12 x 8-tube strips,96 x 0.1 ml tubes
Detection Method: Primer-Probe Detection,SYBR
Dynamic Range: Linear Dynamic Range greater than 9 log units
Format: 0.1 ml tubes,8-tube strips,96-well plate
High Throughput Compatibility: Multiplexing
Optics: 4 emission filters,Blue LED excitation source,photodiode
Passive Reference Dye: No ROX,ROX (Pre-mixed),ROX (Separate Tube)
Peak Block Ramp Rate: 4.6°C⁄sec
Reaction Speed: Fast,Standard
Reaction Volume Range: 10-30 µl (Standard curve experiments: 40 µl in standard mode is validated)
Run Time: <2 hrs⁄run (Standard Mode),<40 min⁄run (Fast Mode)
Sample Ramp Rate: Fast mode: ± 2.2°C⁄sec,Standard mode: ± 1.6°C⁄sec
Sensitivity: 1 copy
Temperature Accuracy: 0.25°C (35 to 95°C) of display temperature
Temperature Range: 4 – 100°C
Temperature Uniformity: 0.25°C (35 to 95°C) of setpoint/display temperature
Thermal Cycling System: Peltier-Based System
Dimensions (W x D x H): 246 x 427  x 512 mm
Weight: 24 kg

Quote notes

Weight 0,0 kg

6 months


Used, in good condition


Thermo (Scientific)
