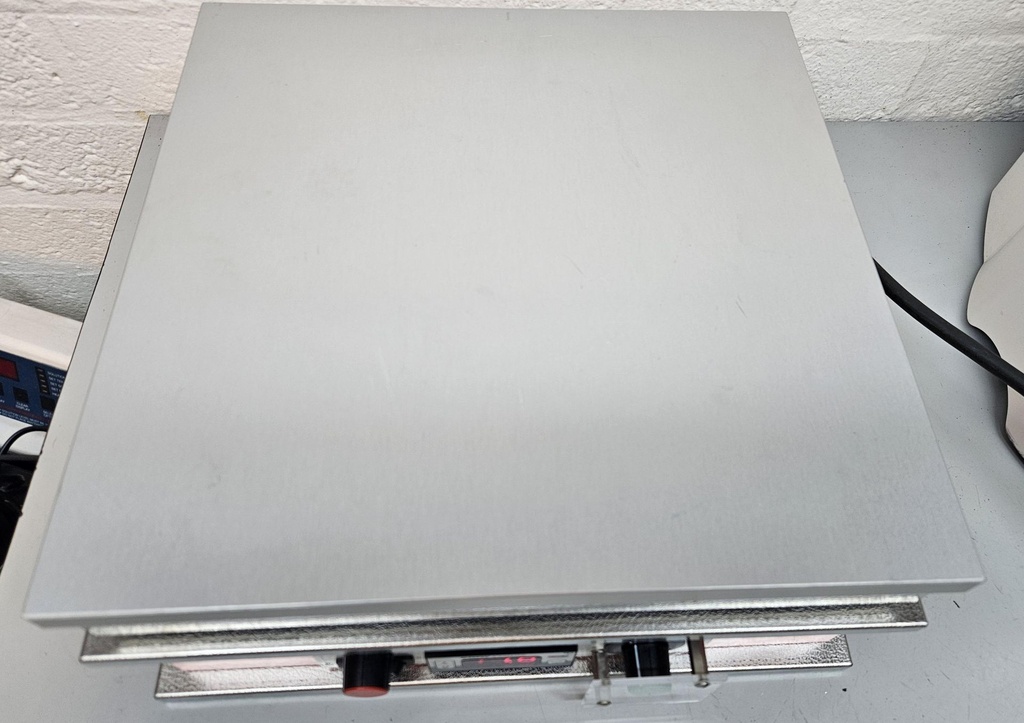

Harry Geistigkeit GmBH PZ35 Hotplate

Precision Hotplates for non-stop operation
The heating surfaces of the precision hotplates are composed of an efficient heat conducting aluminium alloy.
The surface is smooth, easy to clean, and anodized. The electrical long-term heating ensures that the temperature remains constant, even on the corners and edges.
Technical Specifications
Feature Specification
Heating Plate Material High-grade aluminium alloy, anodized
Plate Dimensions 350 x 350 mm
Temperature Range 20 to 300 °C
Temperature Stability ±0.1 K
Heating Power 2200 Watts
External Dimensions 365 x 365 x 155 mm
Weight Approx. 14 kg
Supply Voltage 230 V / 50-60 Hz
Description

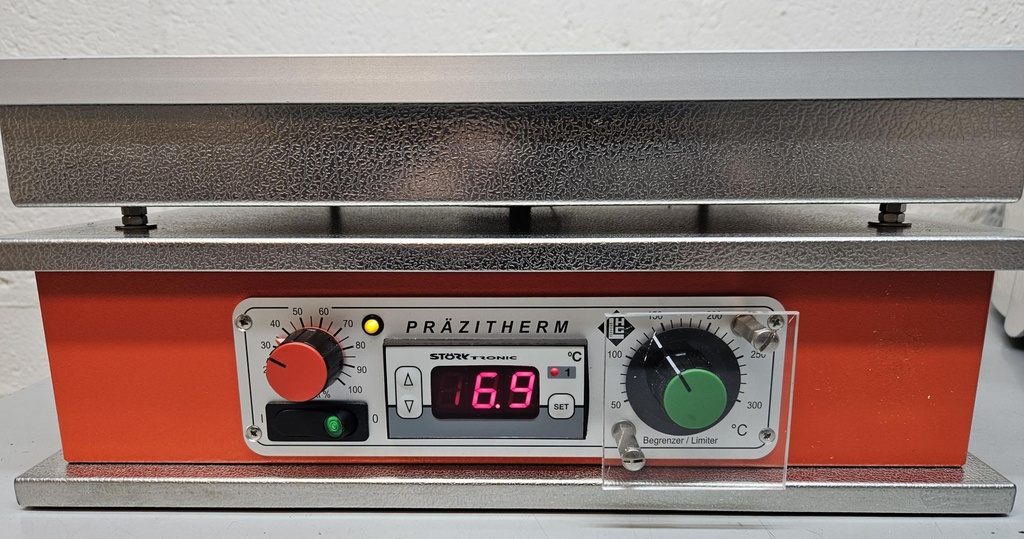

Precision Control: Equipped with a microprocessor controller that allows digital temperature setting in 0.1 °C increments.
Uniformity: The solid aluminium construction ensures excellent heat distribution across the entire surface.
Safety Features: Includes an adjustable overheating protection (50 to 300 °C) and a residual heat indicator to prevent burns.
Durability: The housing is made of high-quality stainless steel (No. 1.4301), with a central section chemically resistant and painted for long-term lab use.
Performance: The “asymmetric” long-term heating system ensures that the edges of the plate maintain the same temperature as the center.
