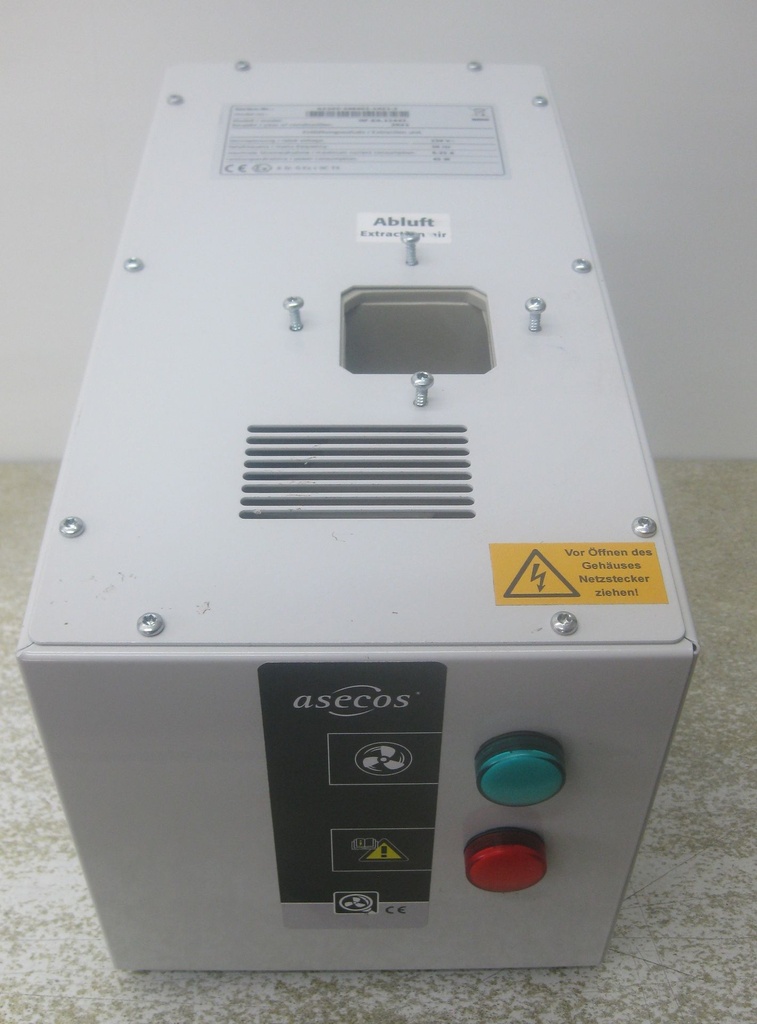

Asecos Top-mounted Ventilation Unit

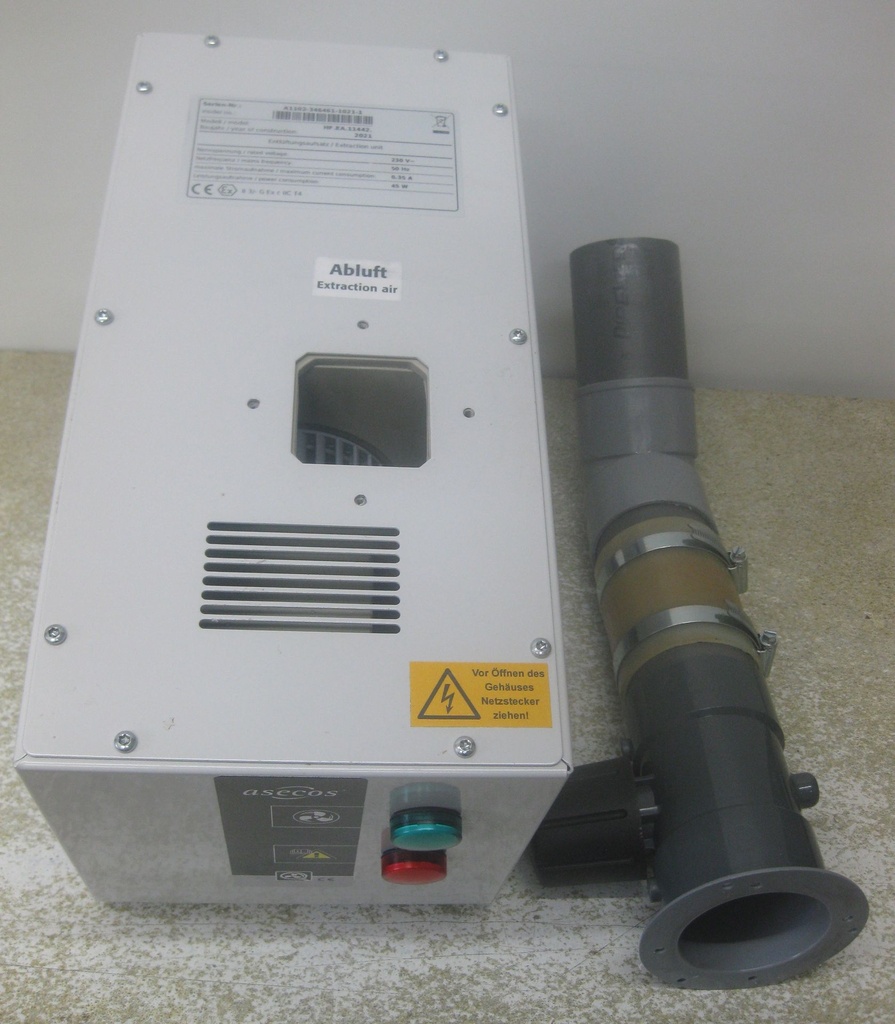

An Asecos top-mounted ventilation unit for the extraction of fumes from safety cabinets and similar equipment. Equipped with pressure measurement and duct connection. Outlet: 75 mm with valve.

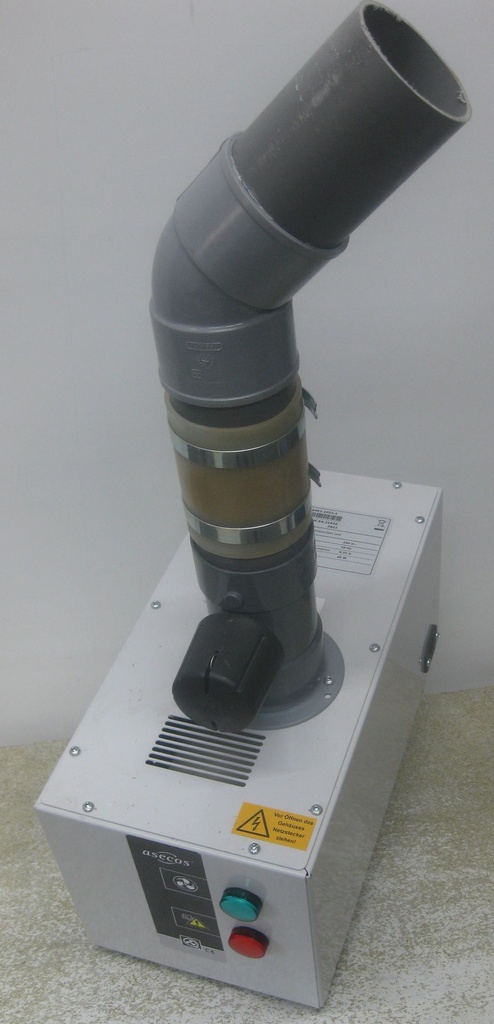

With various connection pieces. WxDxH: 200 x 400 x 200 mm.

The Asecos top-mounted ventilation unit is designed for the safe extraction of vapors and gases from hazardous materials safety cabinets. These units are used in laboratories, chemical storage rooms, and industrial environments where flammable or hazardous substances are stored. Thanks to its quiet operation and ATEX-compliant design, the ventilation unit is suitable for direct application in the workplace.

The top-mounted ventilation unit can be mounted on top of a safety cabinet or on the wall and ensures continuous air exchange inside the cabinet. Depending on the model, the unit is available with or without flow monitoring and a potential-free alarm contact. Key features

Suitable for safety cabinets for flammable substances

Very quiet operation (approx. 35 dB)

ATEX and CE compliant

Supplied ready to plug in

Suitable for a minimum air exchange rate of 120x per cabinet

Available with flow monitoring

Compact design for cabinet or wall mounting

Epoxy coated sheet steel

Technical specifications

Specification Value

Brand Asecos

Type Ventilation unit

Application Safety cabinets / fire safety storage

Dimensions (W × D × H) 200 × 400 × 200 mm

Power supply 230 V

Frequency 50 Hz

Power 35 – 45 W

Maximum current 0.35 A

Speed ​​2400 – 2450 rpm

Noise level ± 35 dB(A)

Connection flange Ø 75 mm

Material Sheet steel with epoxy coating

ATEX classification CE EX II 3/- G Ex ic nA IIC T4

Flow monitoring Optional
