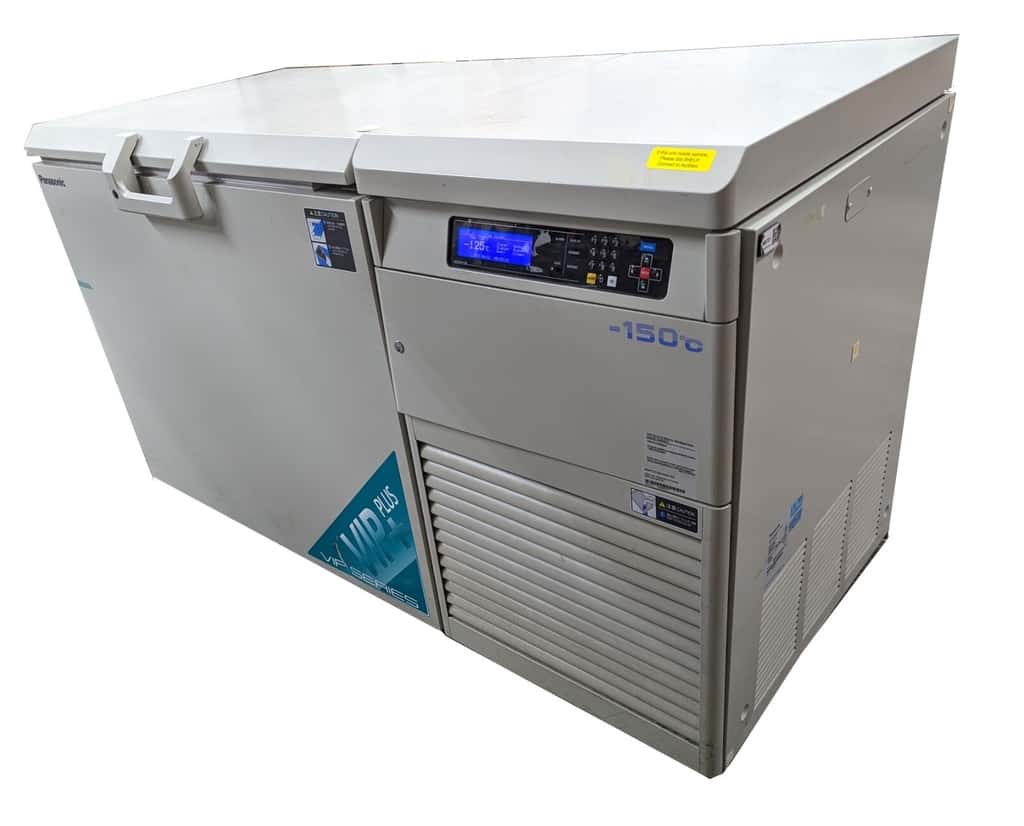

Sanyo MDF-C2156VAN VIP plus -150 Ultra Low Freezer

EXTERNAL DIMENSIONS W x D x H (1730 x 765 x 1010 mm)
INTERNAL DIMENSIONS W x D x H (760 x 495 x 615 mm)
EFFECTIVE CAPACITY 231 L
INSULATION Rigid foamed-in-place and VIP Plus vacuum insulation panels
ACCESS PORT 1: side table, Inner diameter 1.5 in (40 mm)
NET WEIGHT 318kg
COMPRESSOR (1) 1100 W, High-stage hermetic type, (1) 1100 W, Low-stage hermetic type
EVAPORATOR High-stage cascade condenser type, Low-stage tube on sheet type
REFRIGERANT High-stage R407D, Low-stage HFC mixed refrigerant
TEMPERATURE CONTROL RANGE -125ºC to -150ºC (ambient temperature 30ºC, no load)
ALARMS High temperature, low temperature, power failure, door alarm, filter check. Battery changed in 2025
COOLING PERFORMANCE -150ºC center of the chamber (ambient temperature 30ºC, no load)

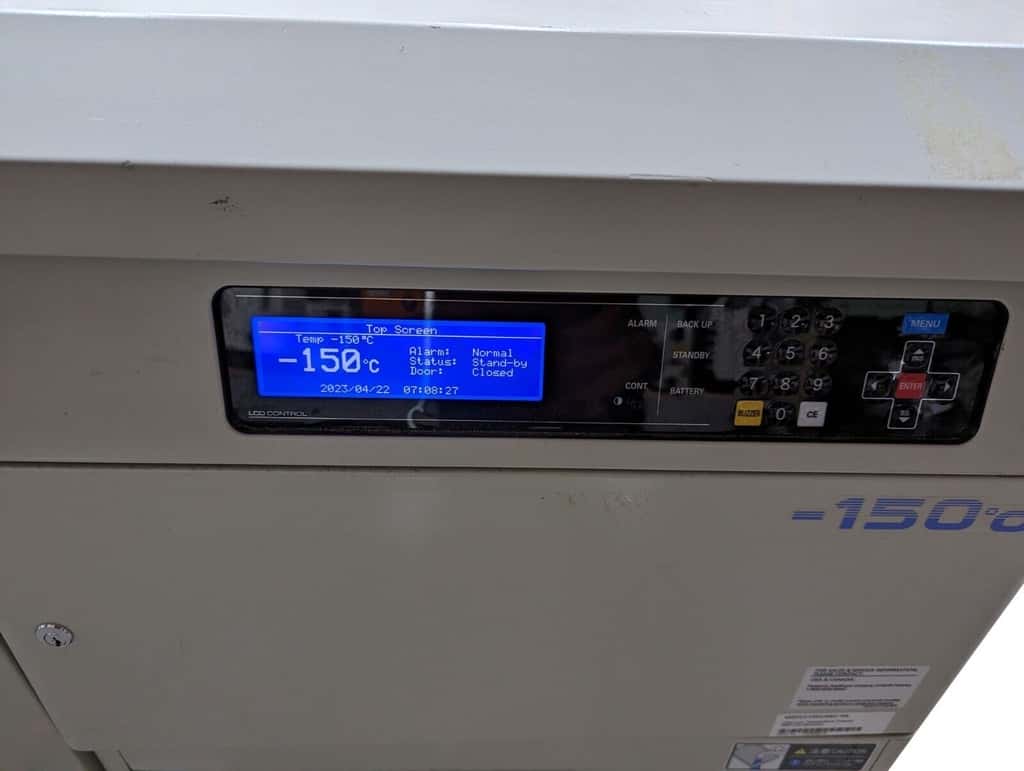

TEMPERATURE CONTROL SYSTEM Microprocessor control system
AREA FOOTPRINT 1.15 m2
DATA MANAGEMENT Optional with LabAlert Monitoring System
ENERGY CONSUMPTION AT 23oC AMBIENT 40.8 KWh/day
SOUND LEVEL 51 dB(A) [background noise 20 dB(A)]

Model: MDFC2156VANCPA

Effective Capacity: 231L

Rated Voltage: AC 220 V

Rated Frequency: 60 Hz

Amperage: 8.0A

Power Consumption: 1700W

Plug type: NEMA 6-15P Plug, requires NEMA 6-15R receptacle

Serial No.: 12050015

Weight: 319kg

Freezer can be connected to liquid nitrogen, we have not as we did not find it necessary.
