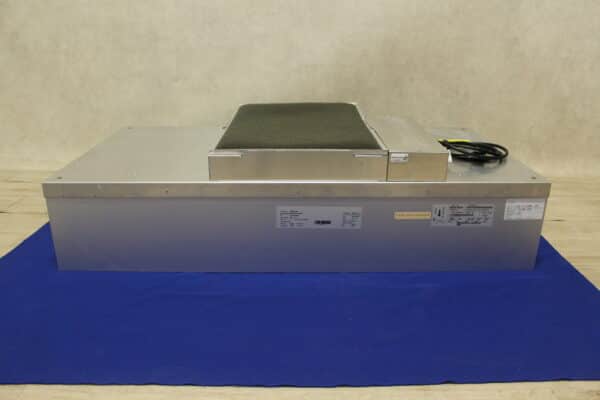

Envirco MAC 10 Fan Filter Unit

The Envirco MAC 10 fan filter unit, was the first (FFU) to combine low sound, low watts and a low profile. Measuring only 51 dBA, the MAC 10 Original Standard (600 mm x 1210 mm) provides one of the lowest sound levels of any FFU in the industry. Running at only 310 watts at 90 fpm, the unit uses less energy than traditional FFUs, lowering operating costs. The MAC 10 Original maintains a low profile, measuring less than 330 mm.

MAC 10 Original comes standard with the filter integral with the unit housing, requiring the unit to be removed from the ceiling grid to replace the filter. The RSR unit has the filter sealed to the unit using the knife edge/gel seal construction, allowing the filter to be replaced from the roomside. The RSRE unit has the added feature of allowing the motor blower and filter to be replaced from the roomside.

Low sound, low watts, low profile, and low operating costs.

Three speed switch features low, medium, and high settings; standard on all 2 ft x 4 ft units

Solid state speed controller standard on 2 ft x 2 ft, 2 ft x 3 ft, and all RSR units.

Forward-curved centrifugal fan.

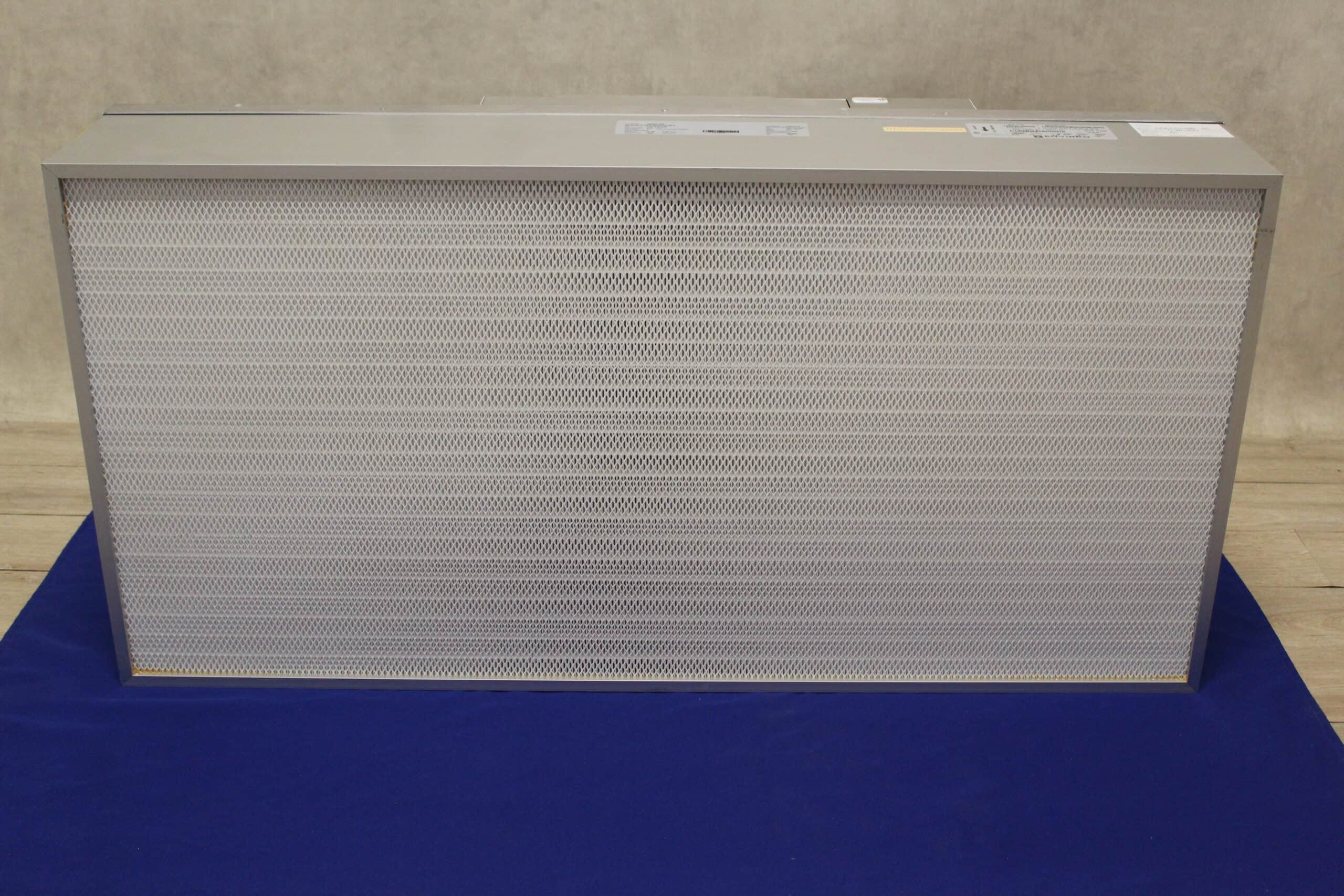

High Efficiency Particulate Air (HEPA) UL900 Filter: 99.99% efficient at 0.3 Micron.

Snap-in prefilter allows for easy replacement and maintenance.

Walkable Plenum (excluding prefilter), rated at 250 lbs.

Mill finished aluminum exterior.

Tested to IEST recommended standards.

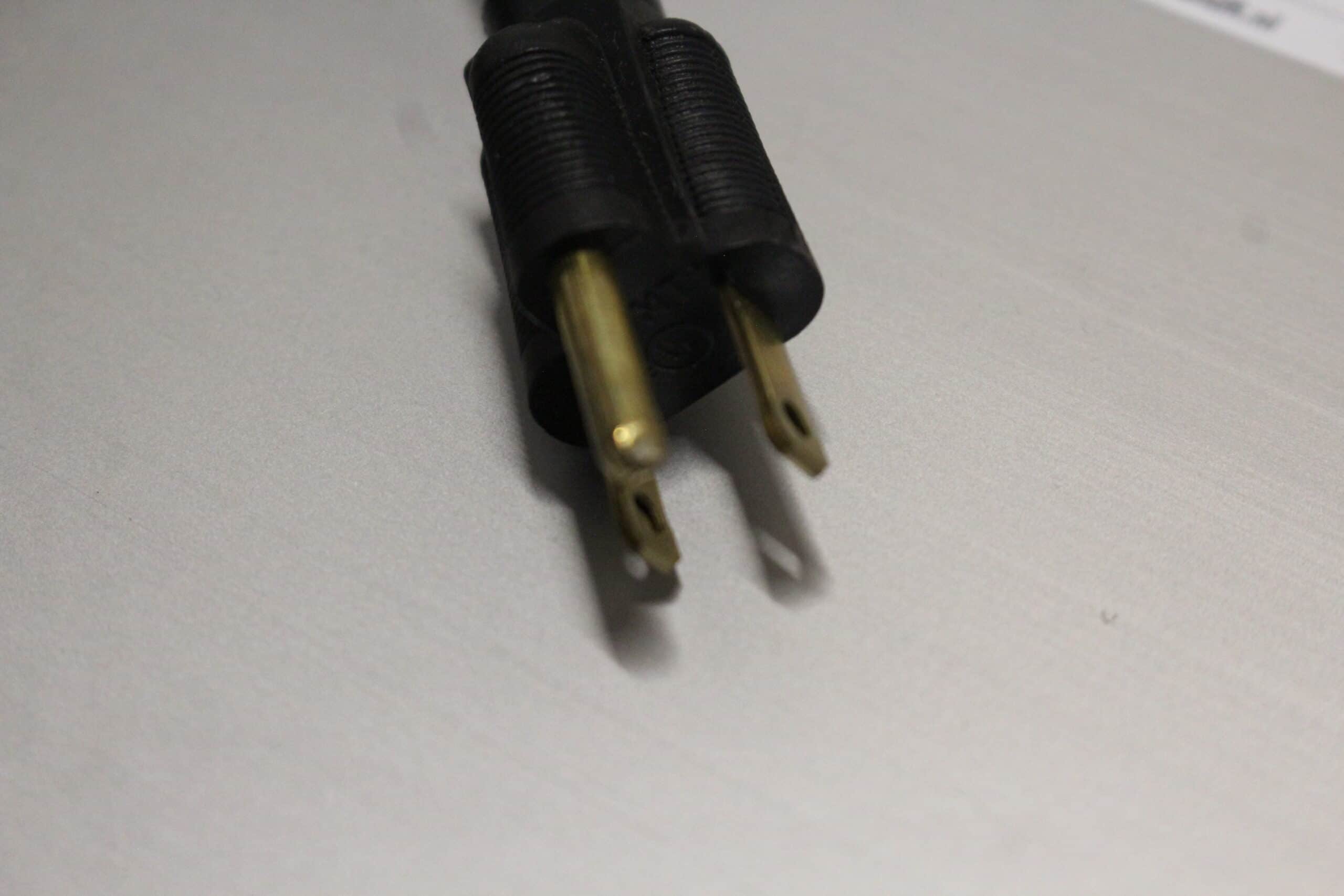

Caution this is a 110 Volt instrument.
